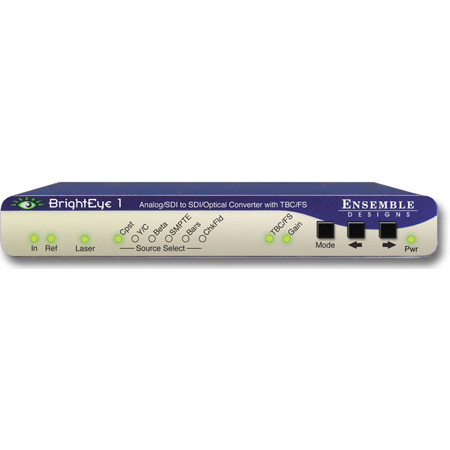

Ensemble Designs BrightEye 1 Analog/SDI - SDI/Optical Converter w/TBC

ITEM #: ENDE-BE1 MFG #: BE1

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,600.00

Our Price:

$1,520.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    BE1 - Overview

    BrightEye 1 is a comprehensive solution to signal acquisition. With analog component, analog composite S-Video (Y/C), and SDI video inputs, it can take on any video source. The built-in Time Base Corrector/Frame Synchronizer provides a rock steady output N even with marginal inputs. The reference input is used to genlock the converter output to house reference such as color black.

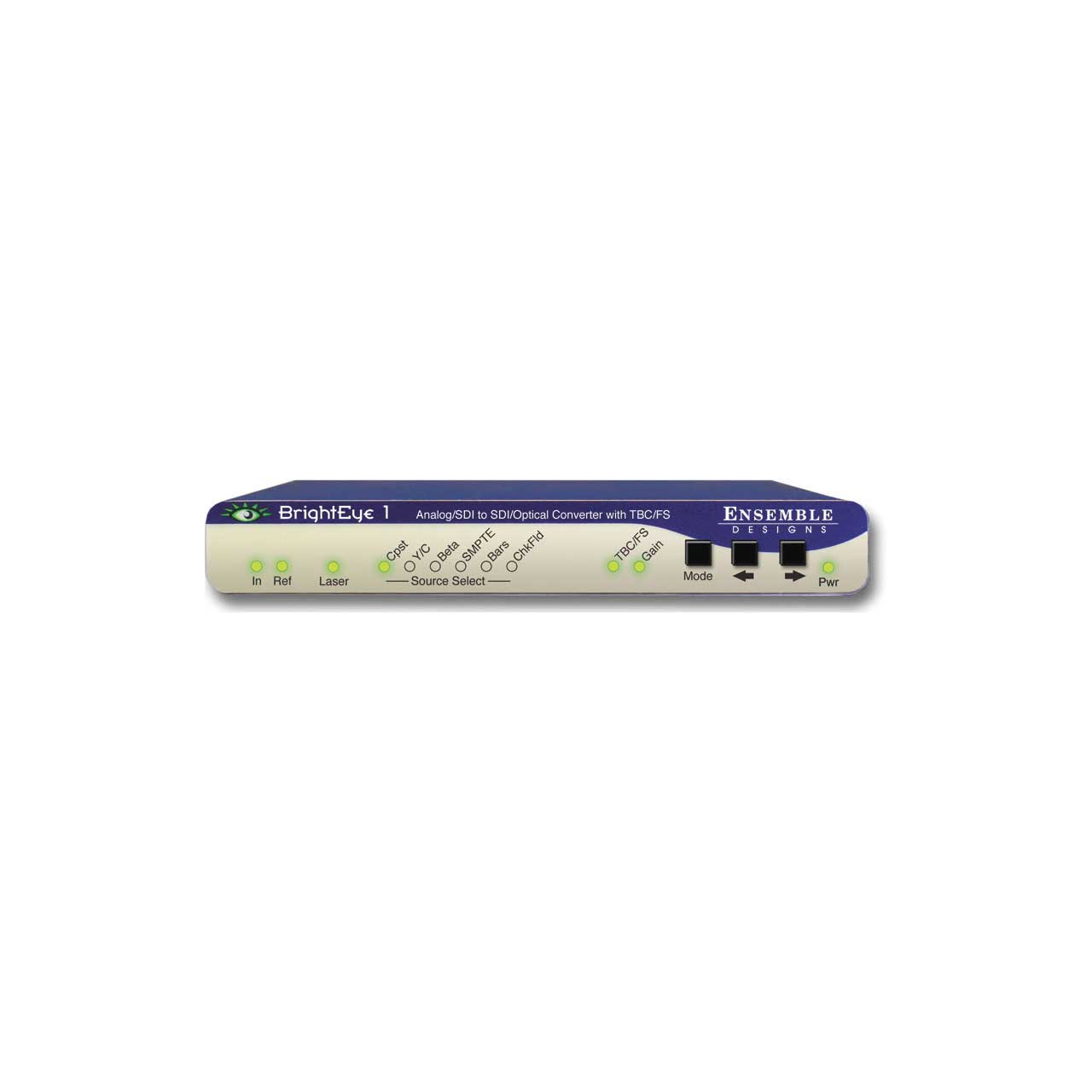

    Front panel controls select input source and format and adjust video gain. Video levels can be adjusted through BrightEye PC.

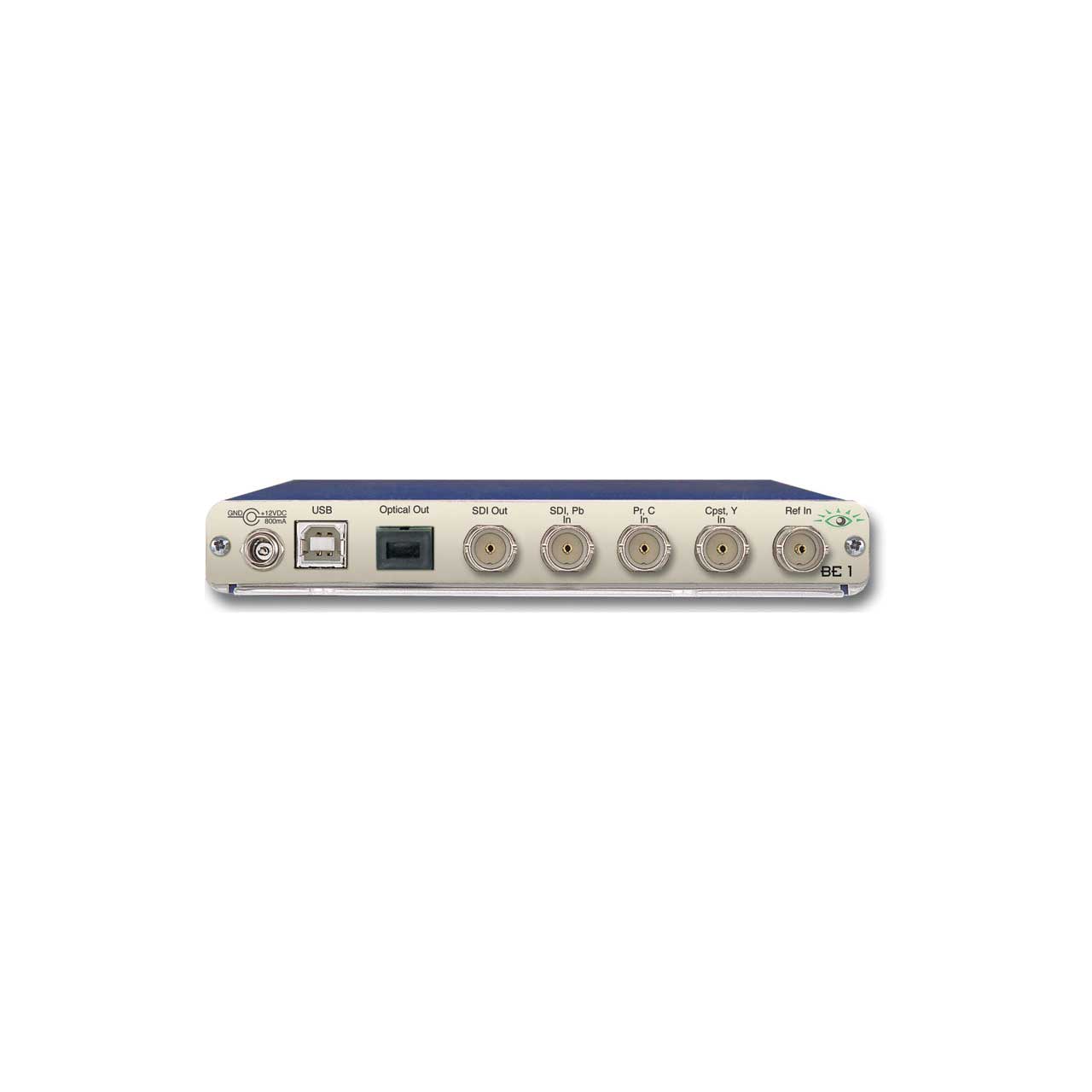

    Simultaneous SDI (electrical) and Optical outputs are provided, so you can deliver the signal just about anywhere. Both Color Bars and the SDI Checkfield (Pathological) test patterns are included to facilitate transmission path testing.

    Power supply is included.

    • Features:

      • Use with cameras, satellite receivers and VHS decks
      • Analog and SD SDI input
      • SD SDI and optical output
      • TBC and frame sync
      • 12 bit processing
      • Passes embedded audio

    • Specifications:

      • Serial Digital Input
      • Number One
      • Signal Type 270 Mb/s SD Serial Digital
      • (SMPTE 259M)
      • Impedance 75 U
      • Return Loss >15 dB
      • Max Cable Length 300 meters
      • Automatic Input Cable Equalization

        Analog Input
      • Number One
      • Type Beta/SMPTE, Y, Pr, Pb
      • NTSC, PAL Composite
      • NTSC, PAL S-Video
      • Impedance 75 U
      • Return Loss >40 dB
      • Input DC +/-1 volt DC
      • Input Hum <100 mV

        Serial Digital Output
      • Number One
      • Type 270 Mb/s SD Serial Digital
      • (SMPTE 259M)
      • Delay < 90 Sec
      • Impedance 75 U
      • Return Loss >15 dB
      • Output DC None (AC coupled)

        Optical Output
      • Number One
      • Type 270 Mb/s SD Serial Digital
      • (SMPTE 259M)
      • (Optical equivalent of 259M)
      • Wavelength 1310 nm (non-CWDM)
      • (1550 non-CWDM by special order)
      • Power -7 dBm
      • Maximum Cable Length 20 km (For greater distances, or
      • higher power and larger loss budgets,
      • please contact the factory)
      • Fiber Type Single Mode
      • Multi-mode compatible with
      • attenuation at transmit end
      • Connector SC

        Analog to SDI Performance
      • Bit Resolution 12 bit input quantization
      • 4 x oversampling
      • Signal to Noise >62 dB, weighted
      • Frequency Response
      • Composite and Y ±0.1 dB, 0 to 5.5 MHz
      • Pr, Pb ±0.1 dB, 0 to 2.75 MHz
      • Minimum Delay 90 Sec

        Reference Input
      • Number One
      • Type 1 V P-P Composite Video, PAL or NTSC
      • Impedance 75 U
      • Return Loss >40 dB

        General Specifications
      • Size 5.63" W x 0.8" H x 5.98" D
      • (143 mm x 21 mm x 152 mm)
      • including connectors and flange
      • Weight 14 oz
      • Power 12 volts, 7 watts
      • (100-230 VAC modular power supply)
      • Temperature Range 0 to 40° C ambient (all specs met))
      • Relative Humidity 0 to 95%, non-condensing
      • Altitude 0 to 10,000 ft.
