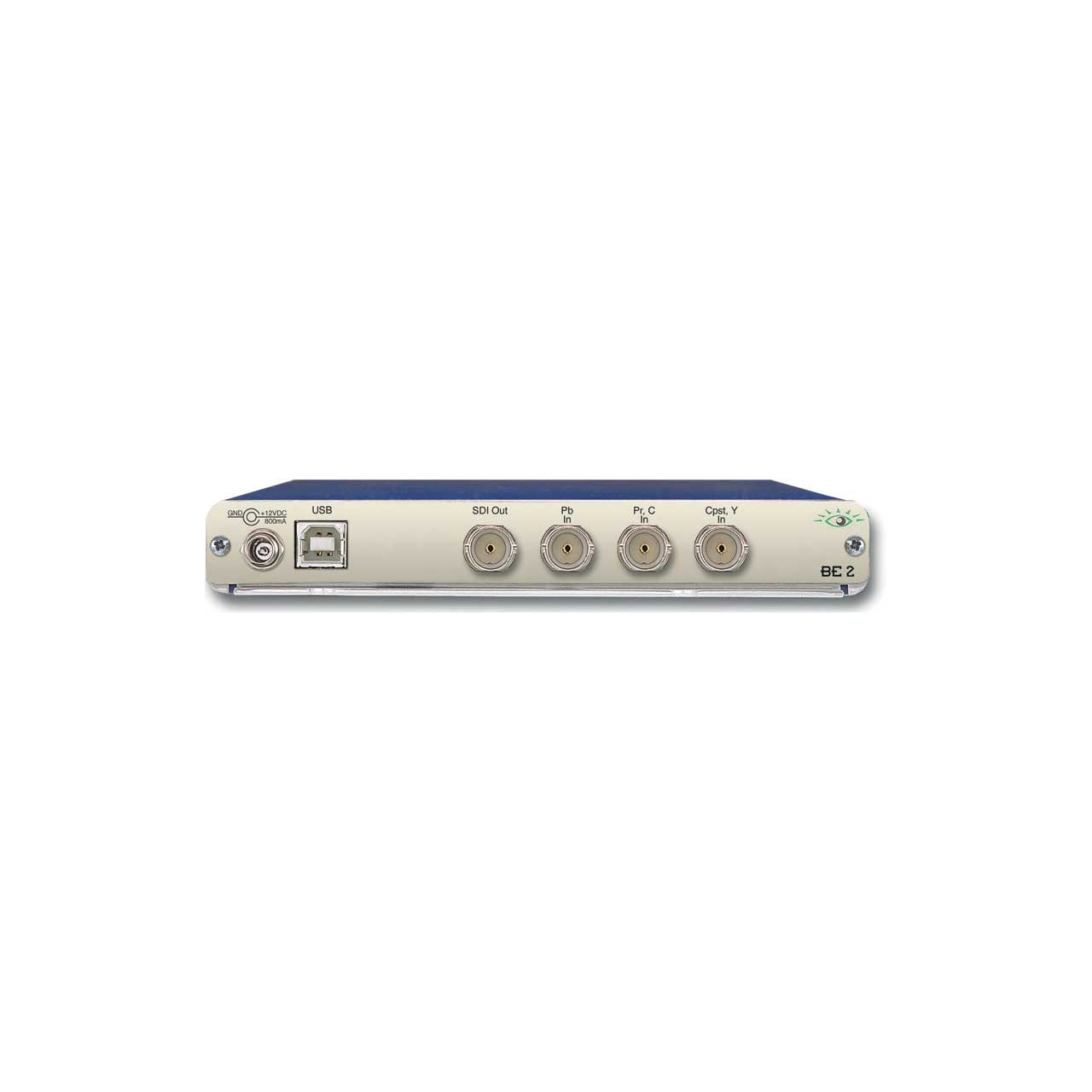

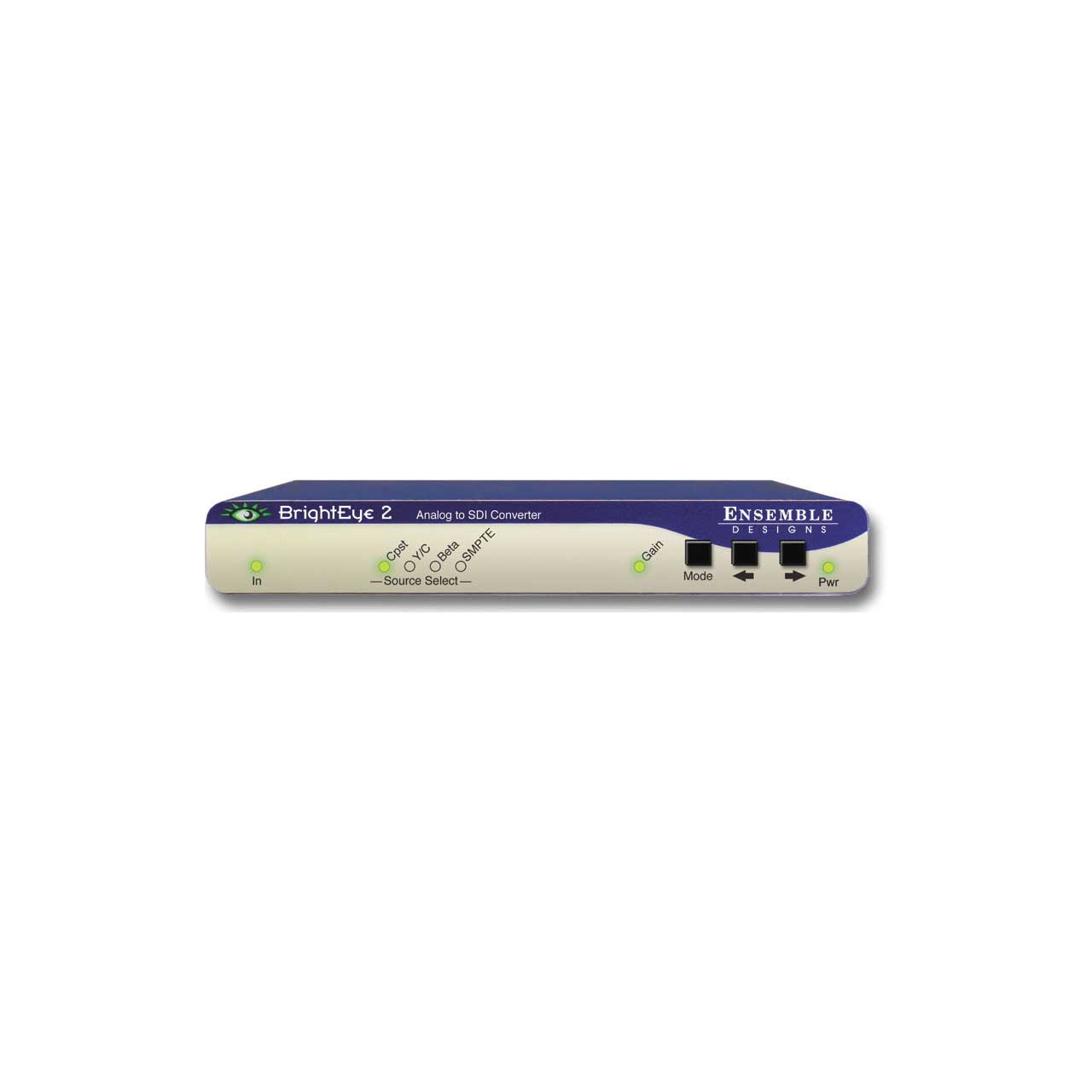

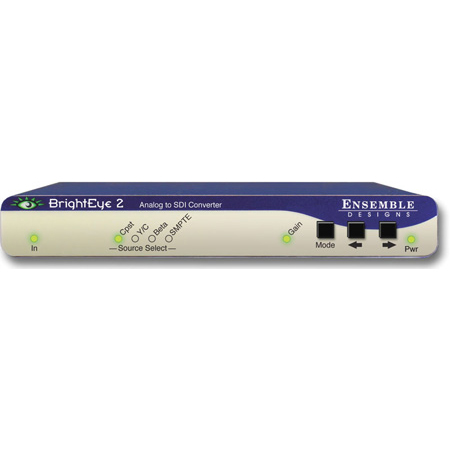

Ensemble Designs BrightEye 2 Analog to SDI Converter
  • Ensemble Designs BrightEye 2 Analog to SDI Converter
  • Ensemble Designs BrightEye 2 Analog to SDI Converter

Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BrightEye 2 Analog to SDI Converter

Manufacturer: Ensemble Designs

Item #: ENDE-BE2   •   MFG #: BE2



List Price:$750.00
Our Price:$712.50

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





BrightEye 2 provides uncompromised analog to digital video conversion of component and composite video. Analog inputs are digitized at 12 bits of resolution with 4x oversampling. Composite video is processed through an adaptive comb filter decoder. PAL / NTSC input detection is automatic. Input selection and gain adjustment is made from the front panel. A status display provides an input presence indication. Video levels can be adjusted through BrightEye PC.

Supporting both Beta and SMPTE component, composite, and Y/C formats, BrightEye 2 adapts to many conversion needs.

Use BrightEye 2 to digitize analog VTRs and cameras.

Power supply is included.


  • Features

    • Use with VTRs and cameras
    • Composite and S-Video input
    • Component input
    • SD SDI output
    • 12 bit processing

  • Specifications

    • Analog Input
    • Number One
    • Type Beta/SMPTE, Y, Pr, Pb
    • NTSC, PAL Composite
    • NTSC, PAL S-Video
    • Impedance 75 U
    • Return Loss >40 dB
    • Input DC +/-1 volt DC
    • Input Hum <100 mV

      Serial Digital Output
    • Number One
    • Type 270 Mb/s SD Serial Digital
    • (SMPTE 259M)
    • Delay < 90 Sec
    • Impedance 75 U
    • Return Loss >15 dB
    • Output DC None (AC coupled)

      Analog to SDI Performance
    • Bit Resolution 12 bit input quantization
    • 4 x oversampling
    • Signal to Noise >62 dB, weighted
    • Frequency Response
    • Composite and Y ±0.1 dB, 0 to 5.5 MHz
    • Pr, Pb ±0.1 dB, 0 to 2.75 MHz
    • Delay 90 Sec

      General Specifications
    • Size 5.63" W x 0.8" H x 5.98" D
    • (143 mm x 21 mm x 152 mm)
    • including connectors and flange
    • Weight 14 oz
    • Power 12 volts, 5 watts
    • (100-230 VAC modular power supply)
    • Temperature Range 0 to 40° C ambient (all specs met)
    • Relative Humidity 0 to 95%, non-condensing
    • Altitude 0 to 10,000 ft.
