If a tree falls in the woods.... Ensemble Design will be there to help you capture it in all it's High Definition glory!

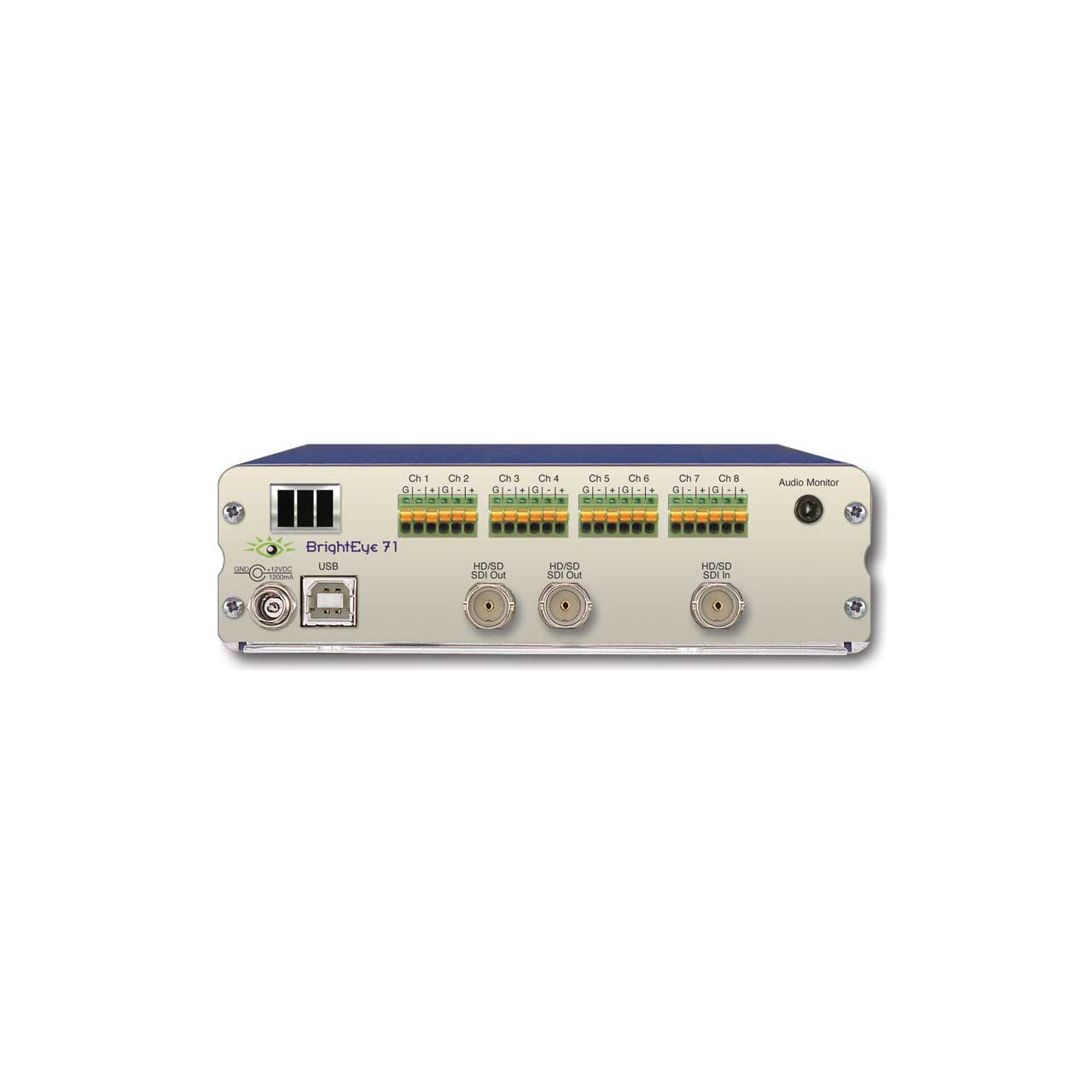

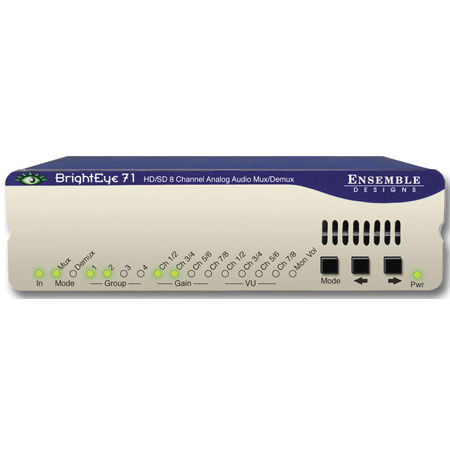

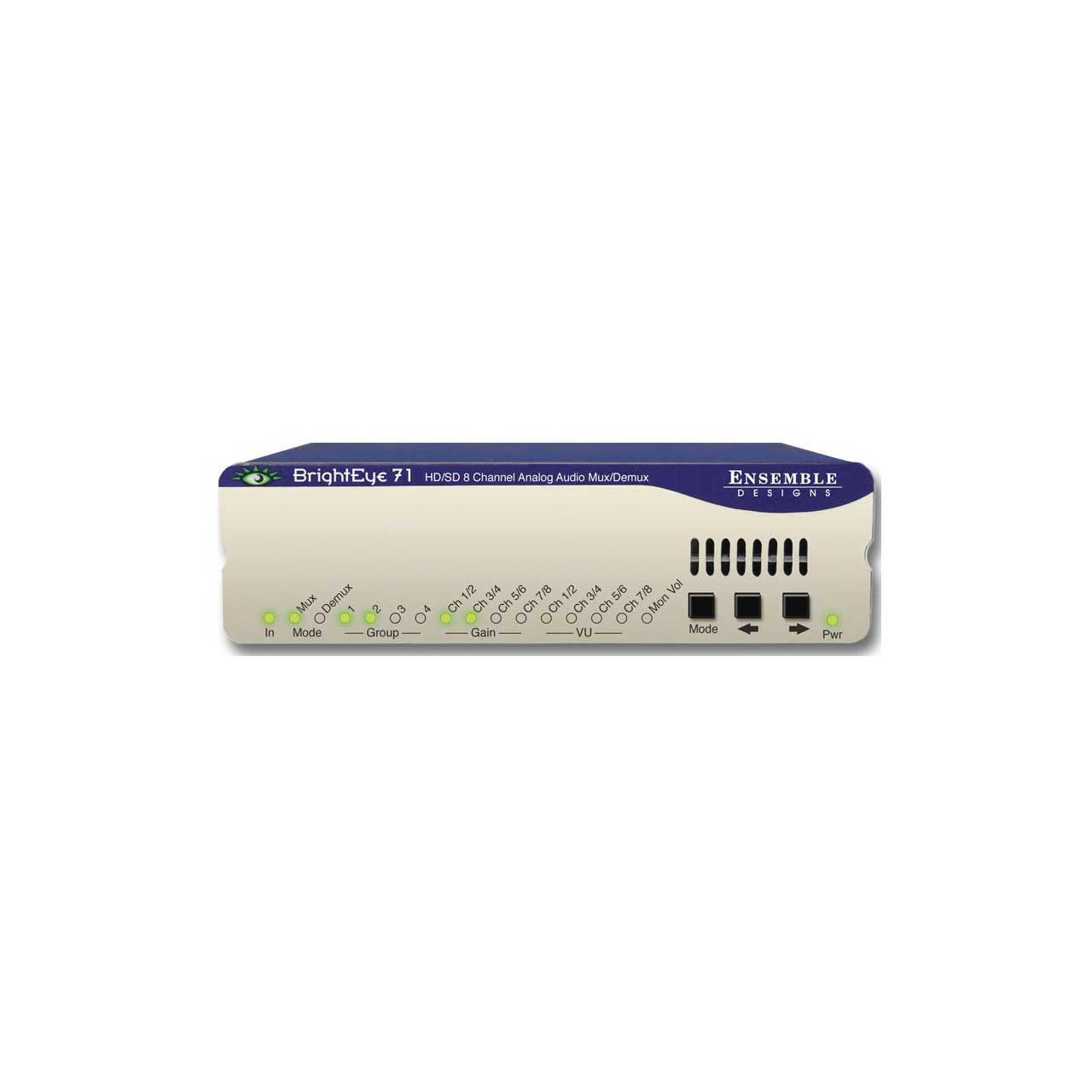

The BrightEye 71 is a dual rate eight channel analog audio embedder or disembedder for 1.5Gb/s high definition video signals or for 270Mb/s standard definition signals. The analog audio ports automatically configure as inputs or outputs depending if the module is configured as mux or demux.

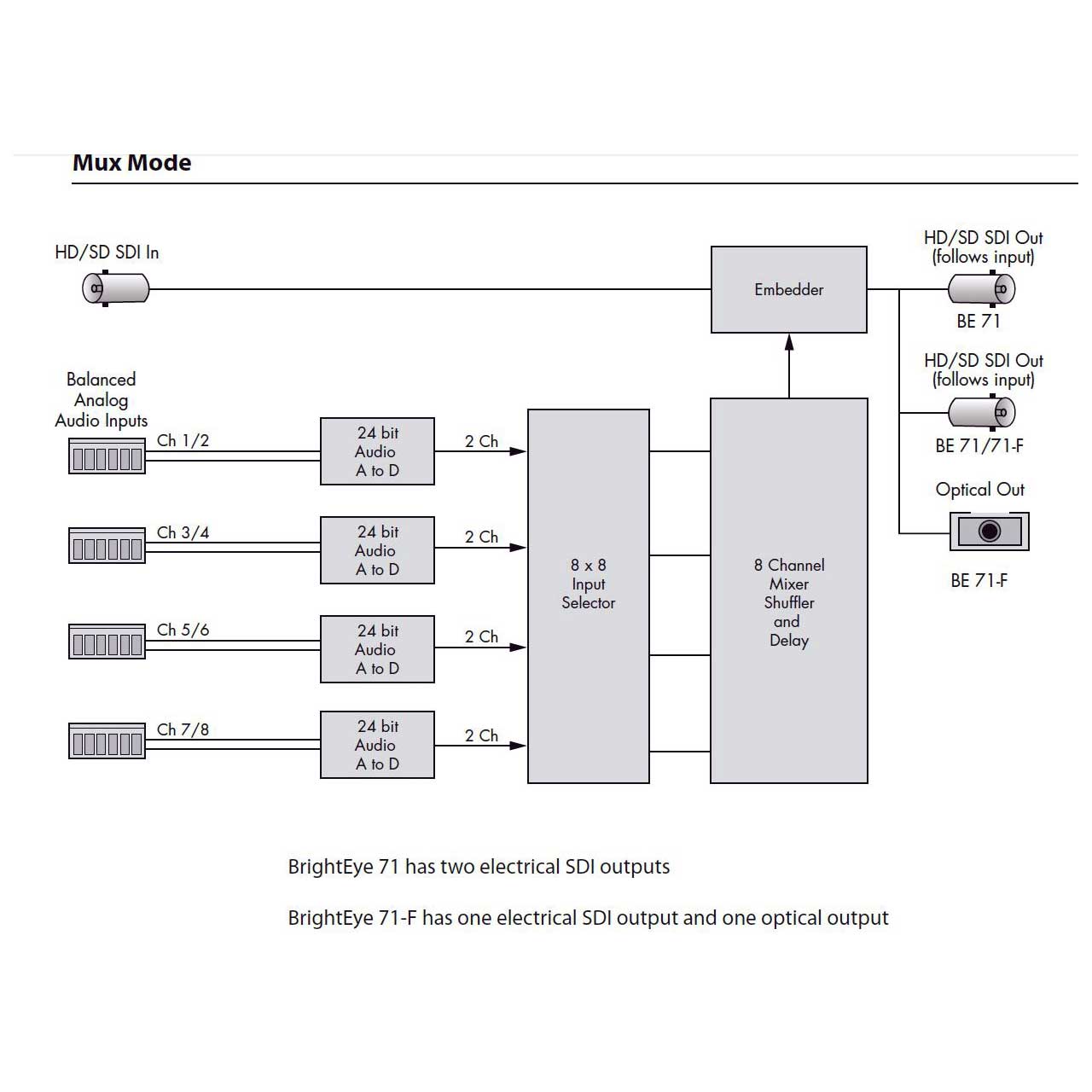

When configured as a multiplexer, the BrightEye 71 has one serial digital video input and eight analog audio inputs. The audio streams are embedded into the video stream. The output of the module is a digital stream that contains the original video signal and four analog audio pairs.

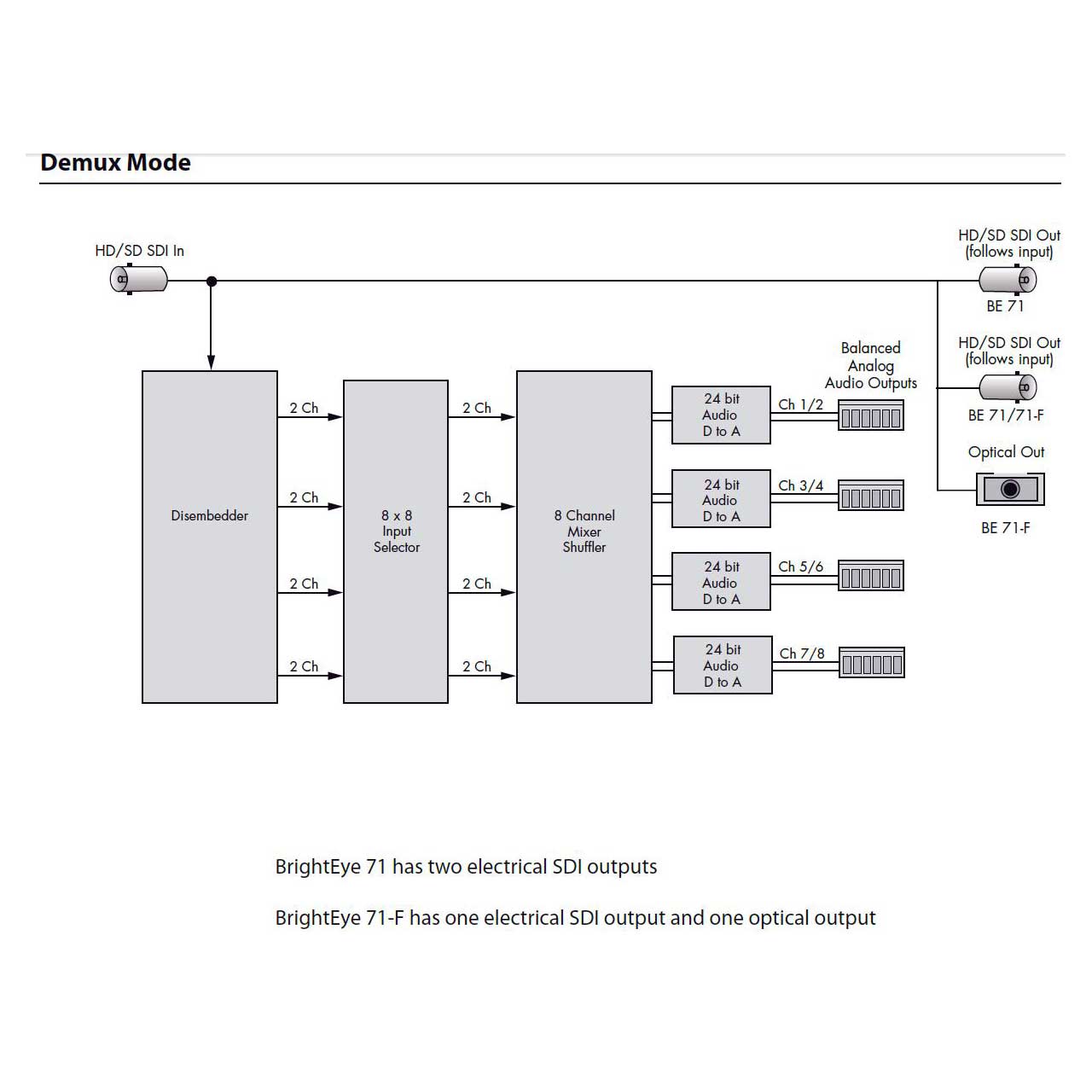

When configured as a demultiplexer, audio signals present in the incoming video signal are extracted and delivered as analog audio.
The BrightEye 71 includes an eight channel audio mixer with channel swap and shuffle capability that allows you to completely re-arrange and re-mix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second.
Order the BrightEye 71-F if you need an optical output. The 71-F sports a Singlemode Simplex (1 channel) SC connector.(Multi-mode compatible with attenuation at transmit end)
Power supply is included.
