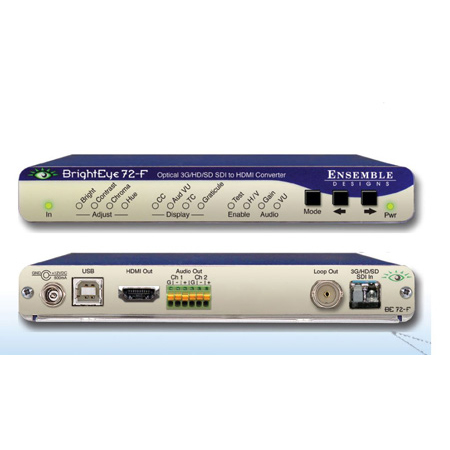

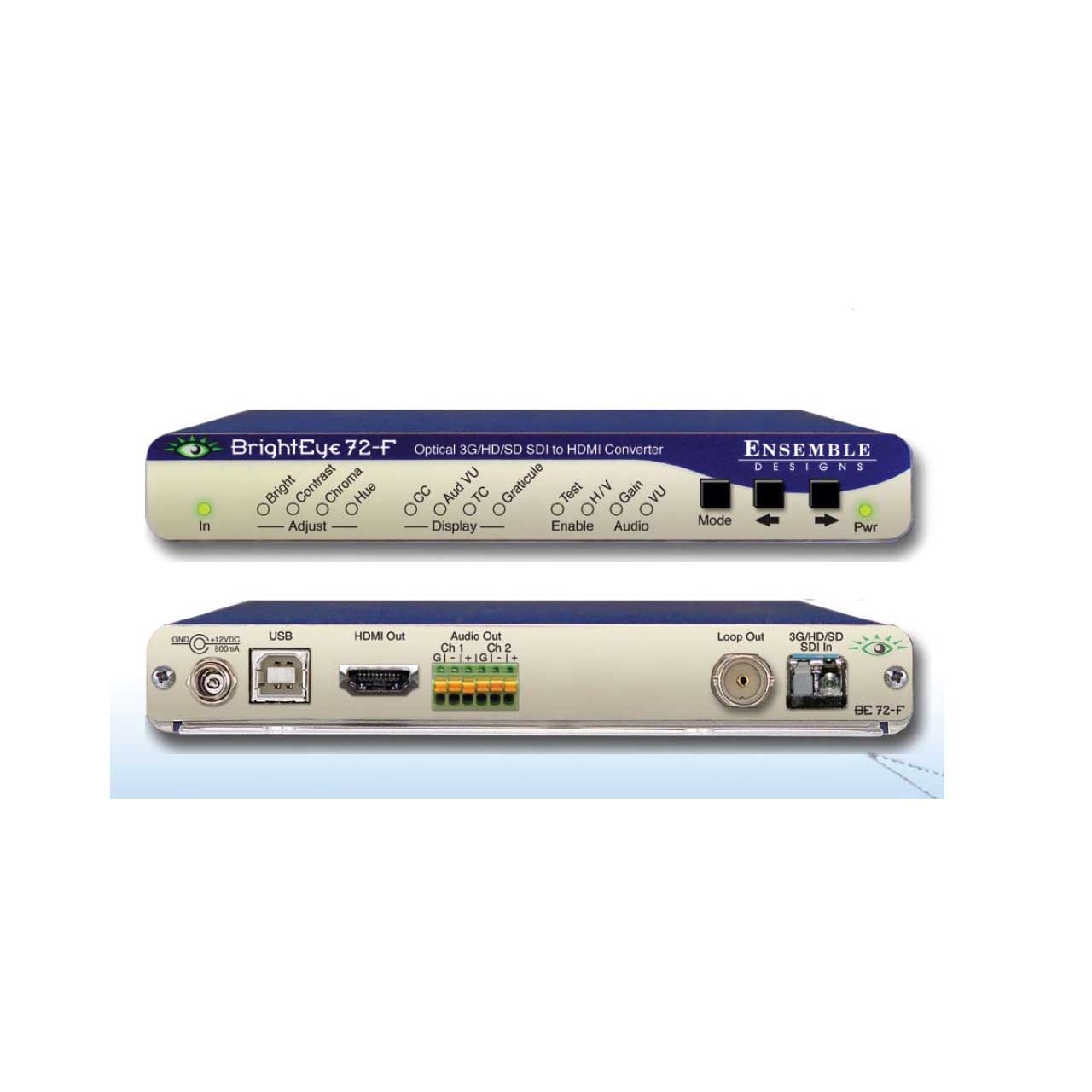

Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)
  • Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)
  • Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)
  • Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)
  • Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)
Questions? Ask a Markertek Expert:
800-522-2025 Email

Ensemble Designs BE72-F BrightEye 72-F Optical 3G/HD/SD SDI to HDMI Converter (Receiver)

Manufacturer: Ensemble Designs

Item #: ENDE-BE72-F   •   MFG #: BE72-F


List Price:$1,050.00
Our Price:$997.50

free ship
Availability: Direct Ship From Manufacturer
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.



A rescue remedy for the studio, out in the field and especially for your wallet. The Ensemble Designs BrightEye 72-F!

This is the same version as the powerful BE72 but with an added feature of an optical input.The 72-F sports a simplex (single) LC/UPC connector input that accepts a Singlemode transmission. (Multi-mode compatible with attenuation at transmit end). So if you need to convert your SDI fiber to HDMI this is your unit.

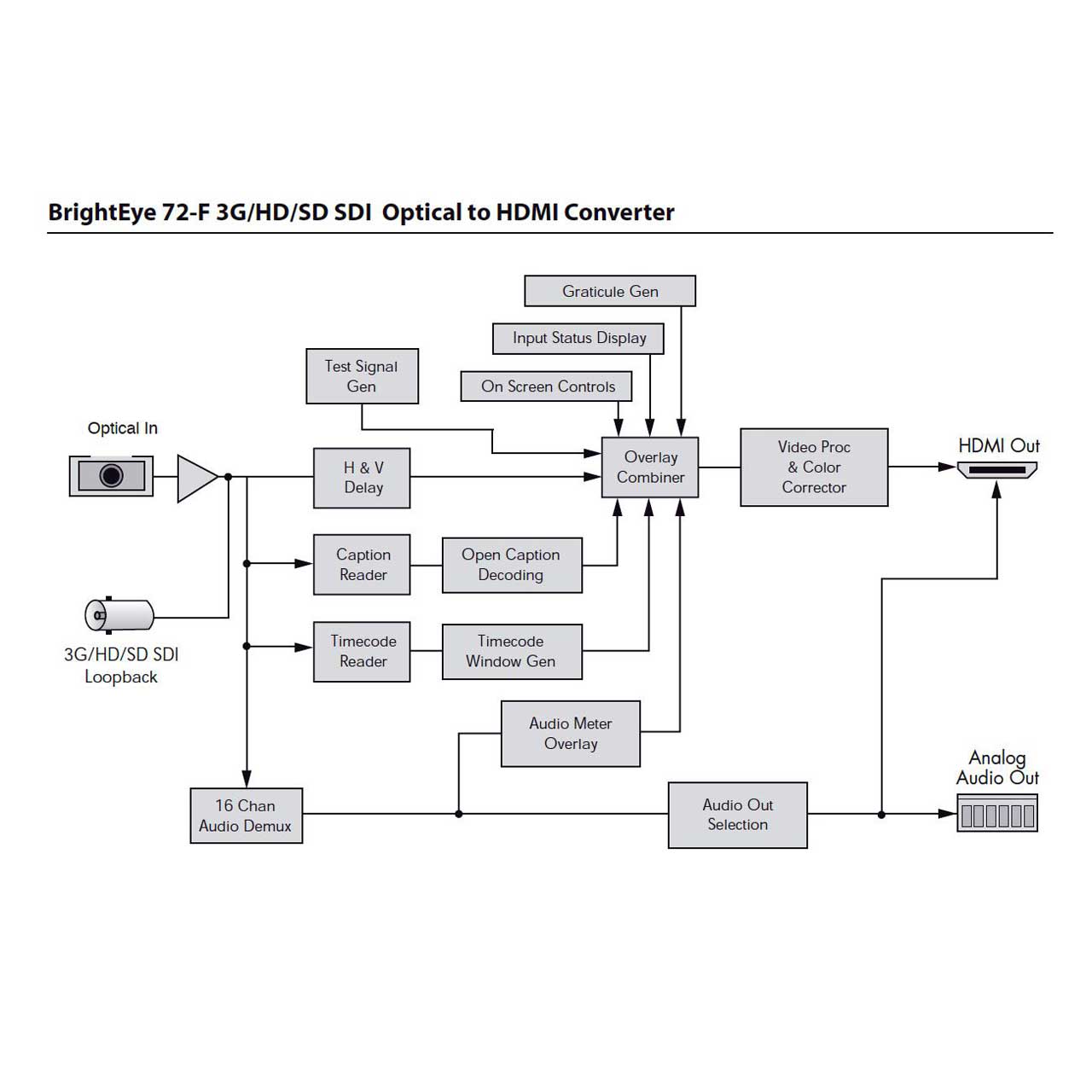

Pay a tenth of the cost for your monitors. Combine the BrightEye 72 & 72-F SDI to HDMI converter with any HDMI monitor for high-end display applications in broadcast and post. Color correction and temperature adjustments are made easy with the front panel and computer controls. Open captions, timecode and audio presence can be displayed on your monitor giving you confidence your signal is correct. BrightEye 72 & 72-F accepts an SD, 1.5 Gb/s HD or 3 Gb/s HD SDI digital signal and outputs HDMI. Front panel controls include: complete proc amp, built-in test signals for use in aligning the monitor, graticule, H/V pulse delay, on screen audio VU meters, timecode burn in, AFD indicator and open caption decoding. BrightEye 72 can display open captions on any HDMI video monitor. 608 or 708 caption data is decoded and displayed on-screen. Audio presence is reported and on-screen VU meters show all 16 audio channels. If audio or Dolby E are embedded on the SDI input, audio is passed through on the HDMI output. Horizontal and vertical split modes provide an easy way to see data in the vertical and horizontal intervals, including audio and closed caption data blocks. A special Mirror Flip Output mode can be enabled, causing the output image to be flipped left to right for use with on-camera talent. Open captions are displayed correctly when Mirror mode is selected. Use BrightEye 72-F in studio applications where you need to adjust the color temperature of on-set monitors so they look right on-camera. For facilities using 3G, the issue of monitoring the signal becomes a challenge. The BrightEye 72-F provides a convenient way to monitor any type of digital video signal.

Power supply is included.

  • Features

    • Turn Any Monitor into a High-End Broadcast Monitor
    • Built-in Color Corrector - Great for Adjusting Color Temperature of On-Set Monitors
    • Broadcast Confidence Monitor Features Including Caption Decoding, Timecode Display, AFD and Audio Level Meters
    • H & V Shift for Easy Trouble Shooting
    • Safe Title/Graticule Overlay
    • Mirror Output Mode for On-Camera Talent
    • Use in Post with 4:4:4 Material
    • Analog Audio Outputs
    • Use with HD or SD Monitors, VTRs and Projectors
  • Specifications

    • Optical Input for BrightEye 72-F:.
    • Number of Optical Inputs: One.
    • Connector: LC/UPC.
    • Type: 270 Mb/s (SMPTE 297M, optical equivalent of 259M), 1.485 Gb/s Gb/s HD Serial Digital (SMPTE 274M, 272M or 296M), 2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M).
    • Wavelength: 830 to 1610 nm.
    • Receiver Sensitivity: -18 dBm.
    • Max Cable Length: 20 km.
    • Fiber Type:Single Mode, Multi-mode compatible with attenuation at transmit end.
    • SDI Standards Supported:
    • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz, 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz, 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz, 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz, 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A, 525i, 625i (SMPTE 259M).
    • HDMI Output:.
    • Number of HDMI output ports: One.
    • Type: HDMI 1.3.
    • Format: Follows input.
    • Serial Digital Output:
    • Number of SDI output ports: One, loopback.
    • Type: Follows input.
    • Delay: < 5 Sec .
    • Impedance: 75 Ohm.
    • Return Loss: >15 dB to 2.97 GHz.
    • Max Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s (Belden 1694A).
    • Number of Analog Audio Output: 8 channels.
    • General Specifications:
    • Size: 5.63" W x 0.8" H x 5.98" D, (143 mm x 21 mm x 152 mm) including connectors and flange.
    • Weight: 14 oz.
    • Power: 12 volts, 7 watts (100-230 VAC modular power supply).
    • Temperature Range 0 to 40° C ambient (all specs met).
    • Relative Humidity: 0 to 95%, non-condensing.
    • Altitude: 0 to 10,000 ft.
