BrightEye NXT 410 4x1 HDMI Clean Switch Router


BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC
  • BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC
  • BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC
  • BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC
  • BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC
  • BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC

Questions? Ask a Markertek Expert:
800-522-2025 Email

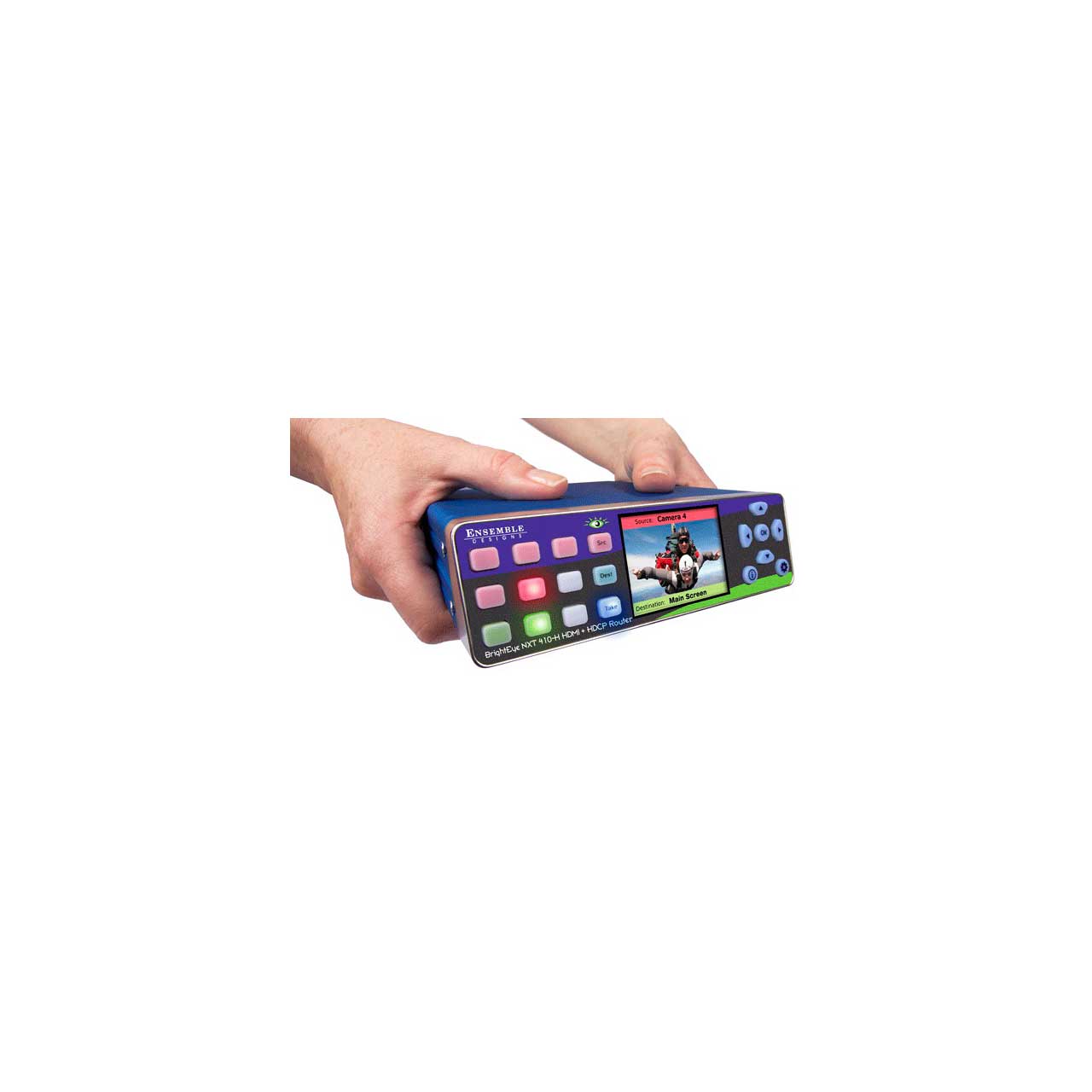

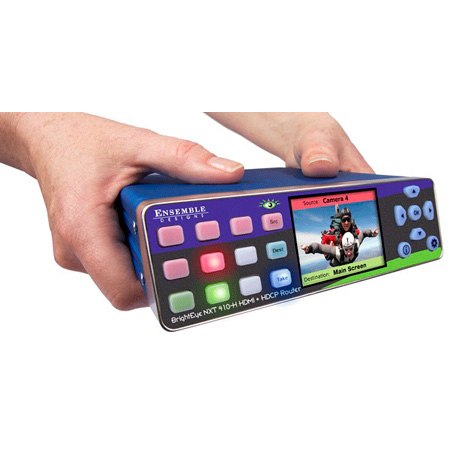

BrightEye NXT 410-H Clean HDMI Router with HDCP and UDC

Manufacturer: Ensemble Designs

Item #: ENDE-BENXT-410-H   •   MFG #: BENXT-410-H



List Price:$4,900.00
Our Price:$4,655.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Cleanly Switch HDCP Content

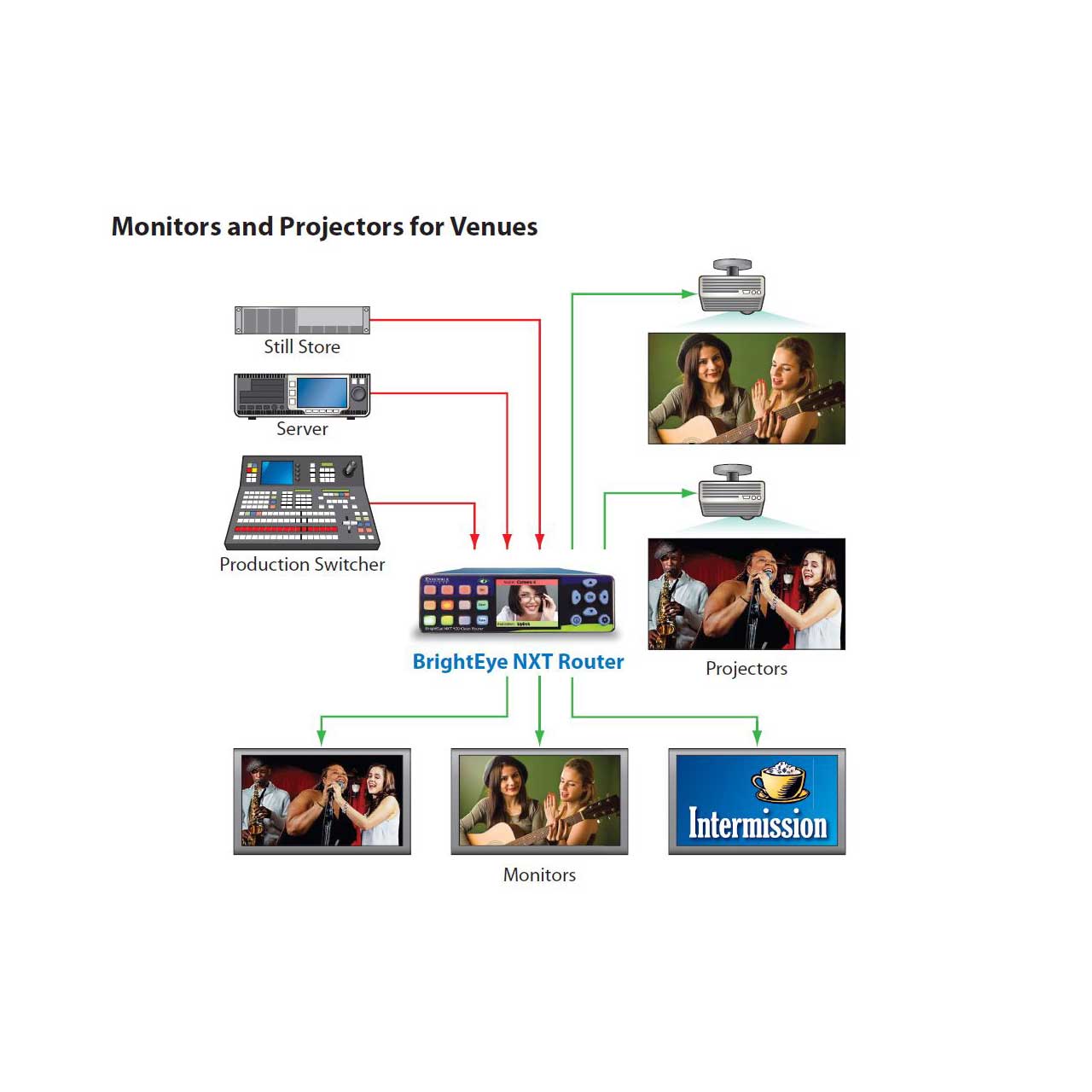

The BrightEye NXT 410-H Clean HDMI + HDCP Router provides clean and quiet switching of HDCP encrypted content to its HDMI output along side SDI and non-encrypted HDMI sources. The BrightEye NXT 410-H lets you dissolve or cut between HDMI sources such as cameras or disk players, traditional SDI sources and HDCP encrypted devices for output to an HDMI display or projector. The router's built-in frame syncs ensure an instantaneous, clean switch or dissolve between every source without flashing or unexpected black displays, even with completely asynchronous sources. Non-HDCP encrypted HDMI and SDI sources can be routed to SDI destinations independently and simultaneously. HDCP encrypted sources cannot be routed to SDI destinations.

Use Encrypted and Non-Encrypted HDMI Along Side SDI Sources

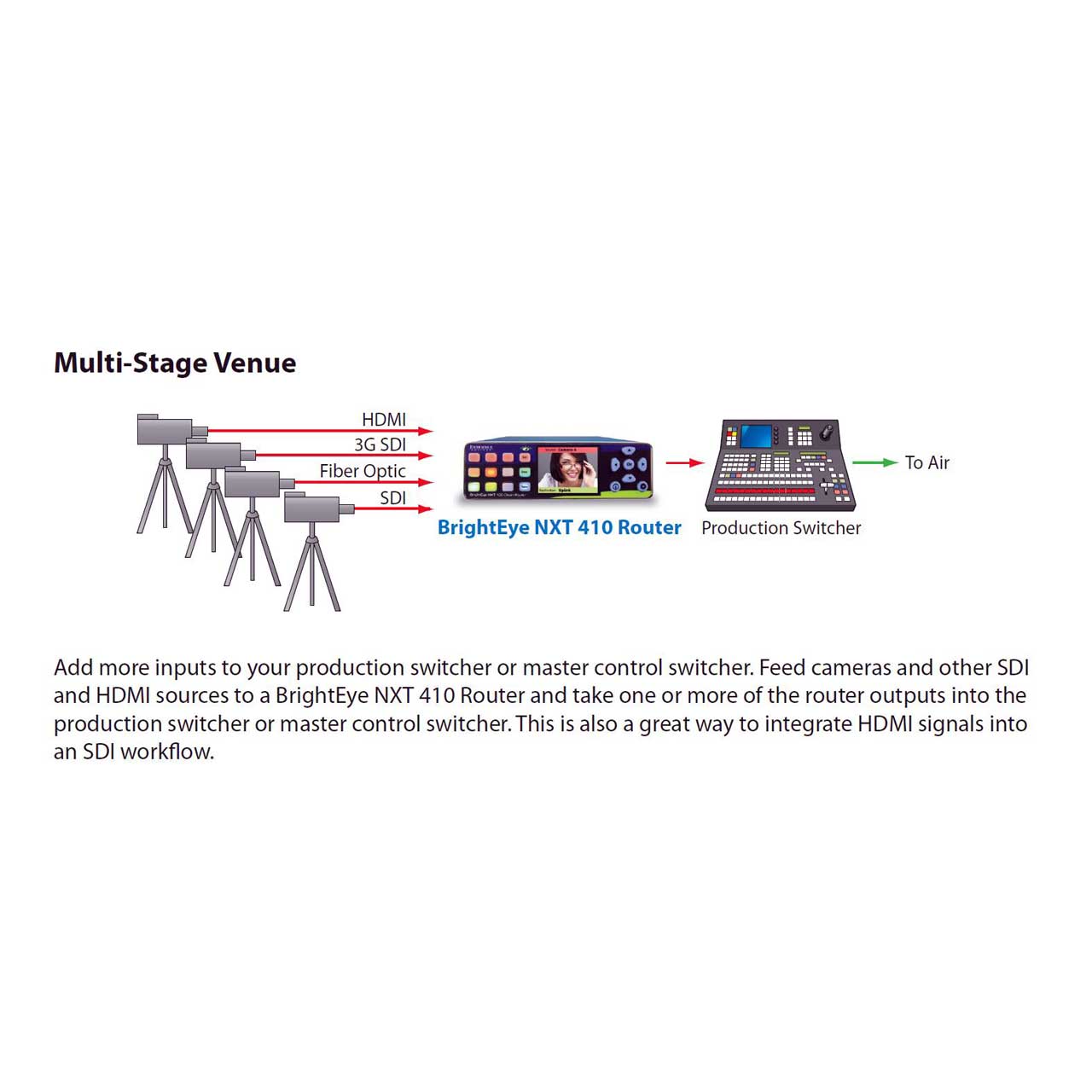

The ability to use HDMI sources and SDI sources along side one another is perfect for live applications in remote trucks and news vehicles. Devices such as set top boxes and Blu-ray players can be switched and mixed with SDI devices and HDMI cameras to the HDMI output seamlessly and instantaneously.

Convert While You Route

The new BrightEye NXT410-H Compact Router with U/D/C and Clean and Quiet Switching allows format conversion to take place while routing signals to destinations. Now, various formats of high definition and standard definition content can be converted to a common format and routed seamlessly to destinations. Standard definition sources can be up converted to high definition as part of the routing process, as well as cross converting from one HD format to another. All you have to do is select a SMPTE standard to output to a particular destination, and all sources routed to that destination will be converted to the format.

Control From Anywhere

The unique web-browser user interface allows control and set-up from virtually anywhere via any web browser enabled device, while front panel controls allow complete configuration and control of the router without the use of a computer. In addition, they can be externally controlled through either TCP/IP or DB9 connector under automation control.

Router Salvos for Multi-Destination Simultaneous Routing

Use salvo memory registers to execute several routes simultaneously. Eight separate salvo registers can be created and then triggered with any web browser enabled device.

Integrate HDMI and SDI I/O

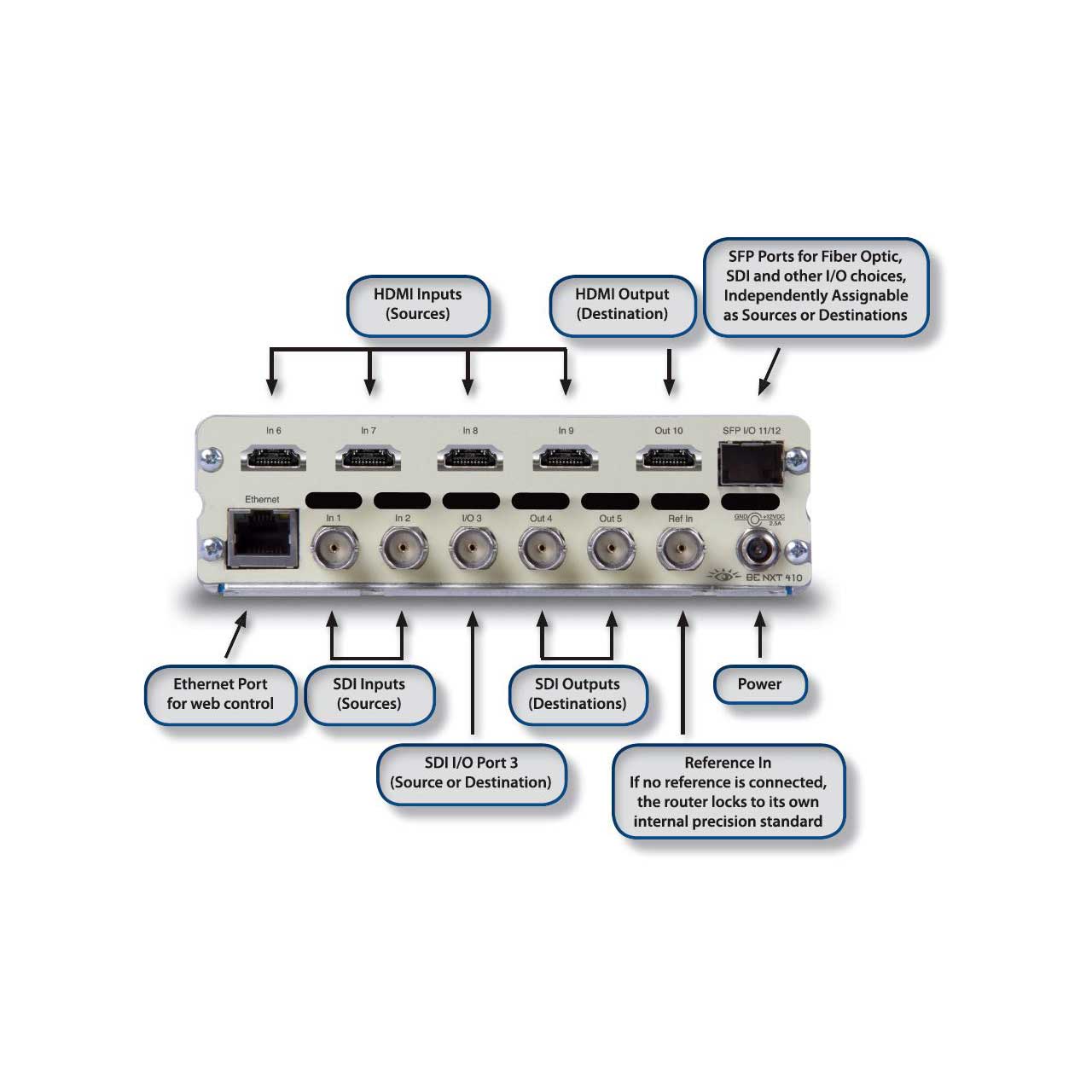

With both HDMI and SDI inputs and outputs, the NXT 410-H makes it easy to integrate and switch signals from all types of equipment, regardless of the video format. Cameras with HDMI outputs can be used directly alongside SDI sources, and seamlessly routed to either HDMI or SDI outputs. The SFP (small format plugable) cage can be populated with dual SFPs that have fiber optic or other connectors, allowing you to determine the best connector for your installation. Adding SFPs gives you true flexibility in combining electrical BNC, HDMI and fiber optic inputs and outputs.

Control From Third Party Devices

BrightEye NXTs can be controlled from third party devices using serial protocols via TCP/IP, RS-232 and SNMP. If RS-232 control is desired, please specify at time of purchase and your unit will come with the connector cable pre-installed. Field installation after the fact is not supported.


  • Features

    • Cleanly Switch HDCP Encrypted Content
    • Up/Down/Cross Converter Built In
    • Router for 3G, HD and SD SDI and HDMI Video
    • Dissolve and Cut Transitions
    • Direct Take Mode
    • Salvo Registers - Save/Recall from your Tablet and Computer
    • System Wide Configuration Registers
    • Flexible I/O - You Configure BNCs and SFPs as Inputs or Outputs
    • Clean Switching of Video and Embedded Audio
    • Audio Level Adjustments
    • RS-232 and TCP/IP Interfaces - Use with any 3rd Party Device

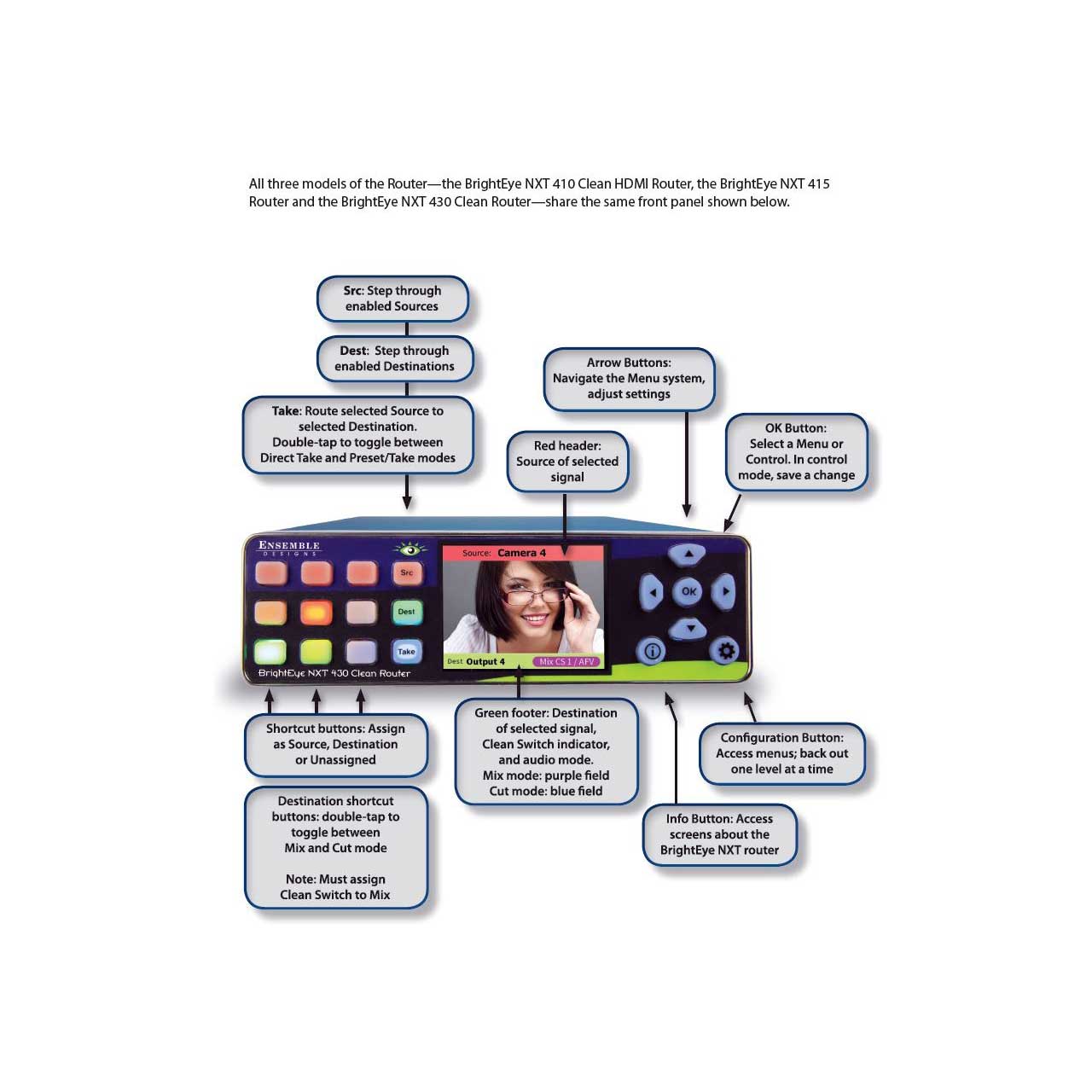

    • Front Panel and Web-Based Control
    • LCD Display with Realtime Full Motion Video of Your Sources
    • Safe Driving Mode
    • Built-in Test Signal Generators
    • Compact and Rugged
    • Genlockable and Timeable

  • Specifications

    • Serial Digital Input
    • Number: Two to Five, configurable, BNC and SFP
    • Signal Type: 270 Mb/s SD SDI, SMPTE 259M 1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M 2.97 Gb/s HD SDI, SMPTE 424M, 425M
    • Impedance: 75 Ω
    • Return Loss: >15 dB
    • Max Cable Length: 300 meters for 270 Mb/s 100 meters for 1.485 Gb/s
    • Automatic Input Cable Equalization

    • Reference Input
    • Number: One
    • Type: 1 V P-P Composite Video, PAL or NTSC or Tri-Level Sync
    • Impedance: 75 Ω
    • Return Loss: >40 dB

    • Serial Digital Output
    • Number: Two to Five, configurable, BNC and SFP
    • Type: 270 Mb/s SD SDI, SMPTE 259M 1.485 Gb/s HD SDI,SMPTE 274M, 292M, 296M 2.97 Gb/s HD SDI, SMPTE 424M, 425M
    • Processing: 12 and 16 bit
    • Impedance: 75 Ω
    • Return Loss: >15 dB
    • Max Cable Length: 100 meters for HD 300 meters for SD (Belden 1694A)

    • HDMI Input
    • Number: Four
    • Type: HDMI 1.3
    • Format: Supports HDMI signals which map to the video standards listed below

    • HDMI Output
    • Number: One
    • Type: HDMI 1.3
    • Format: Follows input

    • HDCP (410-H Only)
    • HDMI output can be configured to generate HDCP encryption. This allows both encrypted and non-encrypted HDMI and SDI sources to be cleanly switched to this output.

    • Standards Supported
    • 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
    • 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
    • 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
    • 1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A
    • 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
    • 625i 50
    • 525i 59.94

    • General Specifications
    • Size: 5.63" W x 1.65" H x 6.75" D (143 mm x 42 mm x 172 mm) including connectors and flange
    • Weight: 1 lb 12oz
    • Power: 12 volts, 20 watts (100-230 VAC modular power supply)
    • Temperature Range: 0 to 40° C ambient (all specs met)
    • Relative Humidity: 0 to 95%, non-condensing
    • Altitude: 0 to 10,000 ft.

  • Warranty

    • 5 Year and Free Software Upgrades Forever
