ESE 1x12 Video Distribution Amplifier

ITEM #: ES 208 MFG #: ES 208

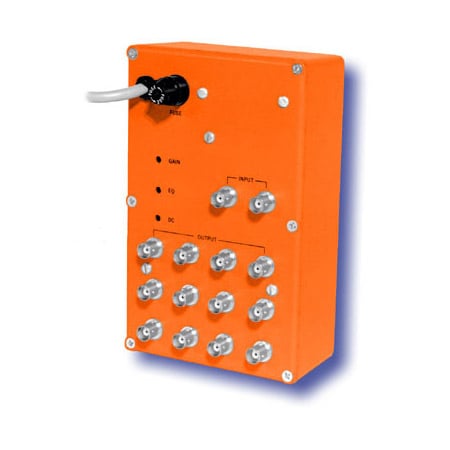

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ES 208

ES 208 - Overview

The ES-208 provides a loop-thru input and four isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain and Equalization controls are provided on the front of the case. Up to 1000 feet of cable may be compensated by adjusting the EQ trimmer. The Gain control provides an overall signal level adjustment of - 6 to +3.5 db. The DC Level control allows adjustment of the DC clamp level with respect to Ground. When the input is not looped thru to other equipment, a 75 ohm terminator should be used on the free input connector. Unused outputs need not be terminated. The unit is housed in a small diecast box, which is ideal for tucking away in the most convenient location. The ES-208's output video should be set for 0 VDC (using the DC control) on the blanking orporch level, with video extending positive and sync negative.

  • Features:

    • BNC connectors
    • Loop-thru video input
    • 12 isolated outputs (75 ohm)
    • 10 MHz frequency response
    • Gain & HF Equalization controls
    • DC Level control
    • Rugged die-cast alloy case
    • 220-240 VAC (110-120 VAC is standard) & UL options available
    • Ruggedized Enclosure
    • Video Gain & EQ Controls
    • Loop-thru Input
    • Equalization For Up To 1000' of RG-59 Cable
    • Broadcast Quality Distribution
    • Equalization For Up To 1000' of RG-59 Cable
    • DC Coupling Available
    • Recessed Controls

  • Specifications:

    • Options:
    • (Black) Black Anodized Front Panel-option available when standard panel is clear anodized
    • List: $15.00
    • (C) Crystal Time Base (2-3 seconds week accuracy)
    • List: $60.00
    • (D) Remote Control via 6 ft Cable, Connector, Switch Plate
    • List: (extra cable at $2.00/ft) $65.00
    • (DC) 12 - 35 VDC Operation (No AC Power Input is supplied with Option "DC")
    • List: $250.00
    • (ESE) ESE Serial Time Code Output
    • List: $30.00
    • (EQ) Front panel accessible Equalization trimmer when cable is to exceed 100' (400' max.)
    • List: 25.00
    • (J) 220 Volt / 50 Hz Operation (Standard is 117 Volt / 60 Hz)
    • List: (+ option "UL" = $125.00) $30.00
    • (L2) 2 Additional Video Loop Thru's
    • List: $150.00
    • (L4) 4 Additional Video Loop Thru's
    • List: $300.00
    • (MT) Precision Multi-turn Potentiometers for Gain Control (Standard with ES-246/XLR) see above
    • (P) 19" Rack Mount
    • List: $55.00
    • (P2) 19" Rack Mount mounts two (2) units (with P2 Option) side-by-side (Consult ESE factory)
    • List: $75.00
    • (R) Rear-mounted connector for Remote Control (standard on many units)
    • List: $55.00
    • (SV) S-VHS connectors are provided instead of standard BNC connectors
    • List: $75.00
    • (Sync) Composite Sync Output; 2 vpp into 75.
    • List: $30.00
    • (Tone) Continuous 1KHz Tone at 0db for Synching Audio with Video
    • List: $55.00
    • (UL) "UL" Approved Wall Mount Power Supply
    • List: (+ option "J" = $125.00) $60.00
    • (W) 3 Wire Line Cord
    • List: $16.00
    • (XLR) XLR Connectors instead of standard Terminal Block see above
      NOTE: FOR CUSTOMIZATION WITH THESE OPTIONS PLEASE CALL FIRST BEFORE ORDERING
