ESE ES-209A Video / Audio Distribution Amplifier

ITEM #: ES 209A MFG #: ES 209A

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$495.00

Our Price:

$470.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


ES 209A - Overview

1 X 12 Video & Stereo DA

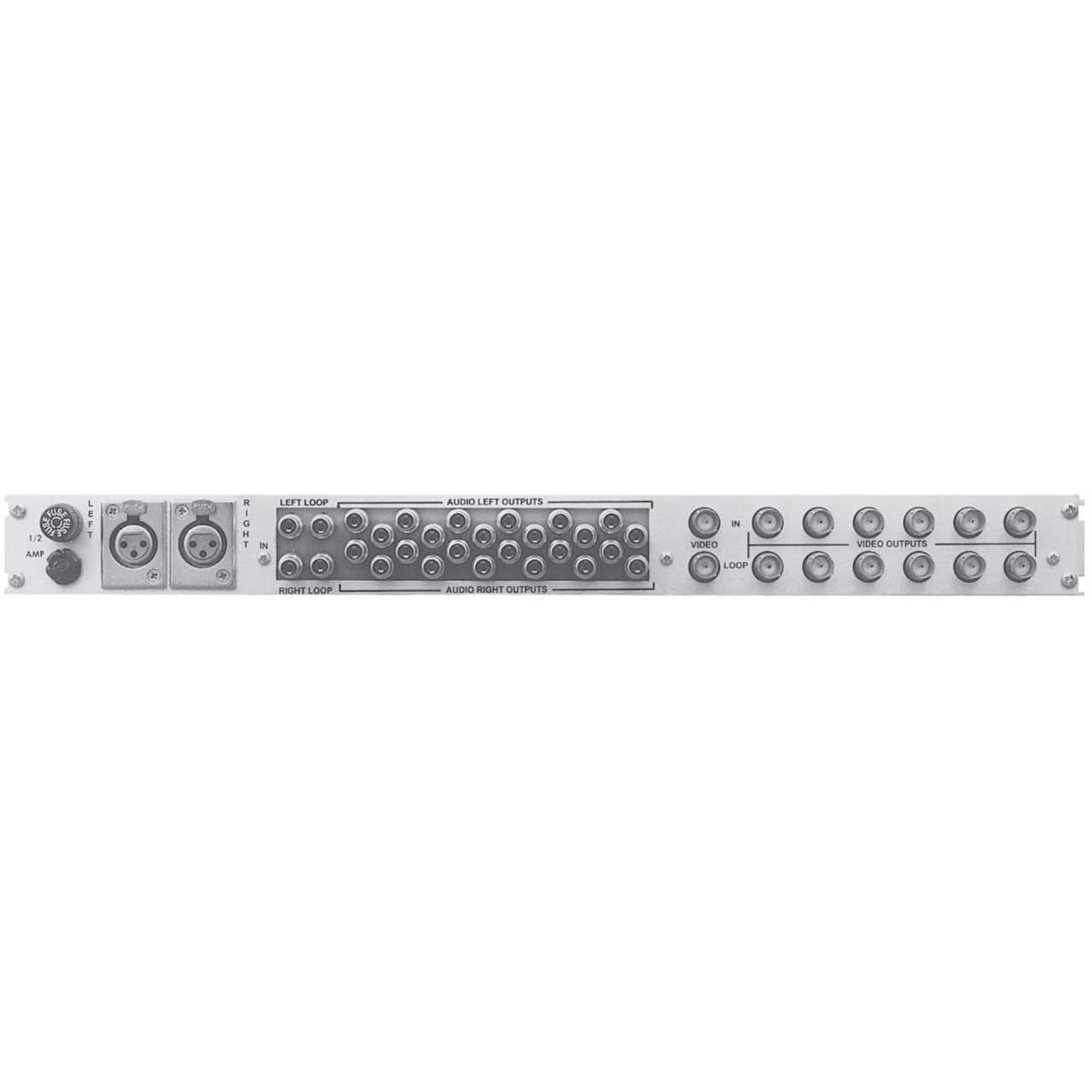

The ES-209A is a 1 x 12 Video Distribution Amplifier combined with a 1 x 12 Stereo Audio Distribution Amplifier. It is housed in a rack mounted cabinet which measures 1 3/4" high. Two BNC connectors provide a loop-thru video input; 12 BNC connectors provide isolated outputs. Both unbalanced RCA and balanced XLR audio inputs are provided. An RCA active loop output and 12 RCA DA outputs are provided per channel. All twelve outputs will deliver identical signals, and unused outputs need not be terminated.

The video section of the ES-209A may be used for signal distribution and for signal conditioning.They are capable of delivering the very highest professional video quality. The Equalization Control (EQ) may be used to boost chroma in recording if desired. The Gain Control provides an output from .5 Vpp to 1.5 Vpp (with 1 Vpp input).

The audio portion of the unit is designed to create 12 identical copies of the stereo input drive signals. Response, distortion and noise specifications make the stereo performance of the DA ideal for tape
duplication or signal distribution, The audio DA input is balanced or unbalanced (hi-impedance), while the outputs are medium, and will drive either 600 Ohm or hi-impedance inputs.

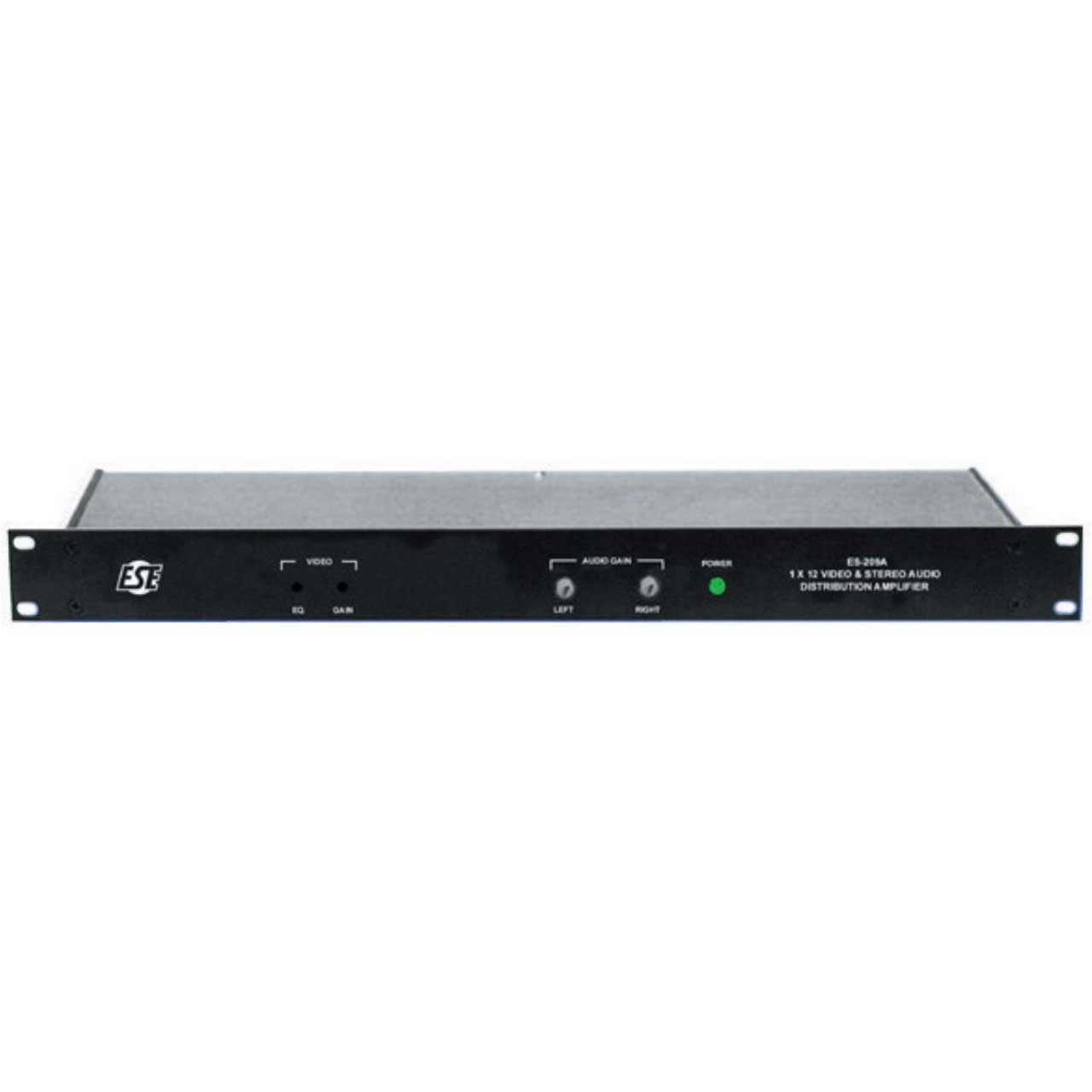

It is primarily designed to meet the needs of tape duplication systems as well as installations that require Audio and/or Video Distribution. Front panel-mounted controls are provided to adjust Video (EQ & Gain) and Audio (Left & Right Gain) output signals.

Product Options.

Clear: Clear Anodized Front Panel.
J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

  • Features:

    • Left & Right Channel Audio Gain Controls Loop-thru Audio & Video Inputs.
    • Professional Audio & Video Quality Accepts Balanced or Un-Balanced Audio.
    • Internal Linearity Control.
    • Transformerless Audio DA.
    • 1 x 12 Video DA.
    • 1 x 12 Stereo DA.
    • Video EQ & Gain Controls.
    • BNC connectors for Video Input / Output, 75 Ohm
    • RCA & XLR connectors for Stereo Audio Input
    • RCA connectors for Stereo Audio output
    • Loop-thru Video & Audio inputs
    • 12 isolated outputs
    • 10 MHz Video frequency response
    • Gain & High-frequency Video Equalization controls
    • Gain controls for Audio
    • 19" Rack-mount chassis
    • 220-240 VAC (110-120 VAC is standard) & UL options available
    • Options available: Black, J, P(1), UL, W(1)
