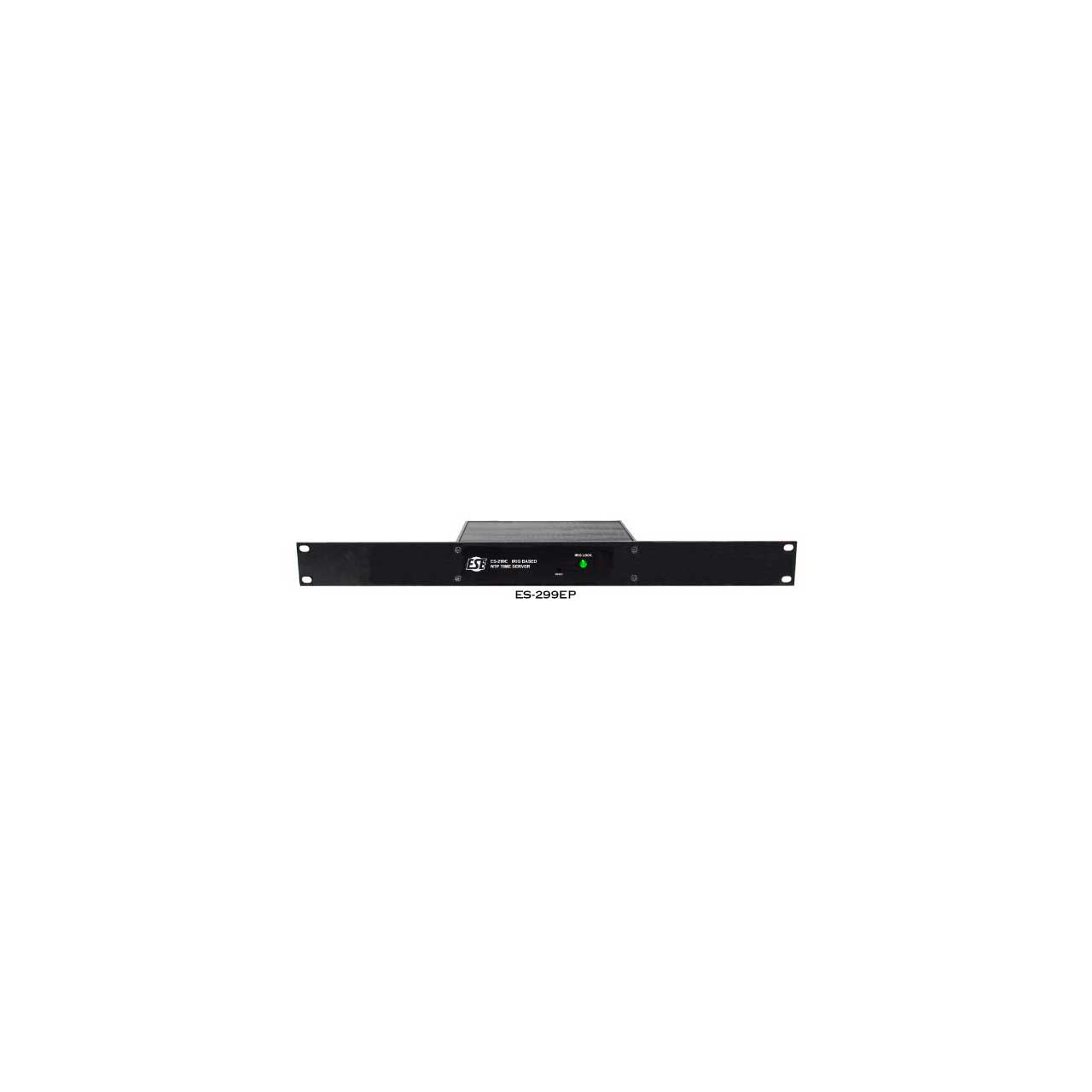

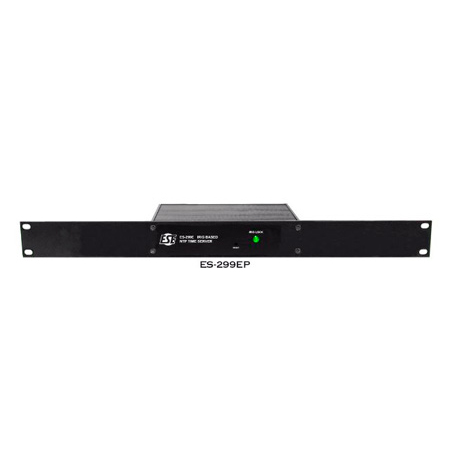

ESE ES-299EP IRIG Based NTP Time Server

ITEM #: ES-299EP MFG #: ES-299EP

Primary Image
ESE
Free Shipping with $49 Minimum Order

List Price:

$2,050.00

Our Price:

$1,898.95

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

ES-299EP - Overview

The ESE ES-299EP provides a practical method of putting accurate time information onto a network. The unit reads IRIG A, B, E and NASA36 time codes (Carrier or TTL). The NTP output is provided on a 10/100 Base-T Ethernet connector. The ES-299E is housed in a rugged black anodized desktop enclosure. A voltage-controlled temperature-compensated crystal oscillator is used to maintain the accuracy of the time code outputs when lock is lost.

The ES-299E is an IPV4/IPV6 compatible NTP Time Server. NTP clients can authenticate the NTP server with MD5 or SHA1 Symmetric Key Authentication. SNMP V1, V2 and V3 support allows specified users to be notified if a cold boot occurs, if Time Code Lock is lost or gained, or if NTP Authentication failed. The web server of the ES-299E can operate in two modes: HTTP or HTTPS. The HTTPS mode has the advantage of all information going to and coming from the server being encrypted.

  • Features:

    • NTP Time Code Output: Ethernet 10/100 Base-T (RJ-45)
    • IRIG Time Code (A, B, E, NASA-36) Input (BNC)
    • Status LED's
    • Lock Status Output
    • ESE (TC90) Time Code Output (BNC)
    • Embedded web page (Secure and Normal) or a telnet session
    • TTL lock output status
    • IPv6 Compatible
    • Supports Authentication


  • Specifications:

    • I/O Connection: Network: 10/100BaseT Ethernet, RJ-45
    • Outputs: ESE Time CodeTM TC89 or TC90, Drives 100 Slaves @ 4000', BNC
    • GPS Receiver: Internal 12-Channel (ES-104E only)
    • Antenna: Indoor/Outdoor with 16' Cable (ES-104E only)
    • Antenna Input: L1, 1.57542 GHz, TNC (ES-104E only)
    • Time Code Input: ES-299E: IRIG (A,B or E), NASA 36, BNC
    • Drift: 33ms/Day (if no GPS signal)
    • Configuration: Web page or Telnet
    • Enclosure: Desk-Top, Black Anodized Aluminum
    • Dimensions: 1.6" H x 7" W x 5" D
    • Electrical: 117 VAC, 50/60 Hz
    • Power: 5W maximum
    • Options: Ant (ES-104E Only), BBU, J, P, P2, UL


  • Product Options

    :

    • BBU: Battery Back-Up: An internal Gel-Cell battery is provided capable of maintaining the unit's microprocessor for up to a 4-hour power outage.
    • J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
    • P: 19" Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8" black anodized Aluminum and chassis is 5" - 10" deep.
    • P2: Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
    • UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
