ESE DV-229 HD/SD SDI Pattern Generator

ITEM #: ESE-DV-229 MFG #: DV-229

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,295.00

Our Price:

$1,230.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DV-229 - Overview

    HD/SD SDI Pattern Generator

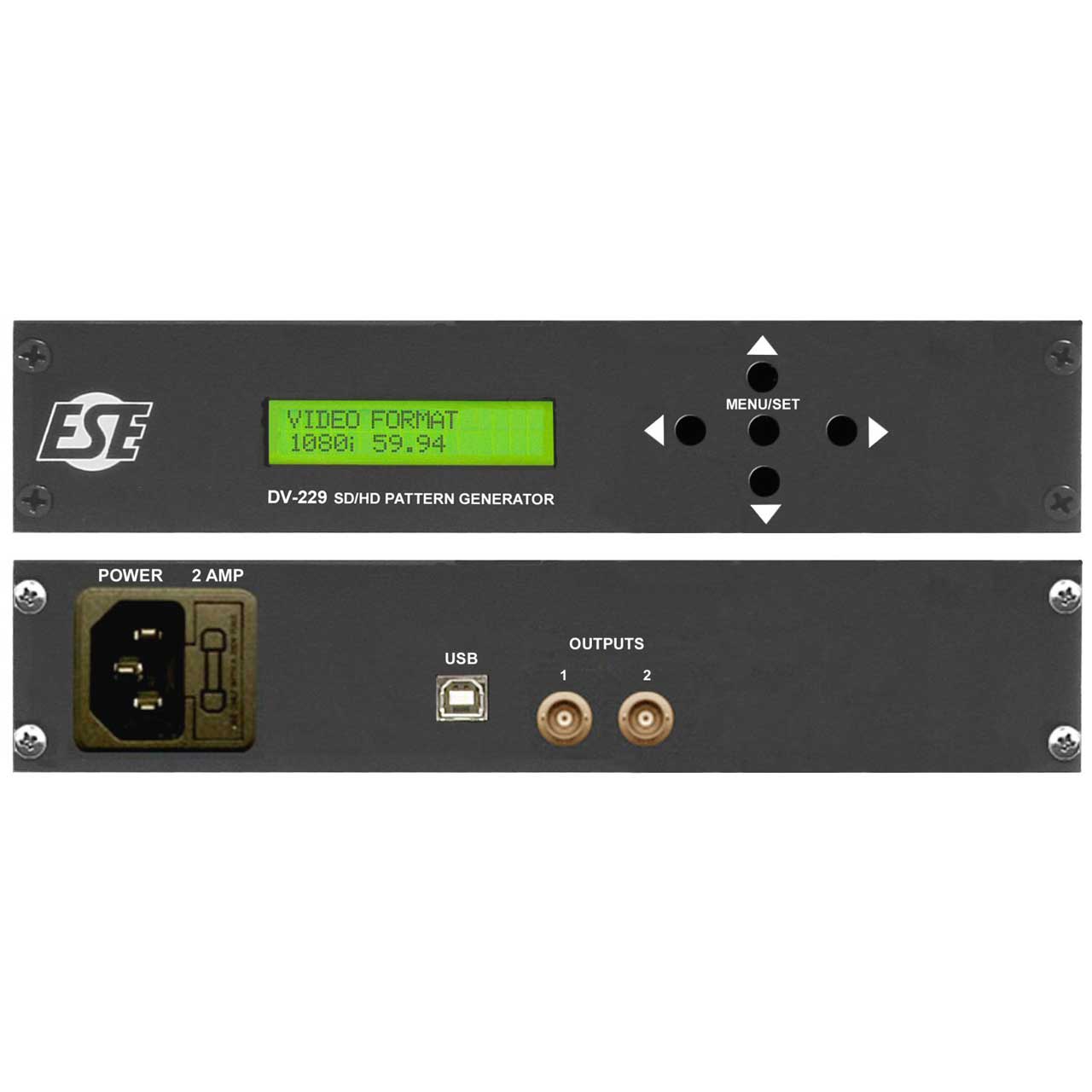

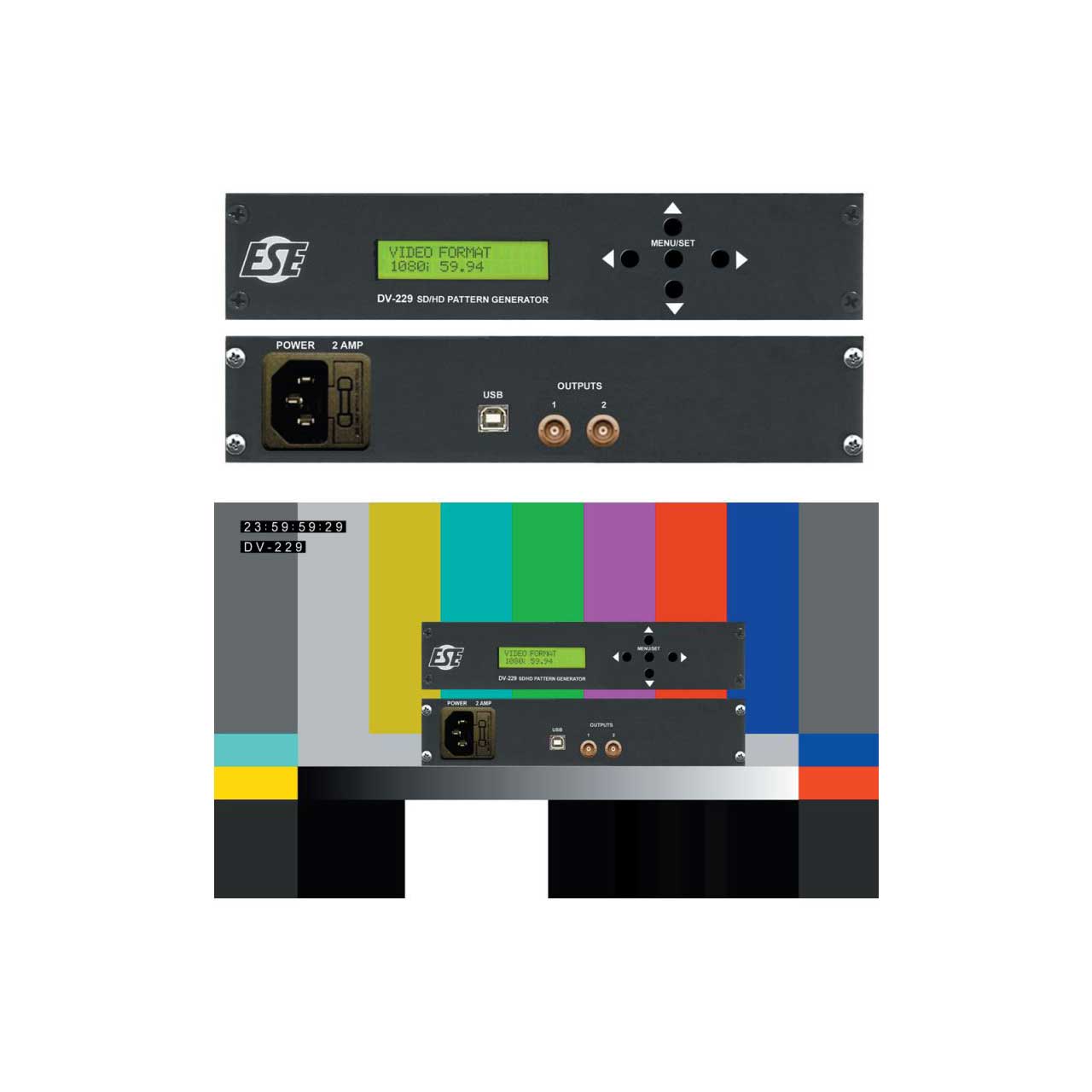

    The DV-229 is an HD/SD SDI Pattern Generator. The DV-229 offers two identical rear-mounted BNC outputs. A front panel LCD and pushbuttons allow for quick and easy setup. Alternatively, a software control panel and USB port may be used to configure the unit. Color bars as well as many other patterns are supplied. RP-188 and Closed Caption insertion, Embedded Audio Tones and onscreen Time Code/User Text insertion are also supported.

    • Features:

      • 2 SDI Outputs (BNC)
      • Multiple Test Patterns
      • Embedded Audio Tone
      • Closed Caption Insertion
      • RP-188 Time Code Insertion
      • Onscreen Time Code & User Text Insertion
      • Multiple SDI Formats (HD & SD)
      • Various Options available
      • DV-229 Options
      • DC DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
      • P 19 Front Panel (Rack Mount): Designed for mounting into a standard equipment rack. Panel is 1/8 clear or black anodized Aluminum and chassis is 5 - 10 deep.
      • P2 Dual Rack Mount: Allows specific units to be mounted side-by-side on a single Rack Mount panel.
      • UL UL Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

    • Specifications:

      • POWER: 85 - 264 VAC, 47 - 63 Hz, 20 Watts maximum
      • MECHANICAL: Black anodized aluminum enclosure 1.6" H x 8" W x 7.3" D
      • TIME & SETUP/STATUS DISPLAY: 16 x 2 character LCD
      • SD SDI OUTPUT: SMPTE 259M-C (270Mb/s)
      • SD SDI OUTPUT SWING: 800 mV typical
      • SD SDI OUTPUT RISE/FALL TIME: 660 ps typical
      • GENLOCK INPUT (DV-230): Bi-level or Tri-level, 75 Ohm
      • OPTIONS: DC, P, P2, UL
