ESE DV-207 1x4 3G/HD/SD SDI Reclocking Distribution Amplifier

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    ESE DV-207 1x4 3G/HD/SD SDI Reclocking Distribution Amplifier

    Manufacturer: ESE

    Item #: ESE-DV207   •   MFG #: ESE-DV207








    Versions:





    Share!

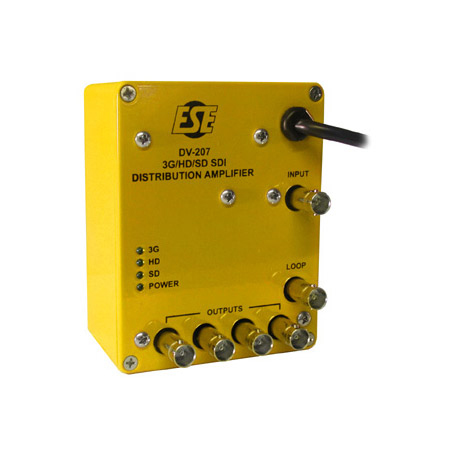

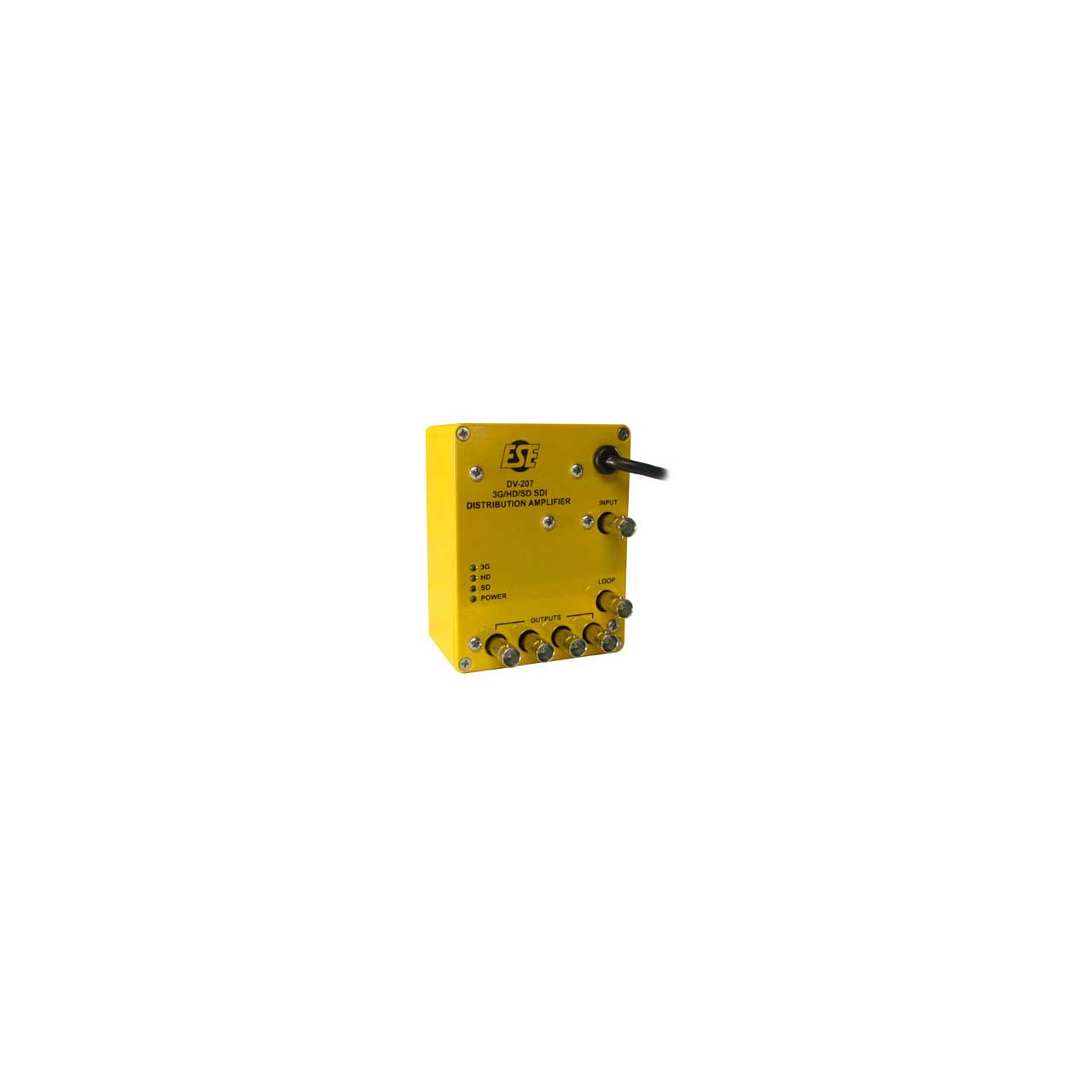

    The DV-207 is an SDI digital video (3G, HD & SD) 1 x 4 Distribution Amplifier. The unit features high-performance & low-cost and is able to distribute 3Gb/s, 1.5Gb/s & 270Mb/s data rates. The DV-207 automatically detects the data rate and then re-clocks and equalizes the signal. The Distribution Amplifier can equalize 400m @ 270Mb/s, 200m @ 1.5Gb/s and 140m @ 3Gb/s of 1694A coax cable. A non-reclocked loop output is also provided. An external power supply is not required as the DV-207 is completely self-contained requiring only 117VAC or 220VAC (option J) to operate. The small diecast enclosure can be easily placed behind an equipment rack.


    • Features

      • 4 Reclocked Outputs (BNC)
      • 1 Non-Reclocked Loop Output (BNC)
      • 270Mb/s, 1.5Gb/s, 3Gb/s
      • Reclocking & Equalization
      • Automatic Input Rate Detection
      • Reclocking Bypass Switch (internal)
      • DVB-ASI compliant at 270 Mb/s
      • 117 VAC (standard) or 220 VAC (option 'J')
        DV-207 Options
      • J: 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
      • UL: "UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.



    REVIEW SNAPSHOT®

    by PowerReviews
    ESE DV-207 1x4 3G/HD/SD SDI Reclocking Distribution Amplifier

    5.0

    (based on 1 review)

    Ratings Distribution

    • 5 Stars



      (1)

    • 4 Stars



      (0)

    • 3 Stars



      (0)

    • 2 Stars



      (0)

    • 1 Stars



      (0)

    Reviewed by 1 customer

    Displaying review 1

    Back to top

    (2 of 2 customers found this review helpful)


    5.0

    Exactly what we needed!!

    By Yak Doo

    from Burbank, CA

    Verified Reviewer

    Pros

    • Compact
    • Easily Expanded
    • Easy to find
    • Easy To Set Up
    • Highly Compatible
    • Rugged

    Cons

      Best Uses

        Comments about ESE DV-207 1x4 3G/HD/SD SDI Reclocking Distribution Amplifier:

        Exactly as advertised. We have also used the DV-212 which is a rackmount 1x12 version of this DA and it worked flawlessly as well.
