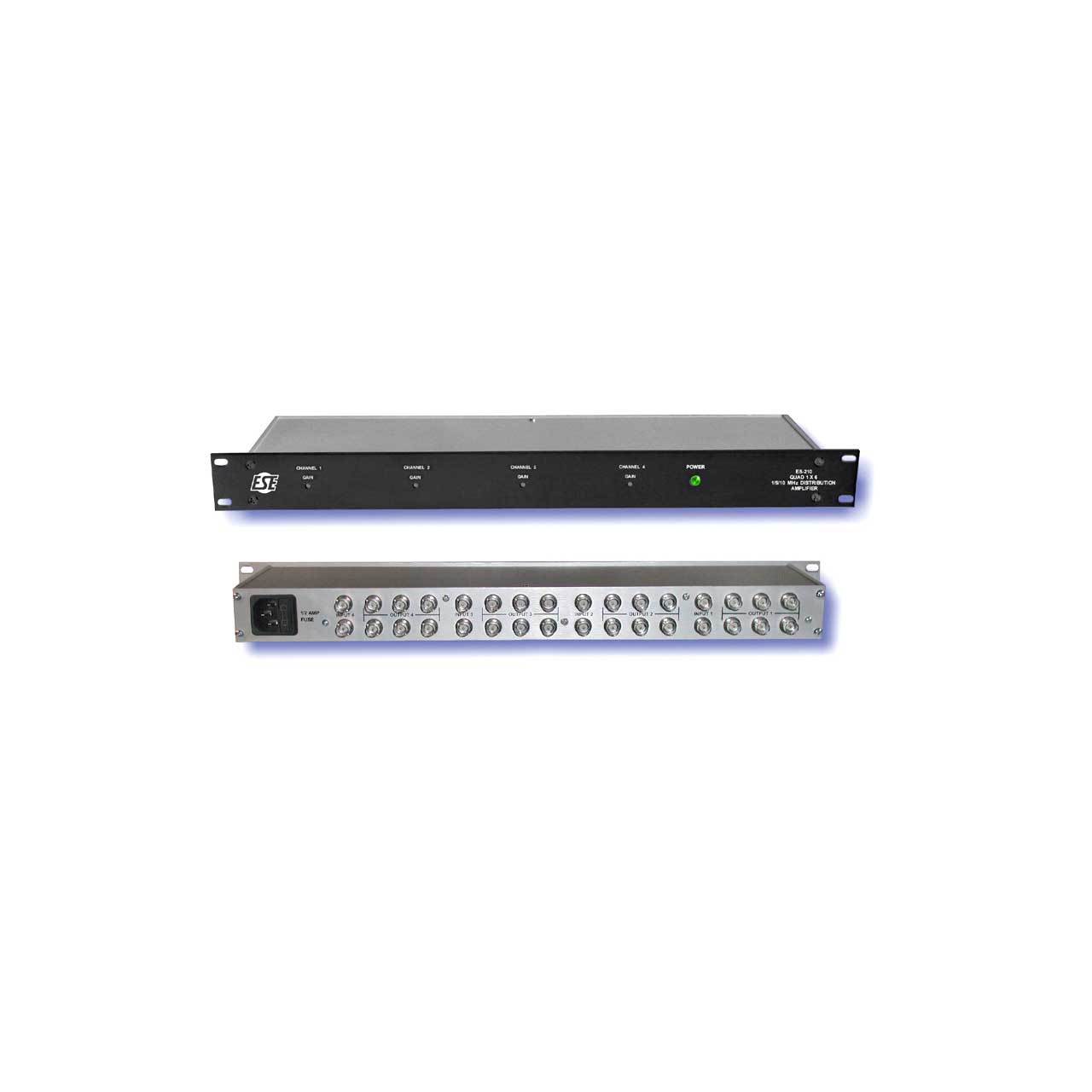

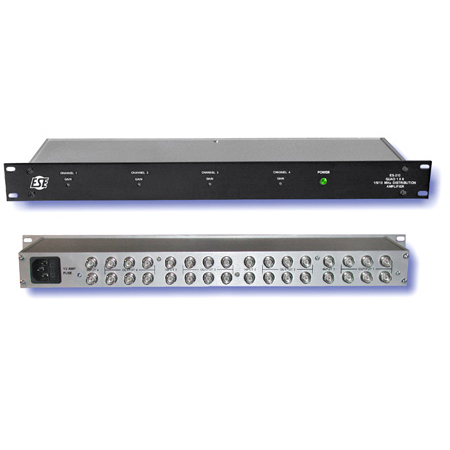

ESE ES-210 Quad 1x6 10 MHz Distribution Amplifier

ITEM #: ESE-ES-210 MFG #: ES-210

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$695.00

Our Price:

$660.49

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    ES-210 - Overview

    The ESE ES-210 provides four independent 1x6 Frequency DA's in a single rack-mount enclosure. Each DA has loop-thru inputs and six isolated outputs, all accessible via BNC connectors. Screwdriver-adjustable Gain controls are provided on the front of the case. The Gain control provides an overall signal level adjustment of -1.6 to +3.4 db. Unused outputs need not be terminated.

    • Features:

      • Four Independent Amplifier Channels
      • BNC connectors
      • Loop-thru output
      • 6 isolated outputs per channel (50 ohm)
      • 10 MHz frequency response
      • Gain control for each channel
      • Single-rack Height Enclosure
      • 220-240 VAC (110-120 VAC is standard) & UL options available
      • Various Options available

      • ES-210 Options
      • Clear Clear Anodized Front Panel
      • J 220 VAC/50 Hz Operation: The unit is configured to operate from 220 VAC line voltage. 117 VAC 50/60 Hz is standard.
      • UL UL Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.

    • Specifications:

      • Dimensions: 1.75" High x 19" Wide x 5" Deep
      • Power: 110-120 VAC, 50/60 Hz, 5 watts max.
      • Input: BNC loop-thru, 1 V rms nominal
      • Output: 6 BNC outputs, 1 V rms nominal, 50 ohm source
      • Gain Range: -1.6 db to +3.4 db adjustable
      • Freq. Response: 1 MHz - 10 MHz +/- .5 db
      • Slew Rate: 800 V/uS
      • S/N Ratio: 62 db
      • Propagation Delay: 2.5 nS
      • Output Isolation: 45 db
      • Maximum Output: 1.1 V rms into 50 ohms
      • Temperature Range: -40 to +85 Celsius
      • Options: J, UL
