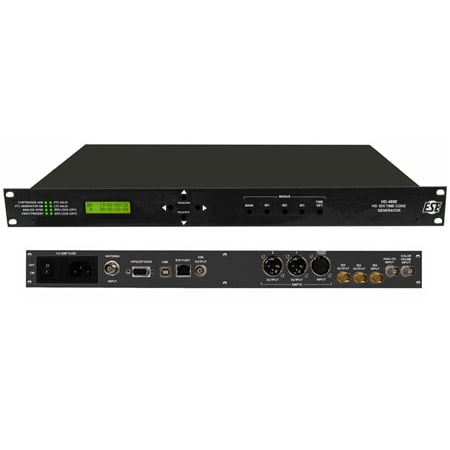

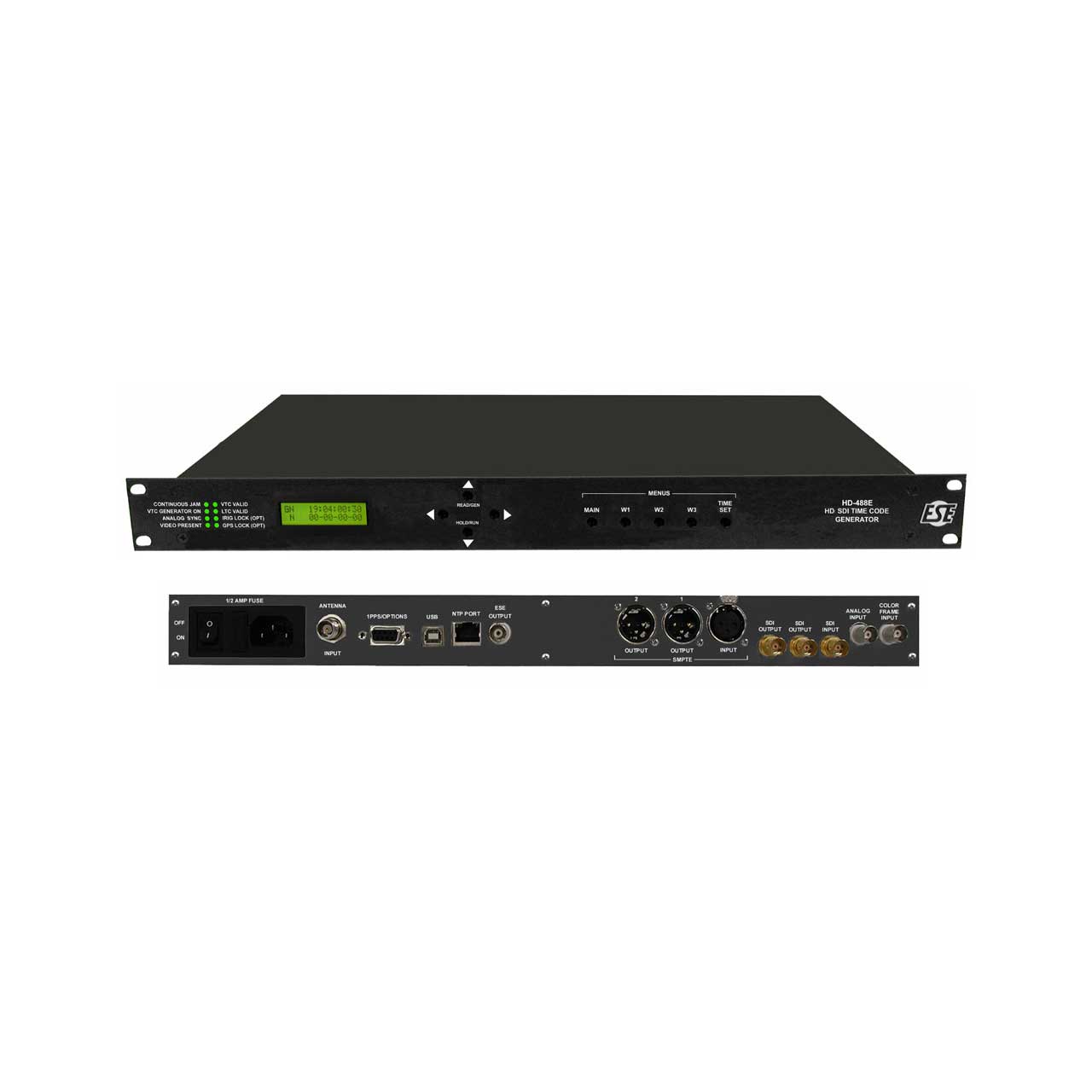

The HD-488E is a Time Code Reader, Generator and Inserter for HD (High Definition) Serial Digital Interface (SDI) video. Linear Time Code (LTC) and RP-188 Time Code are both read and generated by the HD-488E. The unit accepts a multitude of HD formats. The inserter mode provides the ability to superimpose time and/or user bits onto video with alphanumeric characters. As many as thirty characters of text may also be superimposed onto the video. Flexibility is also provided to the user, allowing for selection of the information to be displayed (time, time and user bits or text) on up to three different windows. The three windows are independent of each other and may be blanked.
The HD-488E is an enhanced version of the HD-488. New features include selectable color fonts, selectable onscreen date formats and front-panel entry of user text data.
This product includes:
Antenna Option (available with GPS option only): High performance antenna for challenging EMI environments.
GPS Option: An internal GPS receiver and LCD menu synchronization.
Addittional options also available:
DC Operation: Requires the unit to be powered from a DC source exclusively, typically +12 to +35 VDC.
ESE Time Code Input. Cannot be ordered with the IRIG input.
IRIG-A/B/G input plus IRIG-B Analog & TTL outputs. Cannot be ordered with the ESE Time Code input.
NTP Time Server. NTP Time Server output & Network Control input via Ethernet (10/100Base-T, RJ-45).
NTP Client: NTP Client Displays synchronize exclusively with an NTP server (replaces all standard inputs).
OCXO: Provides an Oven Controlled Crystal Oscillator.
RS-232C output of GPS receiver. Motorola Binary Format, Position/Status/Data Message once per second. Available with GPS option only
"UL" Approved Power Supply: The unit is supplied with a UL/CSA approved wall mount power supply.
