ETS PA830 AES/EBU 110 Ohm Digital Audio Splitter XLRF to 2 XLRM
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    ETS PA830 AES/EBU 110 Ohm Digital Audio Splitter XLRF to 2 XLRM

    Item #: ETS-PA830   •   MFG #: ETS-PA830

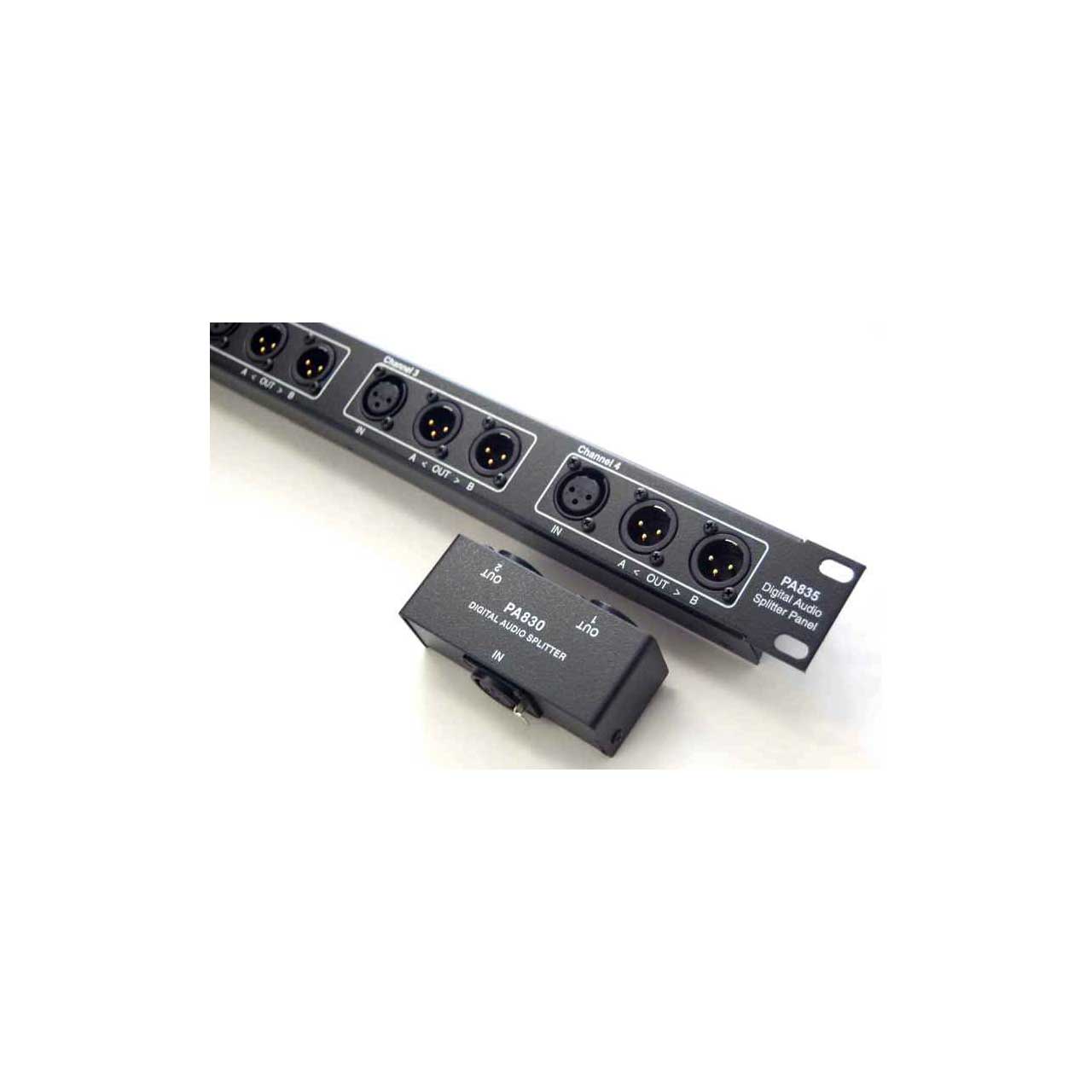

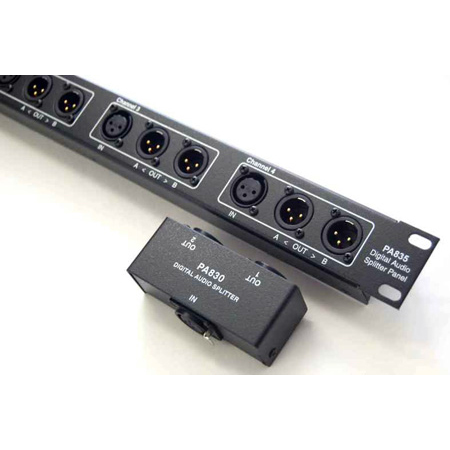

    The ETS PA830 Series are the Balanced Line™ Digital Audio Splitters and Digital Audio Splitter Panels. These products are expressly designed for the digital audio market. Used only for balanced 110 Ohm signals, these units accommodate signal levels to 10V. Since proper impedance is maintained, the splitters do not have to be symmetrically applied.

    Due to careful specification and minimal signal modification, these units may be cascaded reducing transmitted signal power by 3 dB at each stage.

    New to the product line is the PA835 that is a panel-mounted splitter in 4 channel version.

    • Features

      • Devices are used for splitting AES/EBU digital audio signals
      • Eliminates the need for a distribution amplifier in many applications
      • Superb impedance matching
      • Rugged metal cases and chassis
      • Made in USA. 100% QA.
    • Specifications

      • Bandwidth: 200 kHz to 10 MHz
      • Connectors: (3) XLR per channel
      • Impedance: 110 Ohm
      • Insertion Loss: < 0.1 dB
      • Impedance Match: +/- 2%
      • PA830 AES/EBU Splitter, F-XLR to (2) M-XLR
      • PA832AES/EBU Splitter, M-XLR to (2) F-XLR
      • PA835 AES/EBU Splitter Panel, 4 channels of PA830, 1RU


    by PowerReviews

    (based on 1 review)

    Ratings Distribution

    • 5 Stars



    • 4 Stars



    • 3 Stars



    • 2 Stars



    • 1 Stars



    Reviewed by 1 customer

    Displaying review 1

    Back to top


    Performs as expected

    By Rosie

    from Manheim PA

    About Me Pro Audio / DJ

    Verified Reviewer


    • Compact


      Best Uses

        Comments about ENERGY TRANSFORMATION SYSTEMS ETS PA830 Series AES/EBU Digital Audio Splitters:

        The unit splits the AES audio as needed and is passive so I need no extra power / cables to accomplish the duplication of AES signal.
