ETS PA901 Time Code AES EBU In Line Balun FBNC to FXLR

ITEM #: ETS-PA901 MFG #: PA901

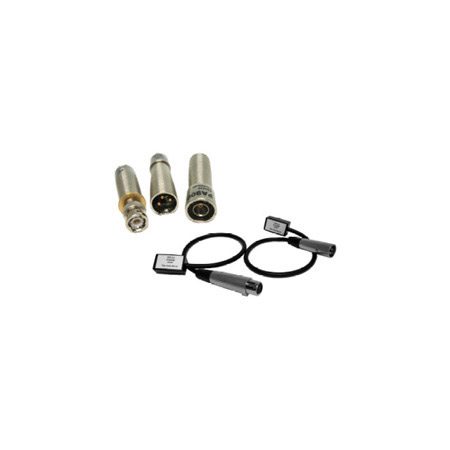

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$76.40

Our Price:

$65.43

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    PA901 - Overview

    The ETS PA901 is a digital audio time code balun with BNC-F to XLR-F connection.

    The ETS PA900 series of baluns from ETS is designed to connect Time Code signals from XLR output equipment to standard 75Ohm coax or 100Ohm UTP cabling systems. The baluns perform precise impedance-matching and signal balancing, enabling Time Code signals to be transmitted with greater signal integrity and longer runs over coaxial or UTP cable than can be achieved with conventional STP wiring.

    • Features:

      • Converts Time Code digital audio between balanced 110U XLR to balanced 100U UTP, or between balanced 110U balanced to unbalanced 75U BNC
      • Rugged compact cases
      • 100% tested
      • Made in USA

    • Specifications:

      • Bandwidth: 20 KHz - 60 MHz (1dB)
      • Connectors: XLR to BNC jack
      • Insertion Loss: < 0.15dB
      • Impedance Match: 110Ω - 75Ω
      • Comm Mode Reject: > 40dB
      • Distance: Up to 2500ft with coax cable
      • Dimensions: 0.80" dia. x 3.50" (20.3mm dia. x 89mm)
      • Net Weight: 1.06oz (0.03kg)
