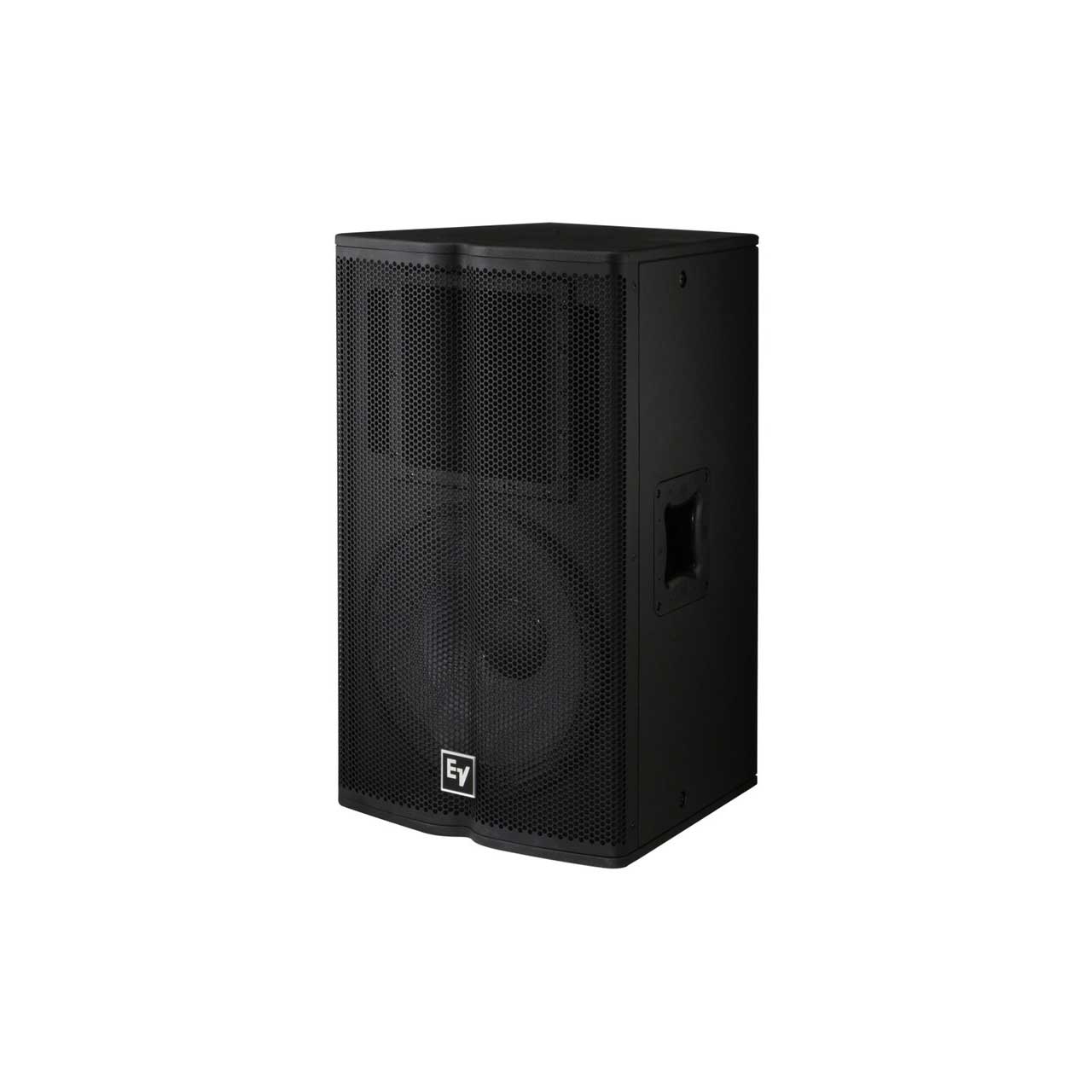

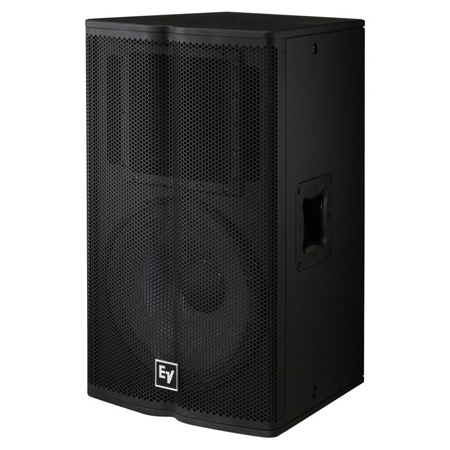

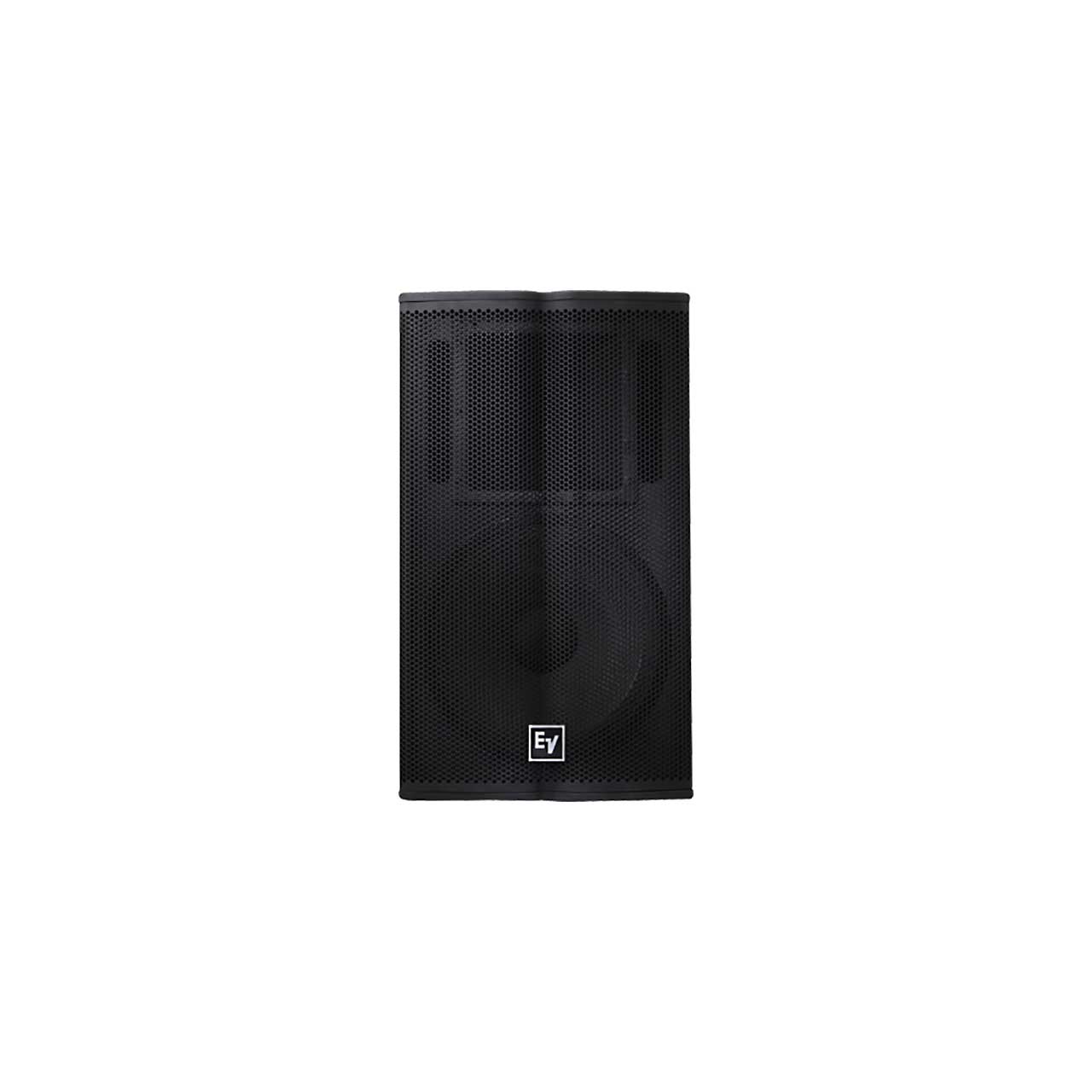

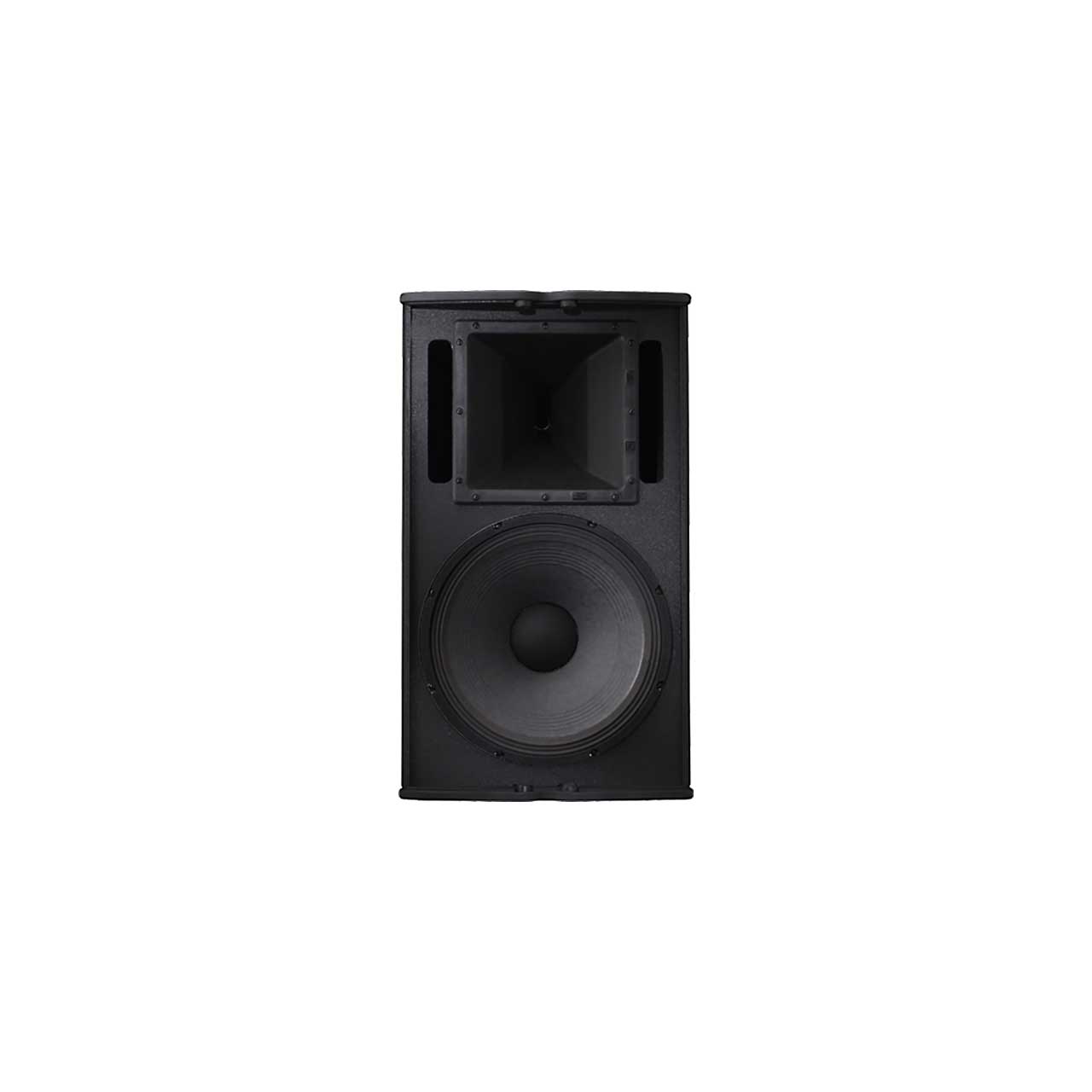

Electro-Voice TX1152 15in 2-Way Passive Tour X Speaker System - EACH

ITEM #: EV-TX1152 MFG #: TX1152

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$1,280.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TX1152 - Overview

    The Electro-Voice TX1152 fits the bill when the low frequency extension of a 15-inch woofer is required, along with outstanding pattern control from the rotate-able, larger 60 degree x 40 degree horn. Utilizing the incredibly low distortion SMX2150 15-inch woofer, the TX1152 boasts specs normally associated with loudspeakers priced well over twice as much.

    The aesthetically unique Backbone grille not only looks great, but also provides greater strength and damage resistance than simple grille block designs. Proprietary ergonomically correct handles and angled input panels, integrated pole mount and (6) 3/8-inch threaded suspension inserts make the TX1152 easy to transport and employ in a variety of applications.

    • Features:

      • Single 15" 2-way
      • 60° x 40° full-range
      • DH3 1.25" (32mm) diaphragm, 1" (25mm) exit pure titanium compression driver
      • SMX2151 15" (381mm) LF transducer with fully symmetric drive
      • Advanced 4th order crossover with HF protection
      • 60 degree x 40 degree rotatable coverage pattern
      • 100dB sensitivity, 133dB maximum SPL
      • 500W continuous 2000W peak power handling
      • Pole mount for tripod use

    • Specifications:

      • Freq. Response1 (-3 dB): 55 Hz - 20 kHz.
      • Freq. Range1 (-10 dB): 40 Hz - 20 kHz.
      • Rec. Hipass Frequency: 40 Hz.
      • Axial Sensitivity: 100 dB (1W/1m).
      • Max. Calculated SPL: 133 dB.
      • Horizontal Coverage: 60°, or 40°.
      • Vertical Coverage: 40°, or 60°.
      • Power Handling: 500W Continuous, 2000W Peak.
      • LF Transducer: SMX2151, 15 in (381mm) Driver.
      • HF Transducer: DH3, 1.25 in (32mm) Diaphragm Compression Driver.
      • Crossover Frequency: 1650 Hz.
      • Nominal Impedance: 8 Ohms.
      • Minimum Impedance: 5.6 Ohms.
      • Connectors: (2) Neutrik Speakon NL4's.
      • Enclosure Material: Plywood and MDF with EVCoatTM.
      • Grille: 16 GA Steel, Black Powdercoat, with Rotatable Logo.
      • Suspension: (6) 3/8" Threaded Points - (2) on Each Side and (2) on the Rear of Enclosure.
      • Dimensions (H x W x D): 30.6" x 17.5" x 17.5" (776mm x 446mm x 446mm).
      • Net Weight: 61.2 lbs (27.8 kg).
      • Shipping Weight: 68.7 lbs (31.2 kg).

    • GTIN:

      0800549769228
