EV XLE191 BLACK Three-way Compact Line Array Element
  • EV XLE191 BLACK Three-way Compact Line Array Element
  • EV XLE191 BLACK Three-way Compact Line Array Element

Questions? Ask a Markertek Expert:
800-522-2025 Email

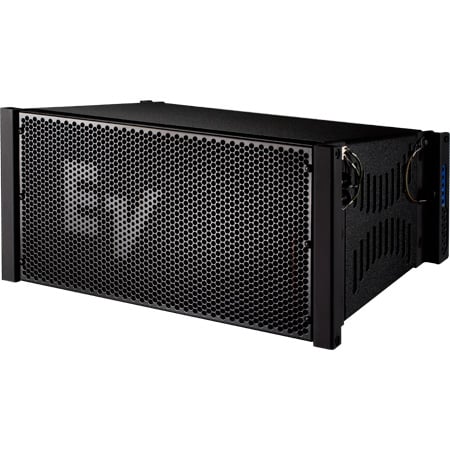

EV XLE191 BLACK Three-way Compact Line Array Element

Manufacturer: Electro-Voice

Item #: EV-XLE191-BK   •   MFG #: XLE191 BLACK




Our Price:$3,214.00

no free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • Drop-shipped (normal delivery time 2-7 business days) shipping truck freight. (Sales tax may apply)


Share!





The XLE191 is a 2 -way using a single 8" neodymium LF transducer and two neodymium 2" voice coil compression drivers combining through 2 hydrar plane wave generators into a 90° x 10° waveguide. The XLE191 can be used in biamp or full-range modes using a sophisticated internal passive network. Designed for use in arrays of four or more elements. The XLE191 delivers full bandwidth audio with
precise, predictable coverage control. Integrated rigging with hinge points located correctly between array elements is simple to use and quickly provides uncompromised line array performance. Groundstacking is easily done by using EV's XGS-4 Groundstack Kit for XLVC.

The XLVC family consists of two full-range systems with dual woofers, two full-range systems with single woofers and a subwoofer system. The dual-woofer versions include the XLD281 with a 120° horizontal coverage pattern and the XLD291 with a 90° horizontal coverage pattern. The singlewoofer versions include the XLE181 with a 120° horizontal coverage pattern and the XLE191 with a 90° horizontal
coverage pattern. The subwoofer module is the XS212. Most applications using flown very compact elements require subwoofers integrated into the same array as the full range systems. The XS212 sub woofer arrays can be created and flown behind the XLE191 full range array using an additional grid and EV's CBEAM (Coupler Beam). LAPS modeling software quickly provides array configurations and rigging information.

X-Line Very Compact delivers unprecedented performance in applications ranging from live reinforcement to performing arts venues, to houses of worship.


  • Features

    • Full-bandwidth, two-way elements
    • Most compact, very lightweight
    • Bi-amp or full-range operation
    • Neodymium transducers
    • Simple, quick, integrated rigging
    • Supported by LAPS II aiming and flying software

  • Specifications

    • Chassis Size 203.2 mm (8")
    • Color Black, White
    • Input Connections 2 Neutrik NL8
    • Peak SPL @ 10m 130 dB 4 Box Array @ 10 Meters
    • Speaker Type Line Arrays
    • Frequency Response (-3 dB) 65 - 16,200 Hz
    • Frequency Response (-10 dB) 56 - 16,700 Hz
    • Internal Crossover Yes
    • Recommended High-Pass Frequency 100 Hz
    • Sensitivity 1 W/1 m 99/113 dB Single Box @ 1 Meter
    • Max. SPL/1m (calc) 128/138 dB Single Box @ 1 Meter
    • Coverage (Nominal -6 dB) H 90 Ý
    • LF Transducer 1 x 8-in DVN2080
    • LF Power Handling 200 W continuous, 800 W peak Watts 750-1750 Hz
    • HF Power Handling 80 W continuous, 320 W peak Watts 1500-6500 Hz
    • LF Nominal Impedance 16 Ohm
    • HF Transducer 2 x 2-in ND2S
    • HF Nominal Impedance 16 Ohm
    • Nominal Impedance (Passive) 16 Ohm
    • Connector Type 2 Neutrik NL8
    • Enclosure Material EVCoat-coated birch plywood
    • Flying Included
    • Grill Powder-coated steel
    • Height 251 mm (9.88")
    • Width 516 mm (20.31")
    • Depth 369 mm (14.53")
    • Weight Net 17.24 kg (38.01 lbs)
