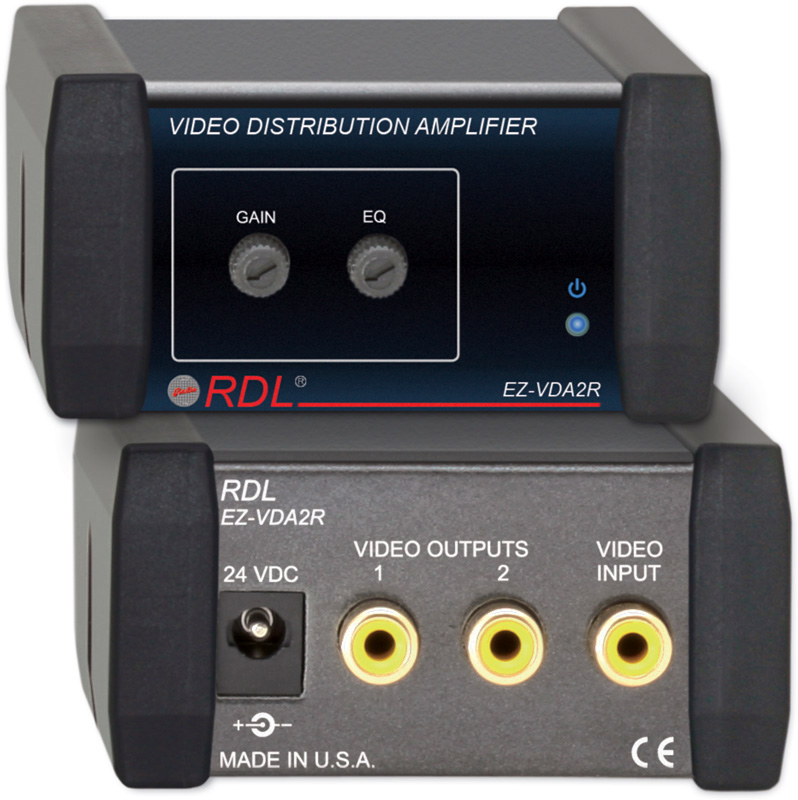

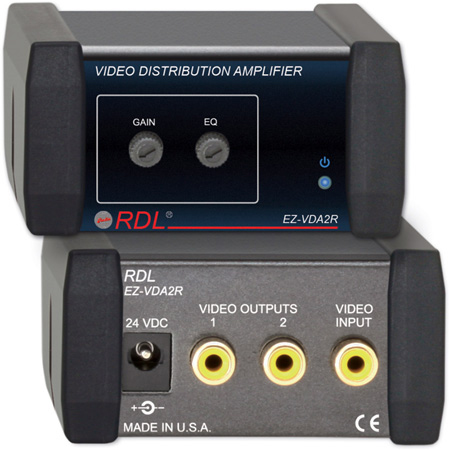

RDL EZ-VDA2R 1x2 NTSC/PAL Video Distribution Amplifier on RCA

ITEM #: EZ-VDA2R MFG #: EZ-VDA2R

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EZ-VDA2R

EZ-VDA2R - Overview

The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

  • Features:

    • Composite Input to Two Composite Outputs
    • Front-Panel GAIN and EQ Trimmers
    • Operation with NTSC or PAL Signals
    • 75 Ohm Terminated Input
    • Input and Outputs on Gold-Plated Gold-Plated RCA Jacks
    • Wide Bandwidth > 400 MHz
    • Gold Plated Professional BNC Jacks
    • Wide Bandwidth Supports High Quality Video
    • Exceptional Performance in a Small Amplifier

  • Specifications:

    • Input: 75 Ohm on BNC jack
    • Input level: 1 V p-p nominal
    • Gain: Unity to +6 dB (adjustable)
    • Bandwidth: > 400 MHz
    • Coupling: AC
    • Differential Gain: < 0.1%
    • Differential Phase: < 0.1 degree
    • Equalization: Flat to +7 dB @ 50 MHz (adjustable)
    • Residual Noise: < -90 dB (referenced to 1 V p-p)
    • Outputs (2): 75 Ohm source-terminated on BNC jacks, 1 V p-p nominal (terminated)
    • 24 Vdc power supply current: 20 mA (idle), 30 mA (max.)
    • Case dimensions: 2.9" (7.4 cm)W x 3" (7.6 cm)D
    • Mounting size: 1/6 rack width.
    • Power supply included

  • GTIN:

    0813721010162
