RDL EZ-VDA3B 1x3 NTSC/PAL Video Distribution Amplifier on BNC

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

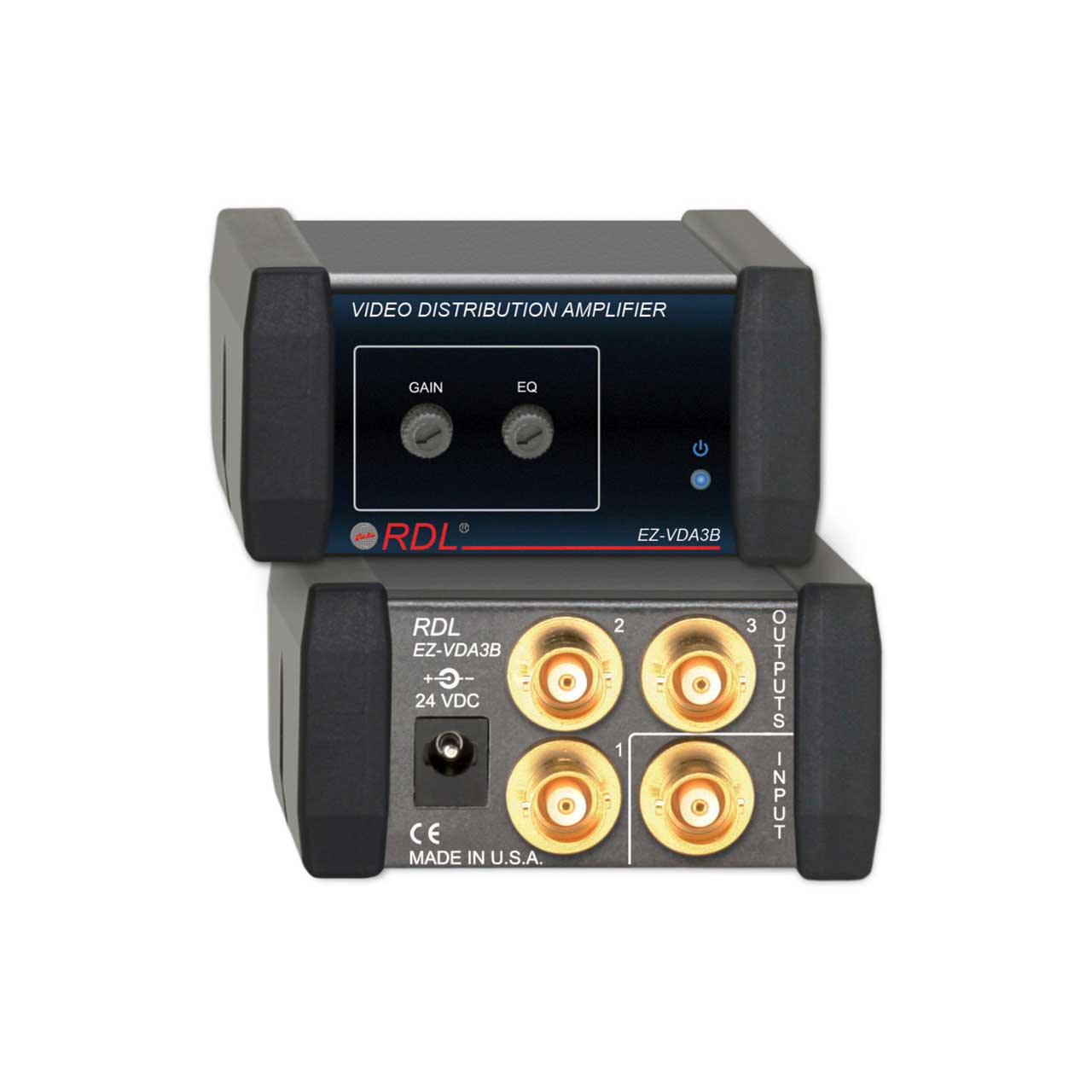

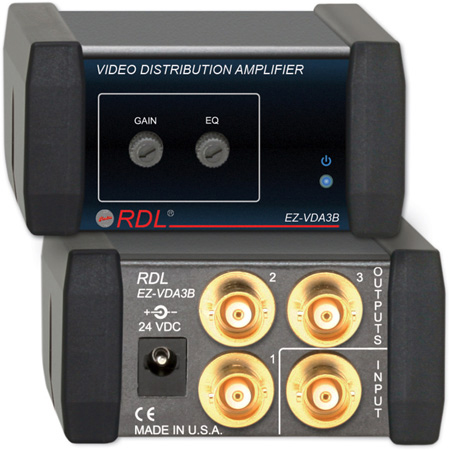

    RDL EZ-VDA3B 1x3 NTSC/PAL Video Distribution Amplifier on BNC

    Manufacturer: Radio Design Labs

    Item #: EZ-VDA3B   •   MFG #: EZ-VDA3B



    List Price:$180.40
    Our Price:$130.95

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




      Share!





      The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.


      • Features

        • Composite Input to Three Composite Outputs
        • Front-Panel GAIN and EQ Trimmers
        • Operation with NTSC or PAL Signals
        • 75 Ohm Terminated Input
        • Input and Outputs on Gold-Plated BNC Jacks
        • Wide Bandwidth > 400 MHz
        • Gold Plated Professional BNC Jacks
        • Wide Bandwidth Supports High Quality Video
        • Exceptional Performance in a Small Amplifier

      • Specifications

        • Input: 75 Ohm on BNC jack
        • Input level: 1 V p-p nominal
        • Gain: Unity to +6 dB (adjustable)
        • Bandwidth: > 400 MHz
        • Coupling: AC
        • Differential Gain: < 0.1%
        • Differential Phase: < 0.1 degree
        • Equalization: Flat to +7 dB @ 50 MHz (adjustable)
        • Residual Noise: < -90 dB (referenced to 1 V p-p)
        • Outputs (3): 75 Ohm source-terminated on BNC jacks, 1 V p-p nominal (terminated)
        • 24 Vdc power supply current: 20 mA (idle), 30 mA (max.)
        • Case dimensions: 2.9" (7.4 cm)W x 3" (7.6 cm)D
        • Mounting size: 1/6 rack width.
        • Power supply included
