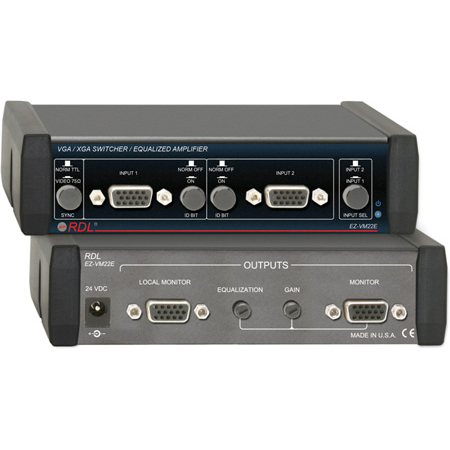

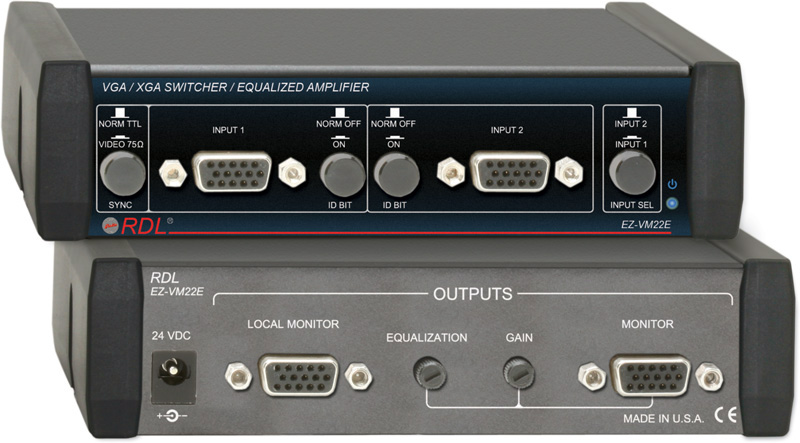

RDL EZ-VM22E VGA/XGA Switcher/Equalized Amp - 2 Inputs & 2 Outputs

Manufacturer: Radio Design Labs

Item #: EZ-VM22E   •   MFG #: EZ-VM22E



List Price:$250.03
Our Price:$187.49

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.




    Share!





    The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.


    • Features

      • Inputs and Outputs on HD15 Female Connectors
      • Two Front-Panel Switch-Selectable Inputs
      • Wide RGB Bandwidth > 470 MHz Loaded
      • High Resolution Compatibility VGA through QXGA
      • Solid-State Switching of Video and Sync Signals
      • Reliable Full-Size Switches for Switched Functions
      • Switch-Selectable TTL or Video 75 Ohm Input Sync
      • NORM ID BIT Connects LOCAL MONITOR and INPUT 1 ID
      • Front-Panel ID Bit Selection for Each Input
      • DC RGB Coupling, Output Polarity & Offset Follow Input
      • Rear-Panel GAIN and EQ Peaking Trimmers
      • All Selector Switches Easily Accessible on Front-Panel

    • Specifications

      • Inputs (2): VGA - QXGA RGBHV or RGB with combined sync
      • Outputs (2): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT 1), MONITOR (1, with GAIN and EQ trim)
      • Gain: Unity (LOCAL MONITOR output), Unity to +6 dB (MONITOR output)
      • Equalization (peaking): None (LOCAL MONITOR output), Adjustable 0 to +8 dB at 50 MHz (MONITOR output)
      • Video bandwidth: > 470 MHz
      • Output offset: ±5 mV typ. (75 ? load)
      • Video impedance: 75 ? (Input and output)
      • Sync (HV) input: 500 ? TTL or 75 ? Video (Switch-selectable), 0.7 V to 5 V p-p
      • Sync (HV) output: 5V TTL
      • Sync (HV) Propogation Delay: < 4 nS typ.
      • Sync (HV) Rise Time: < 4 nS typ.
      • Sync (combined): Output follows input
      • Bit Control: Switch-selectable (individual selector per input, pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
      • 24 Vdc power supply current: 70 mA (idle), 80 mA (max.)
      • Case dimensions: 5.75" (14.6 cm)W x 5" (12.7 cm)D
      • Mounting size: 1/3 rack width.
      • Power supply included
