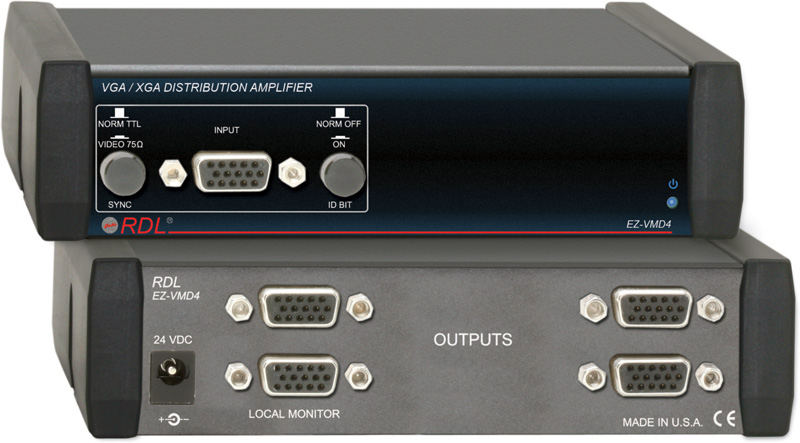

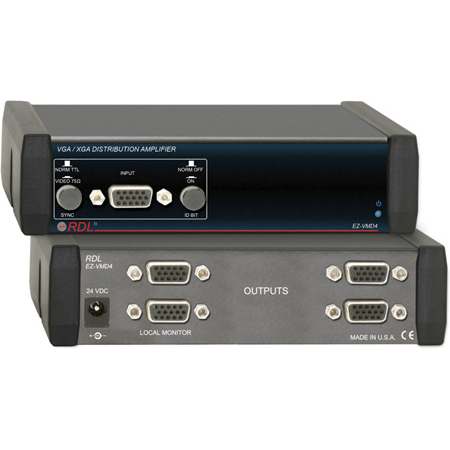

RDL EZ-VMD4 VGA/XGA Distribution Amplifier - 1x4

ITEM #: EZ-VMD4 MFG #: EZ-VMD4

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the EZ-VMD4

EZ-VMD4 - Overview

The EZ series offers unparalleled flexibility. Each unit is fully labeled on the front and rear for use either as a finished product or as a utility module. Installation of multiple products is quick and easy using the comprehensive range of EZ rack mounts, chassis, bezels, drawers and accessories. High quality full-size switches, long life controls, quality connectors, solid-state audio and video switching, gold plating and superior engineering combine to make EZ the best value in the industry. EZ products are attractive, reliable, packed with features and are simple to install and operate. When long-term performance, quality and value matter, the choice is EZ.

  • Features:

    • Input and Outputs on HD15 Female Connectors
    • One Local Monitor Plus Three Monitor Outputs
    • Wide RGB Bandwidth > 470 MHz Loaded
    • High Resolution Compatibility VGA through QXGA
    • Reliable Full-Size Switches for Switched Functions
    • Switch-Selectable TTL or Video 75 Ohm Input Sync
    • NORM ID BIT Connects LOCAL MONITOR and INPUT ID
    • Front-Panel Input ID Bit Selection
    • DC RGB Coupling, Output Polarity & Offset Follow Input
    • All Selector Switches Easily Accessible on Front-Panel
    • Ideal Weight and Size for Portable Computer Case

  • Specifications:

    • Input: VGA - QXGA RGBHV or RGB with combined sync
    • Outputs (4): LOCAL MONITOR (1, Buffered, ID bit pass-thru to INPUT), OUTPUTS (3, buffered separately from LOCAL MONITOR)
    • Gain: Unity
    • Video bandwidth: > 470 MHz
    • Video impedance: 75 Ohm (Input and output)
    • Sync (HV) input: 500 Ohm TTL or 75 Ohm Video (Switch-selectable), 0.7 V to 5 V p-p
    • Sync (HV) output: 5V TTL
    • Sync (HV) Propogation delay: < 4 nS typ.
    • Sync (HV) Rise time: < 4 nS typ.
    • Sync (combined): Output follows input
    • Bit Control: Switch-selectable (Pin 4, over-rides LOCAL MONITOR jack ID bit pass-thru)
    • 24 Vdc power supply current: 70 mA (idle), 90 mA (max.)
    • Case dimensions: 5.75" (14.6 cm)W x 5" (12.7 cm)D
    • Mounting size: 1/3 rack width.
    • Power supply included

  • GTIN:

    0813721010216
