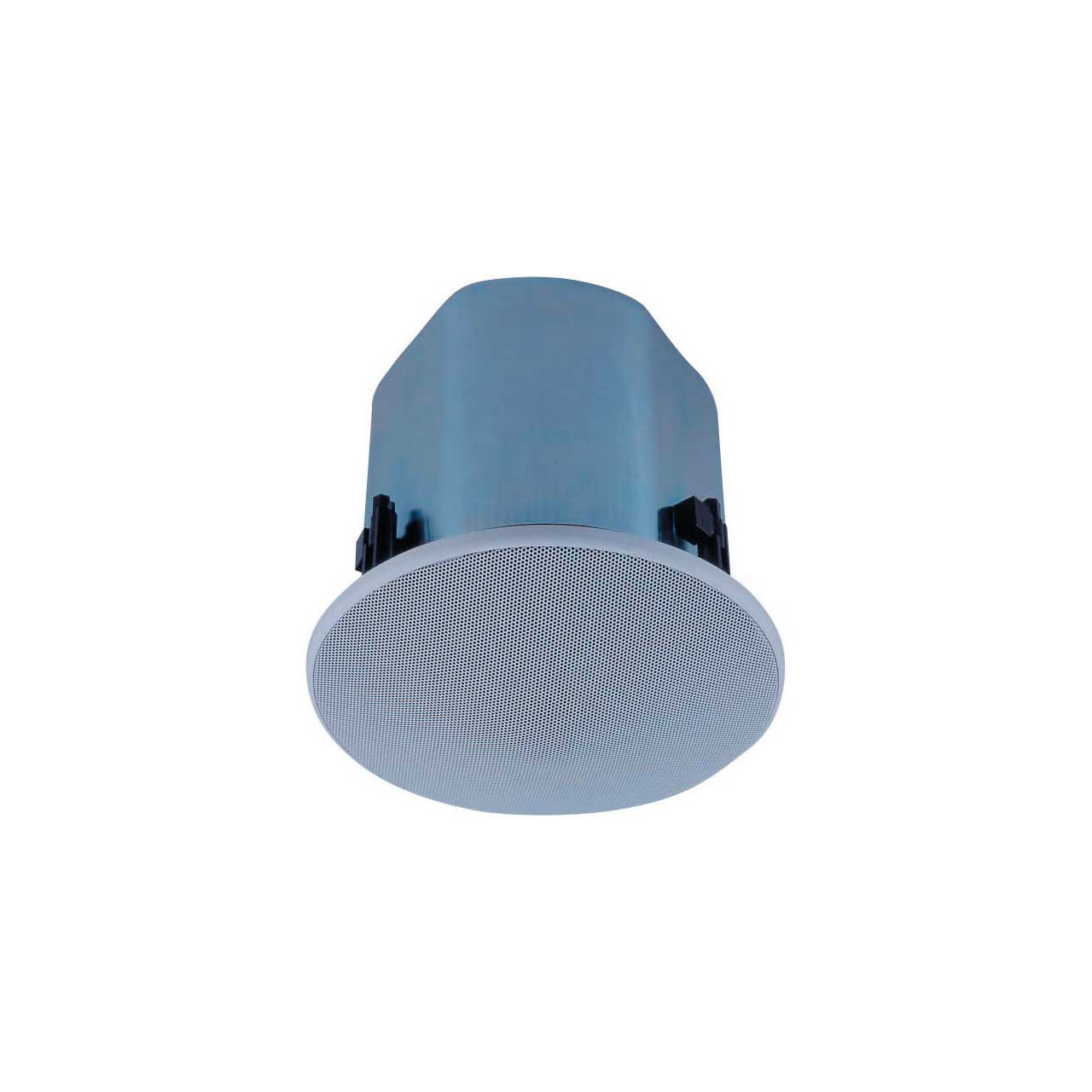

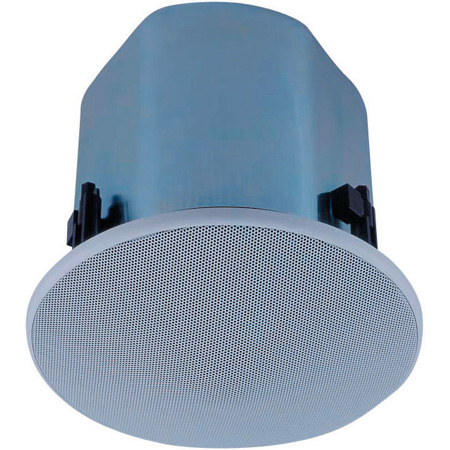

TOA F-2352C 5-inch Co-axial Ceiling Speaker

ITEM #: F-2352C MFG #: F-2352C

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$176.40

Our Price:

$142.50

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


F-2352C - Overview

TOA introduces a new range of ceiling-mounted
speakers that have been designed and engineered to
overcome limiting factors that have been associated
with conventional ceiling-mount speakers. Most
noticeable has always been the high-frequency rolloff
that resulted from limited speaker dispersion
characteristics. TOA's new ceiling speaker range
provides well-balanced audio reproduction without
treble attenuation over an expanded listening area
thanks to the extra-wide dispersion characteristics
that are part of the overall speaker design. Perceived
speaker directionality and beaming tendencies are
minimized, resulting in a natural, well-balanced sound
over a wide area at all levels. Conventional speakers
exhibit high frequency rolloff characteristics as the
distance between speaker and listener increases.
However TOA believes that an ideal ceiling-mounted
speaker's response characteristics should include
wide dispersion and non-frequency dependent
directionality and this new ceiling speaker series
proves that.

  • Features:

    • Standard 2-way ceiling speaker for applications requiring a full range
    • frequency response. (recommended 2 to 4m)
    • Equipped with back can meeting heat-resistant specifications.
    • Equipped with a diffuser for wide dispersion of high frequencies

  • Specifications:

    • Active or Passive:Passive
    • Frequency Response: 70Hz-20kHz
    • Power Capacity Continuous Pink Noise: 60W (8 ohms)
    • Continuous Program: 120W (8 ohms)
    • Maximum Sound Pressure Level (SPL) 90 db (1W, 1 m)
    • Nominal Sensitivity 90 dB
    • Impedance 100V line: 330 ohms (30W)
    • 70V line: 170 ohms (30W)
    • 25 V line: 170 ohms (3.7W)
    • Crossover Not Specified by Manufacturer
    • Shielded Not Specified by Manufacturer
    • Low Frequency Driver 5" Cone-type
    • High Frequency Driver Balanced Dome-type
    • Enclosure Material Steel Plating
    • Input Connections Input Terminal: x2
    • Bridge Terminal: x2
    • Environmental Not Specified by Manufacturer
    • Dimensions: 9.1 x 9.05" (230 x 229mm)
    • Weight: 8.2 lbs (3.7 kg)


F-2352C - Required Accessories
