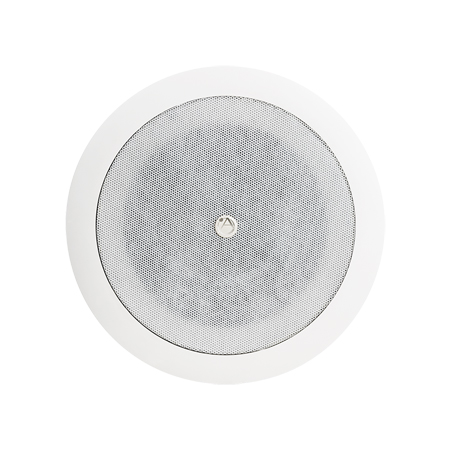

    Atlas FAP42T-UL2043 4 Inch 2-Way Weather Resistant Speaker

    Manufacturer: Atlas Sound

    Item #: FAP42T-UL2043   •   MFG #: FAP42T-UL2043








    Quantities:





    Share!





    The new FAP42T-UL2043 from Atlas Sound meets requirements of UL 2043 for loudspeakers used in air handling (true plenum) spaces. FAP42T-UL2043 combines superior coaxial loudspeaker performance with wide dispersion and easy installation.

    A low profile enclosure and wide coverage make the FAP42T-UL2043 a perfect choice for low ceilings.

    The FAP42T-UL2043 will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

    The FAP42T-UL2043 is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.


    • Features

      • 4 Pole detachable "phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
      • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg" mounting system (Included)
      • Easy installation in drop tile or sheetrock ceilings via C-ring/V-rail tile bridge and "dog leg"mounting system (Included)
      • Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
      • Extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
      • Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
      • Perfect companion with the FAPSUB subwoofer system when sub bass is required
      • Press-fit grille blends perfectly into contemporary architecture

    • Specifications

      • Depth 8 7/8" (22.5425 cm)
      • Diameter 10 1/2" (26.67 cm)
      • Shipping Weight 12.00 lbs (5.44 kgs)
      • Frequency Response 75Hz - 20kHz
      • Power Taps 1, 2, 4, 8, 16
      • Speaker Type Coaxial
      • Dispersion 130°
      • Sensitivity 88dB Average
      • UL Listed/Standard 1480 / 2043
