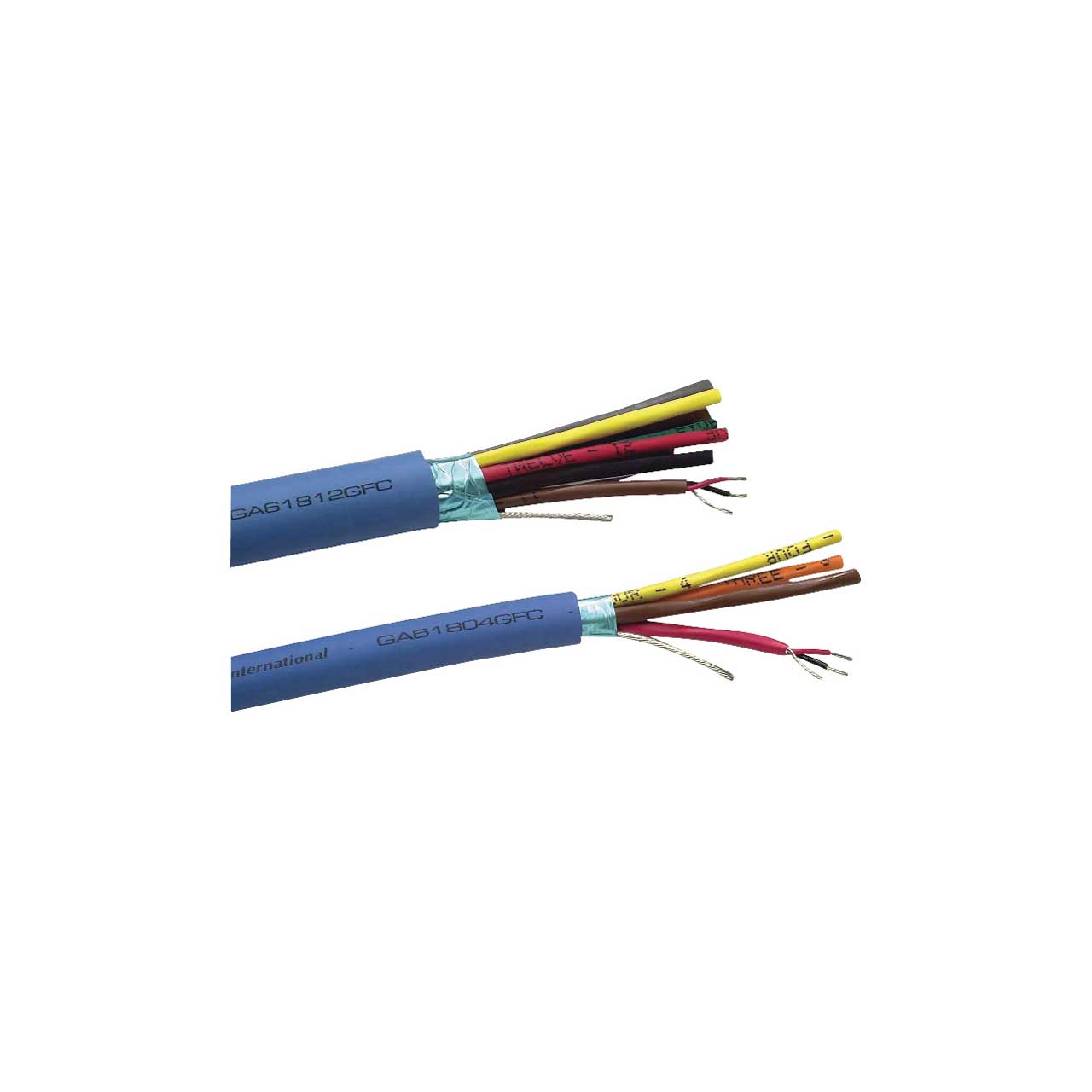

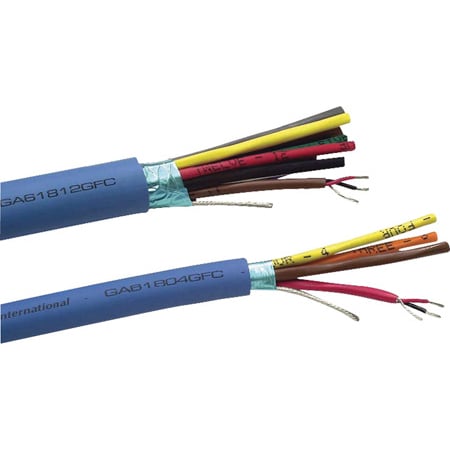

Gepco GA61808GFC Gep-Flex Multipair 22 AWG Mic or Line Level Balanced Analog Audio Cable 8 Pair Per Foot

ITEM #: GA61808GFC MFG #: GA61808GFC

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$5.23

Our Price:

$4.06

Availability: In Stock
iAvailability Description Popup


    GA61808GFC - Overview

    The original Gepco Brand multi-pair cable, the GA618 series multi-pair, was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high-frequency attenuation, while excellent process control and tight pair twisting achieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the riser rated Gepco Brand GEP-FLEX master jacket is both flexible and easy to pull through conduit. The 22-gauge conductors offer the lowest DCR available in any of the Gepco Brand multi-pair products, making the GA618 series ideal for extended distance runs of mic level signals.

    Sold in 50 Foot Increments Only!

    • Features:

      • Low Attenuation & Crosstalk
      • Flexible
      • Easy to Terminate
      • Microphone or Line Level Balanced Analog Audio
      • Studio Interconnect, Portable Snakes or Permanent Installation
      • Ideal for Extended-Distance Runs
      • Polyethylene Dielectric
      • Individually Shielded & Jacketed Pairs
      • Color Coded & Alphanumeric Pair Identification
      • Additional Overall Foil Shield
      • All-Weather GEP-FLEX Master Jacket
      • CMR Riser Rated

    • Specifications:

      • Nominal OD 0.570"
      • Conductors: 22 AWG (7x30) Stranded TC
      • Insulation/Color Code: PE, 0.010" Wall/Red & Black
      • Pair Shield:100% Foil
      • Pair Drain: 22 AWG (7x30) Stranded TC
      • Pair Jacket (Type, OD) / Color Code: PVC, 0.140"/Black
      • Overall Shield: 100% Foil
      • Overall Common Drain: 16 AWG (19x29) Stranded TC
      • Master Jacket: Riser GEP-FLEX TPE, Blue
      • UL Type: CMR
