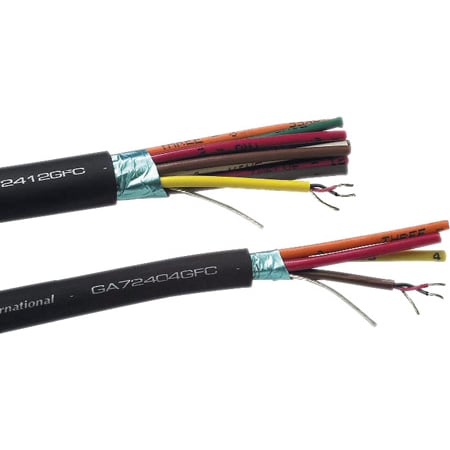

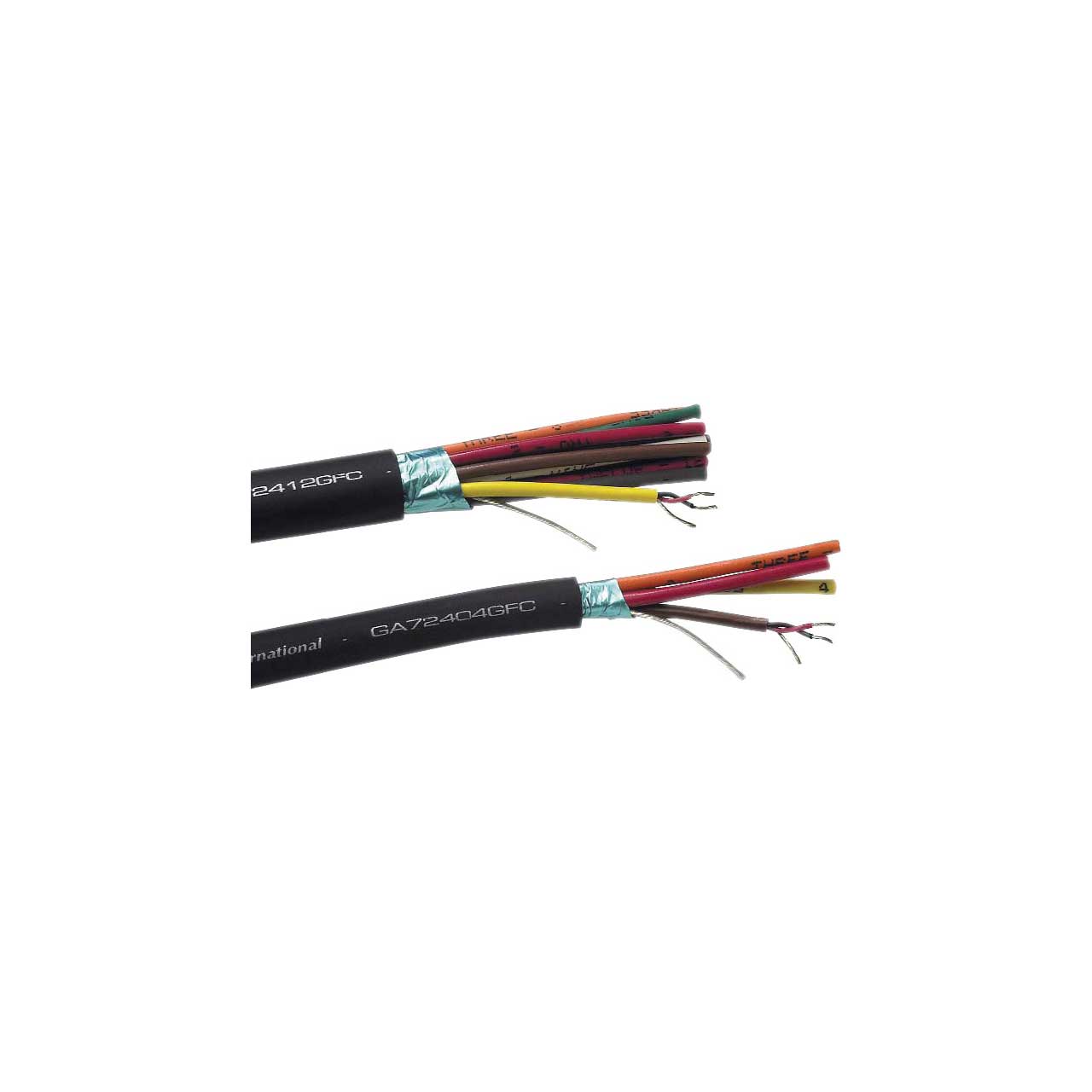

Gepco GA72402GFC Gep-Flex Multipair 24 AWG Mic or Line Level Balanced Analog Audio Cable 2-Pair Per Foot

ITEM #: GA72402GFC MFG #: GA72402GFC

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.57

Our Price:

$1.20

Availability: In Stock
iAvailability Description Popup


    GA72402GFC - Overview

    Gepco GA72402GFC is a thin-profile version of the Gepcor Brand easy-strip multipair, the GA724 series was designed for low noise and attenuation and is durable, easy to terminate and UL listed. A high-grade polyethylene dielectric minimizes high frequency attenuation, while excellent process control and tight pair twisting achieve superior noise rejection. Color coded and alphanumerically printed pairs facilitate easy channel identification, and the GEPFLEX master jacket is both flexible and easy to pull through conduit. The 24-gauge conductors are easier to terminate while still maintaining low DCR. The GA724 series is ideal for cable assemblies, patchbay wiring or portable snakes.

    • Features:

      • Ideal for Patchbay Wiring & Multi-Pin Cable Assemblies
      • Microphone or Line Level Balanced Analog Audio
      • Studio Interconnect, Portable Snakes or Permanent Installation
      • Low Attenuation & Crosstalk
      • Flexible
      • Easy to Terminate
      • Polyethylene Dielectric
      • Individually Shielded & Jacketed Pairs
      • Color Coded & Alphanumeric Pair Identification
      • Additional Overall Foil Shield
      • All-Weather GEP-FLEX Master Jacket
      • CM Rated

    • Specifications:

      • Nominal OD 0.320"
      • Conductors: 24 AWG (7x32) Stranded TC
      • Insulation/Color Code: PE, 0.008" Wall/Red & Black
      • Pair Shield: 100% Foil (Bonded)
      • Pair Drain: 24 AWG (7x32) Stranded TC
      • Pair Jacket (Type, OD)/ Color Code: PVC, 0.115"/Black
      • Overall Shield: 100% Foil
      • Overall Common Drain: 20 AWG (19x32) Stranded TC
      • Master Jacket: Riser GEP-FLEX TPE, Black
      • UL Type: CM
