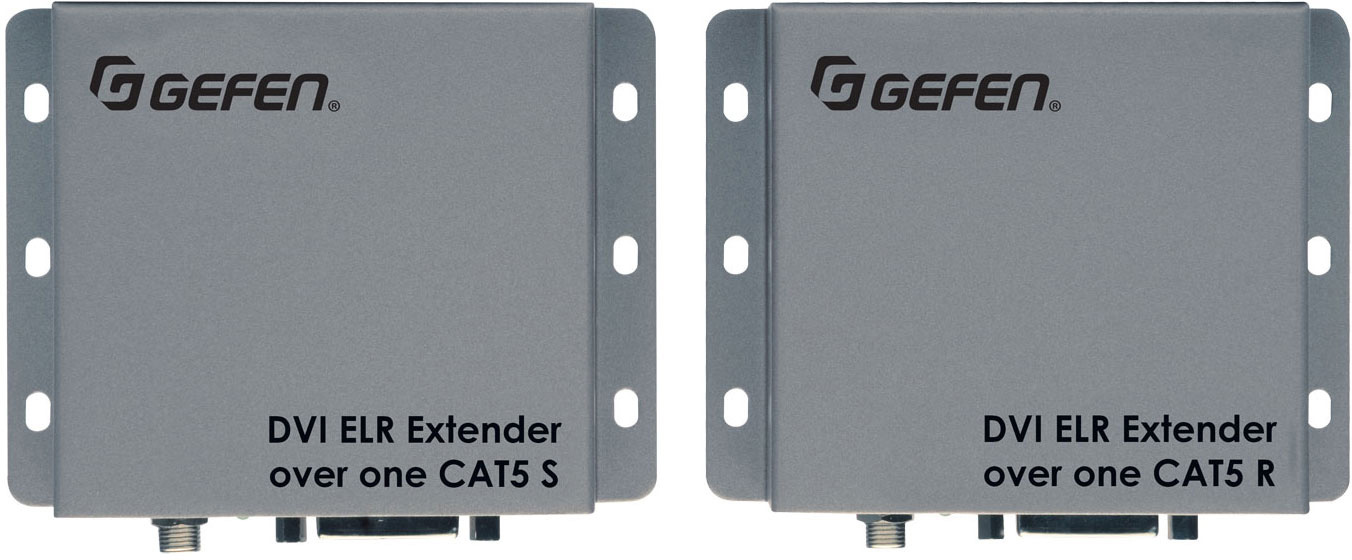

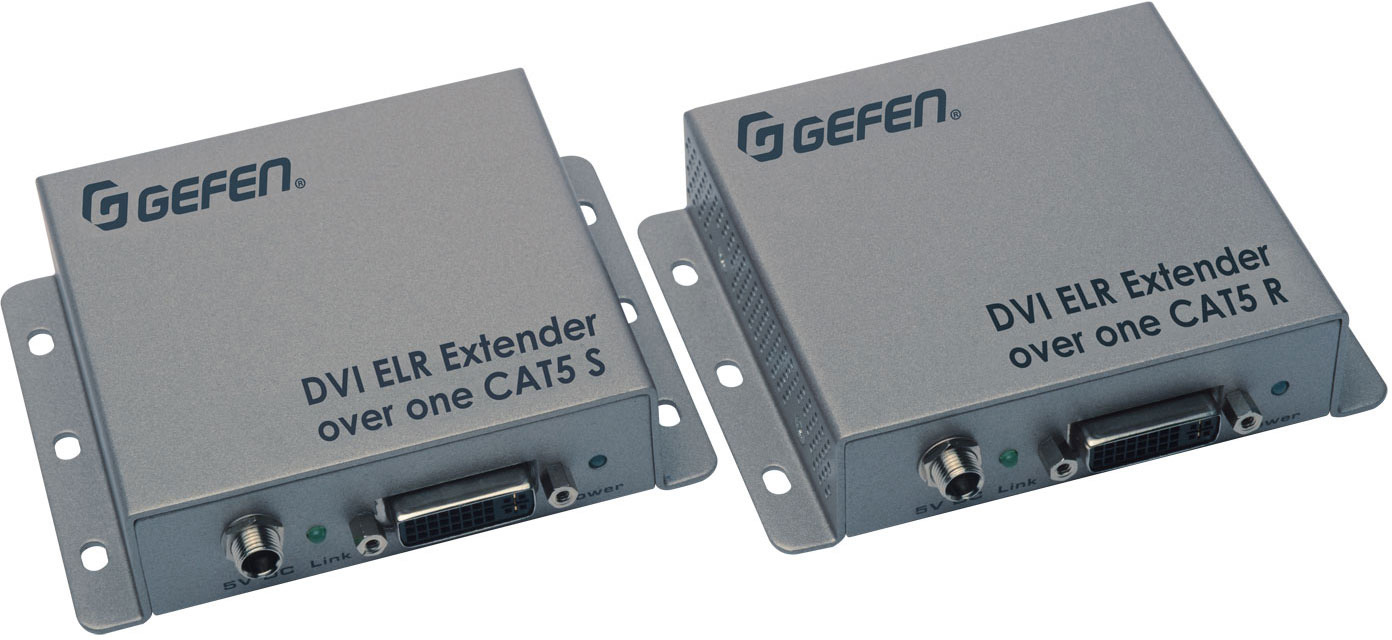

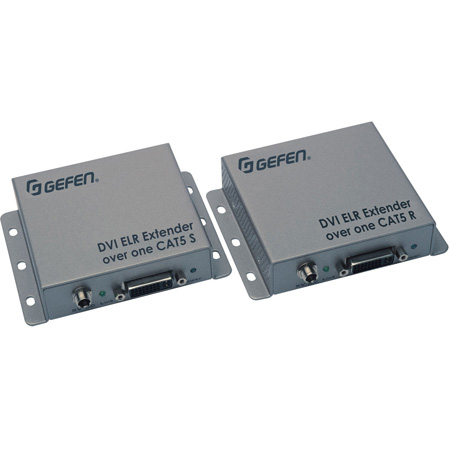

The DVI ELR Extender over one CAT5 allows the extension of a DVI source to a display, up to 495 feet (150 meters), using a single CAT-5e cable. This product is capable of HDCP and HPD pass-through. It can also be configured by the installer via DIP switches for maximum range or maximum bandwidth, and for low power consumption (auto sleep mode) or always-on operation. The DVI Extender over one CAT5 uses Gefen's ELR implementation of HDBaseT technology, allowing the DVI signal to travel along a single CAT-5e or better cable, reducing cable costs and facilitating installation.
How it Works

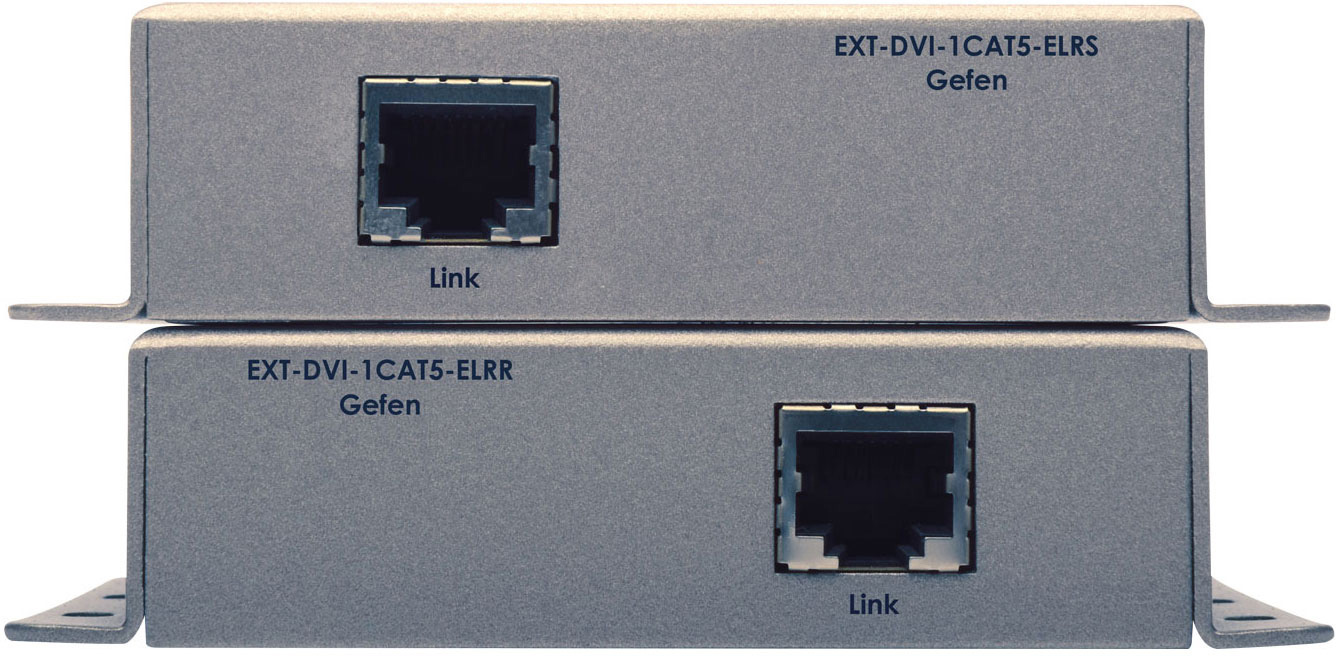

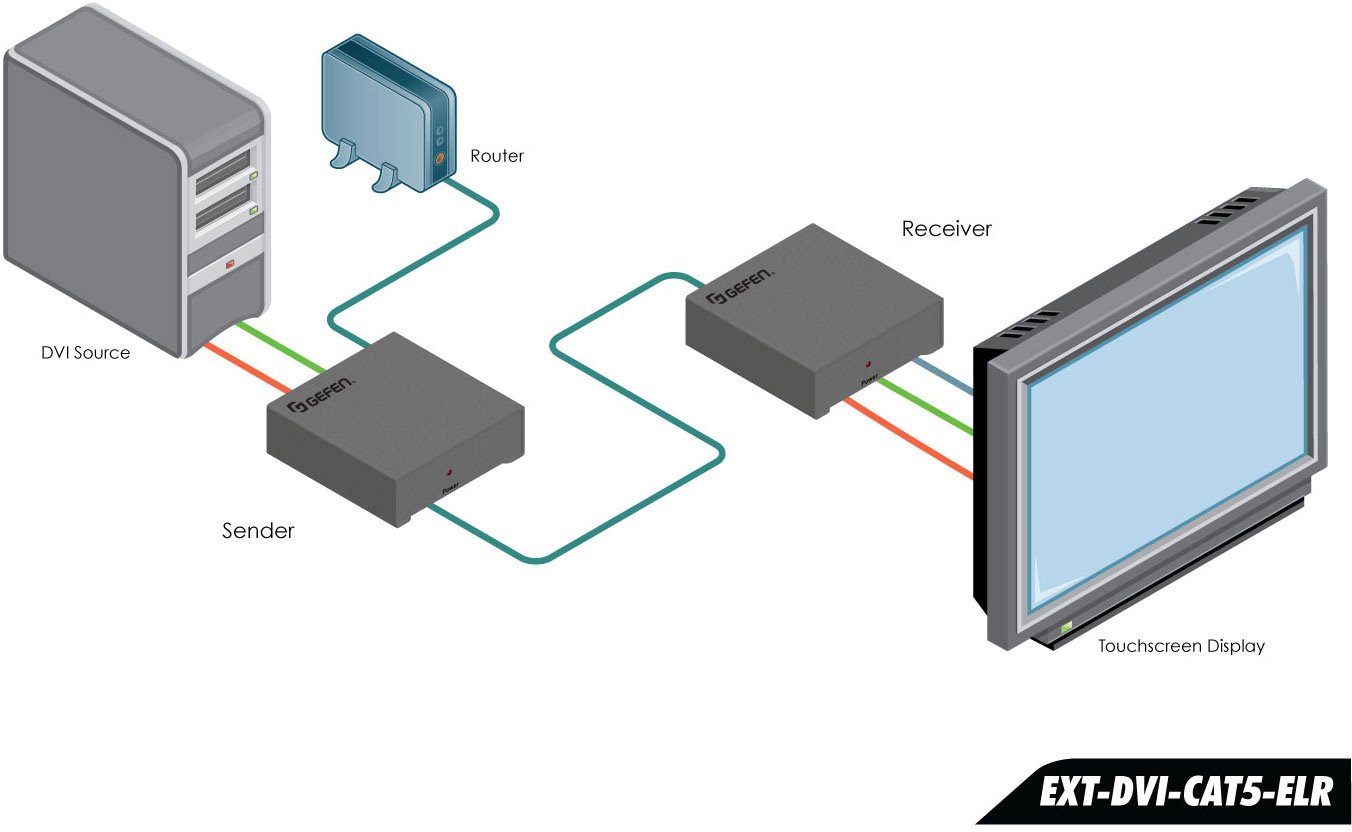

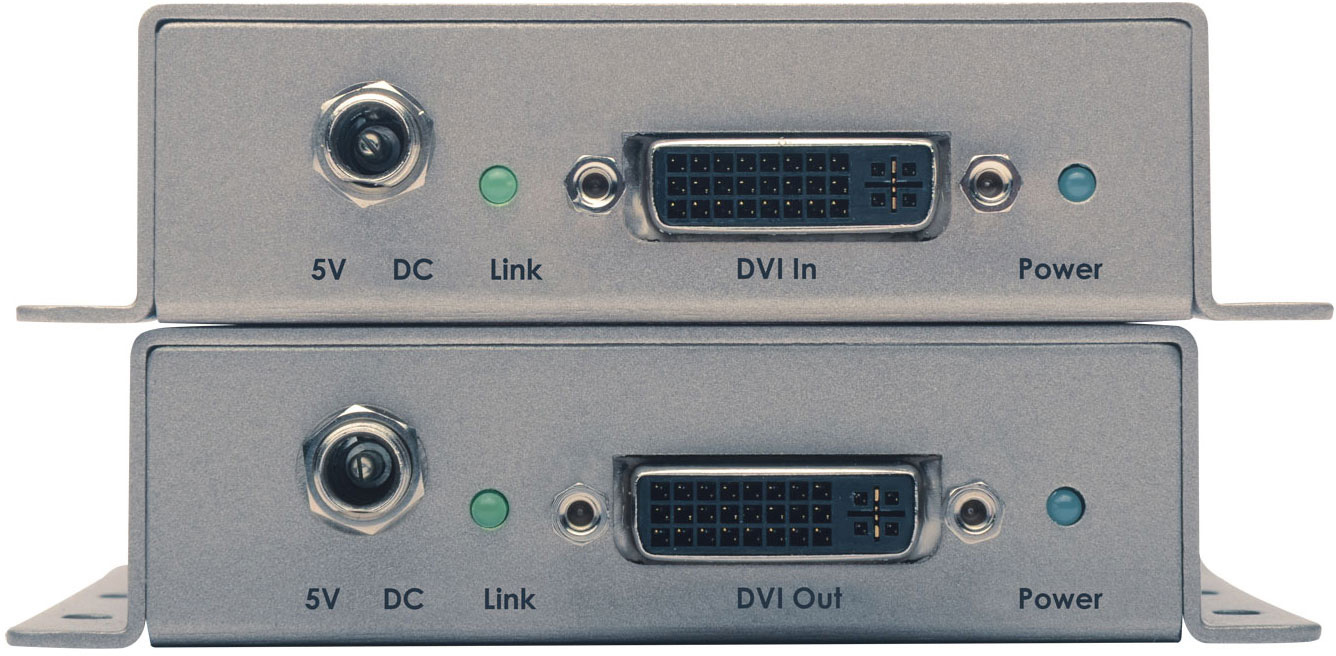

Use the included DVI cable to connect the computer or other DVI source to the Sender unit. Connect the Receiver unit to a Hi-Def display with a DVI cable. Use up to 495 feet (150m) of CAT-5e cable to connect the Sender to the Receiver unit. Configure DIP switches as necessary. Connect the included locking power supplies to the Sender and the Receiver units and plug the power supplies to available electrical outlets. Power on all connected equipment.
