Gepco 164NCAT.99 4 Conductor Multi-Conductor Cable 12 AWG - Per Foot

ITEM #: GEP-164NCAT99-FT MFG #: 164NCAT.99

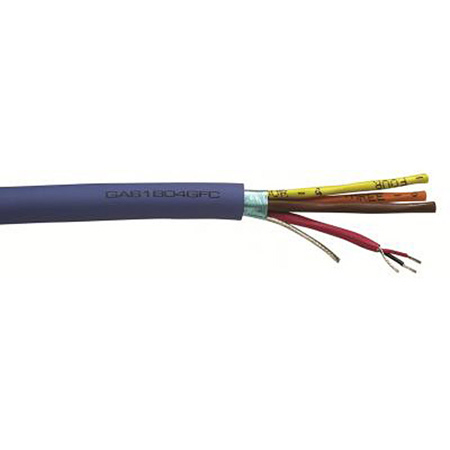

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the GEP-164NCAT99-FT

164NCAT.99 - Overview

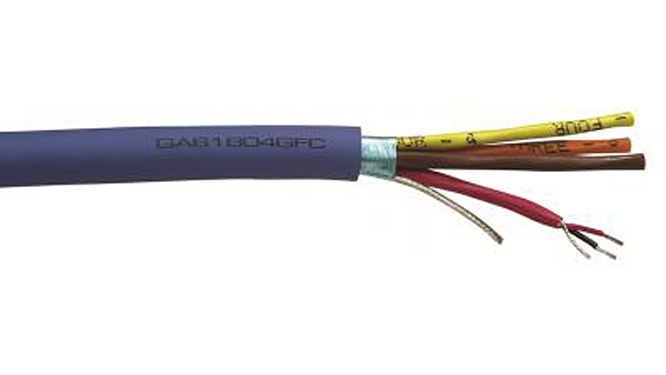

The 164NCAT.99 is general purpose Cat5E and audio hybrid cable.

  • Features:

    • Cat5E Element
    • Four Audio Conductors
    • Common Outer Jacket with Color Stripe
    • Available in 16 or 14 Gage
    • PVC Jacket
    • UL Rated for Permanent Installation


  • Specifications:

    • Cat5e Elements (#, Color): 1, Gray
    • Audio Conductors (#; Color; DCR; Cap): 4x16 AWG (65x34); Stranded BC; Black, Red, White, Green; 4.0ΩΩ/Mft; 48.4 pF/ft
    • Master Jacket (Type, Color): PVC, Teal with Gray Stripe
    • Overall Diameter: 0.388"
    • Approx. Weight: 93 lbs/Mft


  • GTIN:

    0612825400899
