GME HG139 Handheld HDTV Pattern Generator w/Component Video Output

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

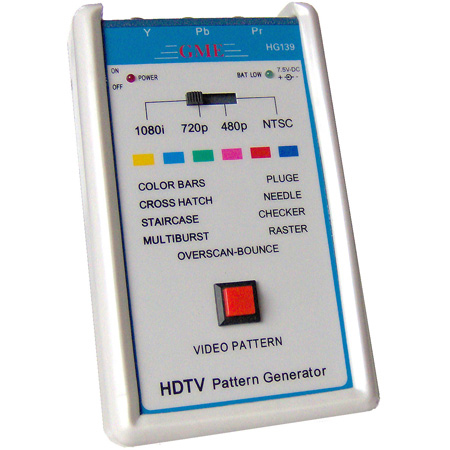

    GME HG139 Handheld HDTV Pattern Generator w/Component Video Output

    Manufacturer: GME Technology

    Item #: GME-HG139   •   MFG #: GME-HG139








    Models:





    Share!





    The HG139 is an easy-to-use Handheld Video Pattern Generator that generates a wide variety of test patterns for comprehensive testing, calibration, and repair of HDTV, analog television monitors, and other video equipments. The HG139 delivers the quality and functionality you would expect from the expensive high end HDTV pattern generator at a very affordable price. With its easy to understand interface, the HG139 is designed to meet the need of people from all levels ranging from novice to video professionals.

    Model PG-16A Pattern Generator is the perfect tool for those who need to quickly and easily troubleshoot, test, and align NTSC television, PC and Mac computer monitors. It features a wide range of testing resolutions for computer monitors ranging from 640x350 to 1600x1200. The video patterns generated by the PG-16A provide accurate and comprehensive TV/Monitor troubleshooting and testing. User friendly interface for easy operation.

    Model PG-28 NTSC Pattern Generator can be used to quickly and easily troubleshoot, test, and align NTSC television. Features a wide selection of popular video patterns including Color Bars, Crosshatch, Dot, Staircase, Circle, Center Cross, Window, and Raster for accurate and comprehensive TV troubleshooting and testing. Supports both progressive and interlace scanning system. Composite video and S-Video output. 1KHz audio tone for audio troubleshooting. User friendly interface for easy operation.

    Model PG-38 NTSC Pattern Generator can be used to quickly and easily troubleshoot, test, and align NTSC television. Features a wide selection of popular video patterns including Color Bars, Crosshatch, Dot, Staircase, Circle, Center Cross, Window, and Raster for accurate and comprehensive TV troubleshooting and testing. Supports both progressive and interlace scanning system. Composite video and S-Video output. RF video output on Channel 3 with 1KHz audio tone for audio troubleshooting. User friendly interface for easy operation.


    • Specifications

      • HG139:
      • Designed for testing, calibration, and service of High Definition TV and NTSC analog television
      • 4 selectable modes including 1080i, 720p, 480p, and NTSC
      • 9 commonly used video test patterns including COLOR BARS, CROSS HATCH, STAIRCASE, MULTIBURST, OVERSCAN-BOUNCE, PLUGE, NEEDLE, CHECKER, and RASTER (choose from White, Yellow, Cyan, Green, Magenta, Red, Blue, and Black)
      • Single push button selectable patterns with hold down reverse
      • Precise 74.25 MHz HDTV clock frequency
      • Conform with SMPTE and NTSC industrial video standards
      • AC adaptor power source or standard 9v battery operation
      • Low battery indicator
      • Ideal for on-the-bench and in-the-field testing
      • Easy to use, lightweight, portable, and affordable

      • PG-16A:
      • Two video connectors for monitor: Analog 15-HD (PC) and Analog 15-DB (Mac)
      • Two video connectors for TV: Composite Video and S-video
      • TV testing:
      • Scanning system: interlace;
      • Composite video: 1.0Vp-p into 75 ohms;
      • S-video: Chrominance output: 0.6v p-p into 75 ohms; Luminance plus Sync Output: 0.8Vp-p into 75 Ohms
      • Low battery indicator
      • Power: Standard 9V Battery or external AC adapter
      • Dimension: 5.7­"(H) x 3.8­"(W) x 1.5­"(D)

      • PG-28:
      • SCANNING SYSTEM: Interlace and Progressive
      • COMPOSITE VIDEO: 1.0V p-p into 75 Ohms
      • S-VIDEO: Chrominance output: 0.6Vp-p into 75 ohms; Luminance plus Sync Output: 0.8Vp-p into 75 Ohms
      • Sound: 1 KHz audio tone
      • Power: Standard 9V battery or external AC adapter
      • Dimensions: 5.7­"(H) x 3.8­"(W) x 1.5­"(D)

      • PG-38:
      • SCANNING SYSTEM: Interlace and Progressive
      • RF OUTPUT: CH3 = 61.25 MHz
      • COMPOSITE VIDEO: 1.0V p-p into 75 Ohms
      • S-VIDEO: Chrominance output: 0.6Vp-p into 75 ohms; Luminance plus Sync Output: 0.8Vp-p into 75 Ohms
      • Sound: 1 KHz audio tone
      • Power: Standard 9V battery or external AC adapter
      • Dimensions: 5.7­"(H) x 3.8­"(W) x 1.5­"(D)



    REVIEW SNAPSHOT®

    by PowerReviews
    GME Technology - Handheld Pattern Generators

    3.0

    (based on 1 review)

    Ratings Distribution

    • 5 Stars



      (0)

    • 4 Stars



      (0)

    • 3 Stars



      (1)

    • 2 Stars



      (0)

    • 1 Stars



      (0)

    Reviewed by 1 customer

    Displaying review 1

    Back to top


    3.0

    Works. No frills

    By T2

    from Jupiter, FL

    About Me Experienced

    Verified Buyer

    Pros

    • Compact
    • Easy To Use
    • Lightweight

    Cons

    • Low Cost Construction

    Best Uses

    • Cctv Checkout

    Comments about GME Technology - Handheld Pattern Generators:

    The device works as advertised but isn't anything to rave about. It is functional and does what it is supposed to do. I use it for checking cables and identifying them. I will say that the price was right. And I got what I paid for. Fair deal. Low Cost construction.
