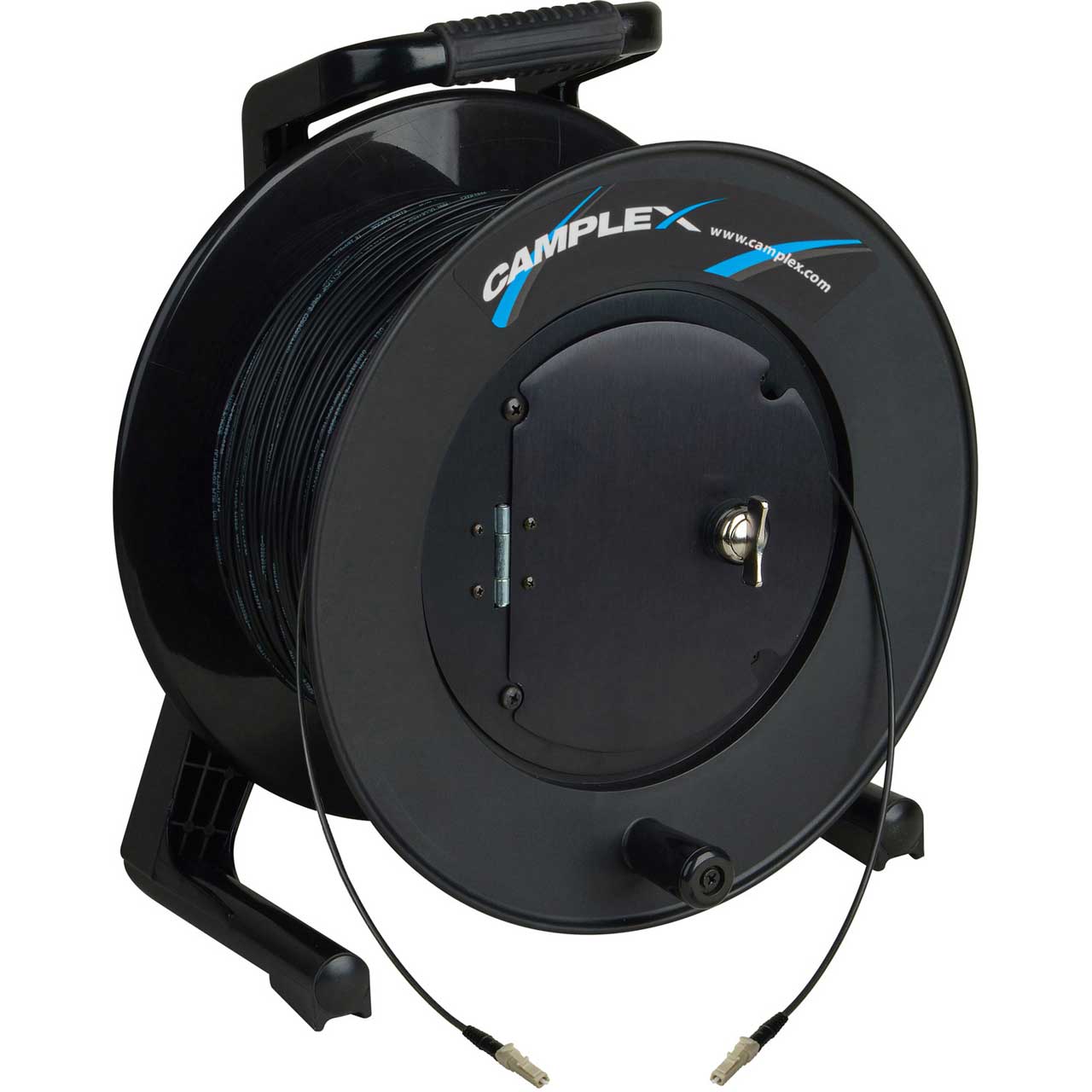

Camplex HF-TR1M1-LC-1000 TAC1 Simplex 1-Channel OM1 Multimode LC Fiber Optic Tactical Cable Reel - 1000 Foot

ITEM #: HF-TR1M1-LC-1000 MFG #: HF-TR1M1-LC-1000

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$1,113.95

Our Price:

$974.95

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


HF-TR1M1-LC-1000 - Overview

Extremely Rugged & Lightweight Single Channel OM1 Orange 62.5 Micron Multimode Tactical Fiber Snakes Designed for Broadcast & Pro-Audio Applications!

Ruggedized multi-channel fiber optic cables designed for multiple deployments for field production in outside broadcast, rental houses and more. Highly flexible tight-buffered tactical cables with internal aramid strength members for crush resistance in high traffic areas if handled properly and a polyurethane outer sheath designed to withstand crushing by both military tanks and Outside Broadcast vehicles. Cables are complete end-to-end tactical grade where fanout channels are covered with tactical grade polyurethane furcation tubing. All assemblies multi-stage machine polished and tested for less than .55db RL (complete per-channel test results available on request). Built in-house at our state-of-the-art fiber lab - the only fiber lab in the US to have achieved full certification from LEMO, Neutrik & Canare!

Our Tactical Fiber Snake Reels include JackReel, Schill or Hannay fiber optic cable reels with in-hub fanout & connector protection cavity. Each reel has been carefully selected to ensure proper support and critical bend radius required by fiber optic cables. We recommend tactical fiber optic cables over 25 feet be stored on a cable reel.

Custom configurations and assemblies as well as full repair services are always available for any brand tactical or SMPTE hybrid fiber cable.

  • Features:

    • Broadcast Deployable
    • Indoor/Outdoor rated jacket
    • Typical RL <-55dB and IL<0.25dB
    • Wide temperature range (typically -55°C to 85°C)
    • 500µm primary acrylate buffer with 900µm secondary hard elastomeric buffer (Ultra-Fox Plus)
    • Excellent crush and impact resistance due to their polyurethane Core-Locked outer jacket
    • Designed to withstand crush and impact after deployment
    • Strong, lightweight and extremely durable cable
    • ST, SC, LC and FC, UPC and APC connectors are also available. Custom Lengths & Configurations Always Available!

  • Specifications:

    • Industry Standard Designation: OM1 ISO/IEC 11801
    • Core/Cladding Diameter (μm): 62.5/125
    • Numeric Aperture: 0.275
    • Wavelength (nm): 850/1310
    • Gigabit Ethernet Distance (m): 275/550
    • 10-Gigabit Ethernet Distance (m): 33/300
    • Maximum Cabled Attenuation (dB/km): 3.5/1.5
    • Minimum Laser EMB Bandwidth (MHz-km): 200/500
    • Minimum OFL LED Bandwidth (MHz-km): 200/500
    • Primary Coating Diameter (μm): 500
    • Secondary Buffer Diameter (μm): 900
    • Proof Test Level (kpsi): 100
