IDX CW-3 Compact 3G-SDI Wireless HD Transmission System
  • IDX CW-3 Compact 3G-SDI Wireless HD Transmission System
  • IDX CW-3 Compact 3G-SDI Wireless HD Transmission System

Questions? Ask a Markertek Expert:
800-522-2025 Email

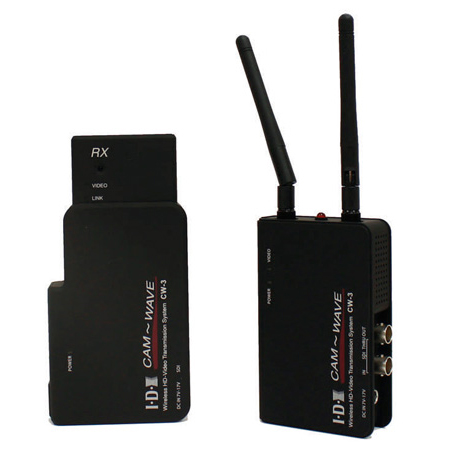

IDX CW-3 Compact 3G-SDI Wireless HD Transmission System

Manufacturer: IDX System Technology

Item #: IDX-CW-3   •   MFG #: CW-3



Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





IDX continues to expand its wireless HD lineup with the new 1:1 CW-3 transmission system. The CW-3 is the lightest, uncompressed, full HD, zero delay, 3G-SDI transmitter available today. The CW-3 can transmit audio and video up to 115m/380ft (distance may vary). D-Tap power cables, AC adaptors, SDI cables, and a 1/4" shoe mount adaptor are included accessories.


  • Features

    • Transmits uncompressed full HD 1080p/60 video.
    • *Please note: Unit does not support 1080PSF*
    • Utilizing WHDI (MIMO/OFDM) technology.
    • 5GHz frequency band (license free).
    • Zero frame delay; less than 1ms latency.
    • Transmit HD video as far as 115m/380ft (distance may vary).
    • Dynamic Frequency Selection (DFS) operates on less congested
    • channels for optimal performance.
    • GPI output on TX for tally.
    • D-Tap power cables, SDI cables, AC adaptors, and 1/4"
    • mounting adaptor included.
    • Conforms to major technical & environmental standards including
    • FCC, CE, and RoHS specifications.

  • Specifications

    • Frequency: US: 5270, 5310, 5510, 5550, 5670 MHz
    • EU: 5510, 5550, 5670 MHz
    • Freq. Selection: Automatic / DFS
    • Transmit Method: WHDI (MIMO)
    • Modulation: OFDM
    • Latency: Zero frame (less than 1ms)
    • Transmit Range: 50m/164ft with no loss in signal quality. Up
    • to 115m/380ft max (line of sight).
    • Video/Audio: TX: (1) SDI In , (1) SDI Out RX: (1) SDI Out
    • Video Formats: 3G-SDI: YCbCr 4:2:2 10bit
    • 1080p 60/59.94/50Hz
    • HD-SDI: YCbCr 4:2:2: 10bit
    • 1080i 60/59.94/50Hz 1080p
    • 30/29.97/25/24/23.98Hz
    • 720p 59.94/50Hz
    • Power Requirement: 7-17V DC
    • Power Consumption: TX 8W max. RX 10W max.
    • Dimensions: TX: 109.2(W) x 68.8(H) x 25.4(D)mm
    • Antenna: 108.0(W) x 10.0(H) x 10.0(D)mm
    • RX: 153.5(W) x 73.5(H) x 25.0(D)mm
    • TX: 4.29(W) x 2.70(H) x 1.0(D)inch
    • Antenna: 4.25(W) x 0.39(H) x 0.39(D)inch
    • RX: 6.04(W) x 2.89(H) x 0.98(D)inch
    • Weight: TX: 150g approx. RX: 165g approx.
    • TX: 0.33lbs approx. RX: 0.36lbs approx.
