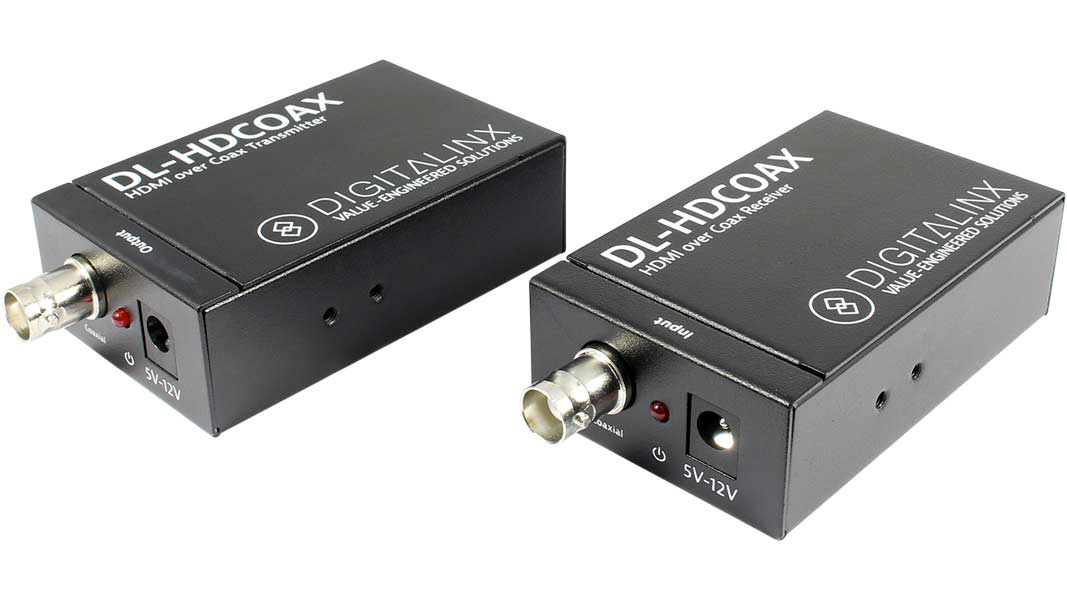

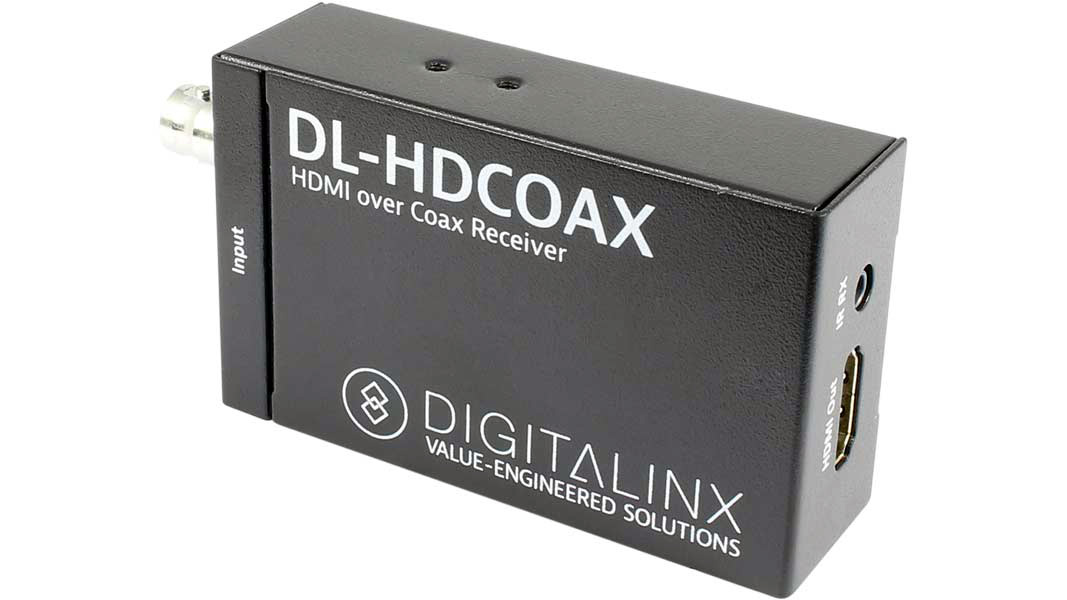

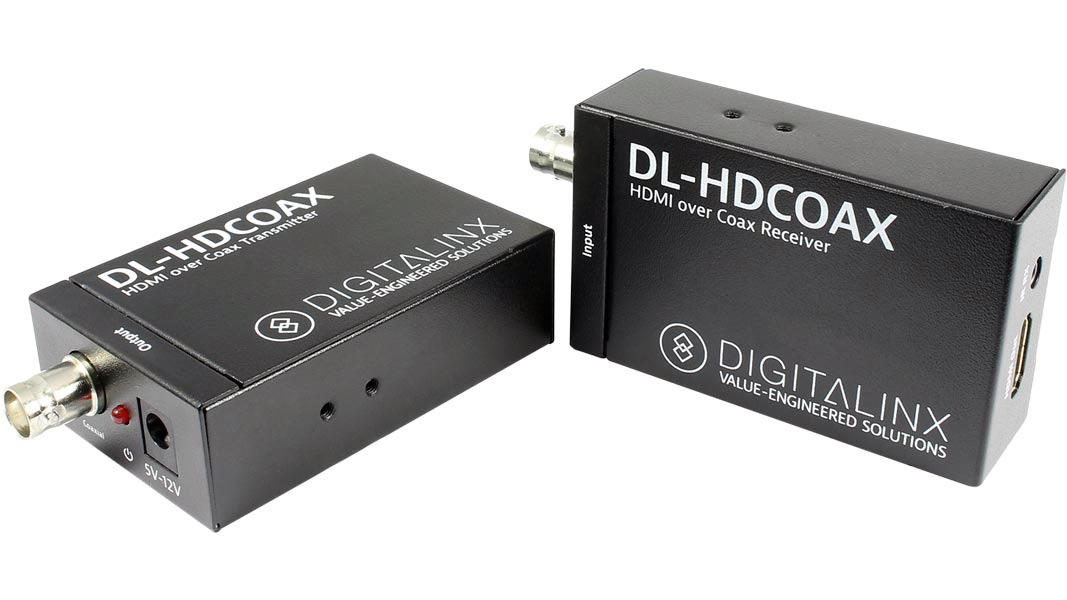

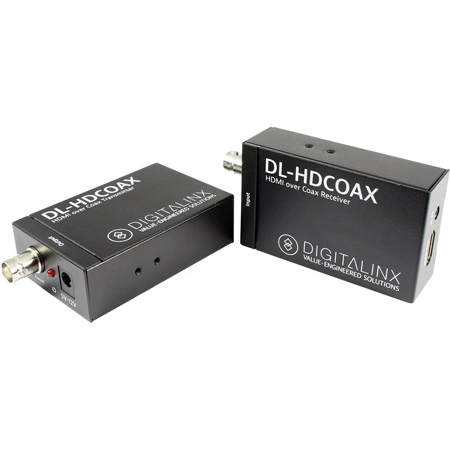

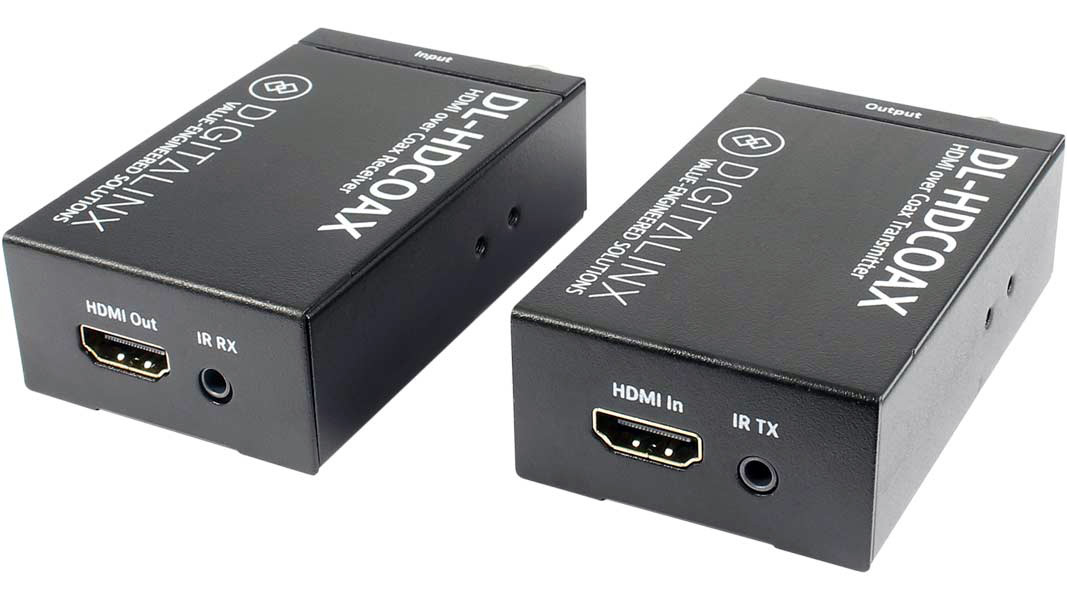

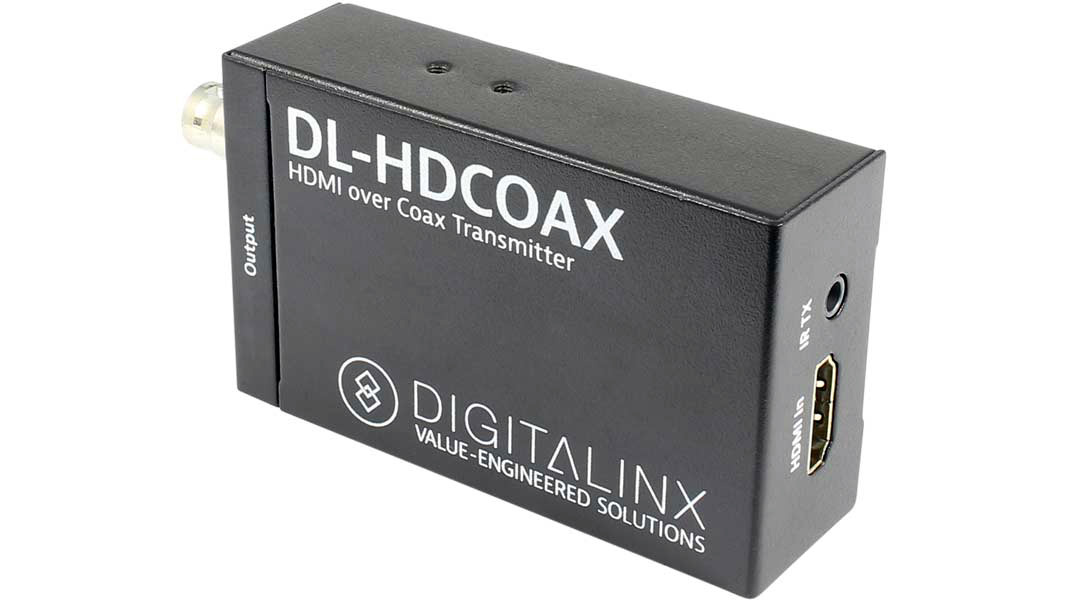

Intelix DL-HDCOAX HDMI and IR extension over RG6/RG59 Set

ITEM #: INX-DL-HDCOAX MFG #: DL-HDCOAX

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the INX-DL-HDCOAX

DL-HDCOAX - Overview

Simplify installations with Intelix DIGI-HD-COAX extenders. The first of its kind, the Intelix DIGI-HD-COAX transmits high-definition HDMI signals over a single coaxial cable. Designed for demanding commercial and residential audio-visual applications, the DIGI-HD-COAX employs Intelix's industry-leading HDMI processing to ensure audio and video perform flawlessly up to 675 feet (at 1080i or 720p) using RG6 or RG59. Plus, built-in 1x2 distribution amplifiers split video signals to two independent outputs, thereby allowing dual distribution systems and/or daisy-chaining.ÿÿ

Both the transmitter and receiver include two BNC to F adaptors, ensuring compatibility with different cable terminations.ÿÿ

The Digitalinx DL-HDCOAX is an HDMI over Coax extender that accommodates distances up to 100 meters (328ft). The DL-HDCOAX supports resolutions up to 1080p and 48KHz Digital Audio.

The DL-HDCOAX features IR capability allowing the user to control the source from the display. The DL-HDCOAX is HDMI 1.3 and HDCP 1.1 compliant. The transmitter and receiver are powered on both ends, power supplies are provided with the set.

Applications
HDMI multimedia extension
Retrofit into historic buildings

  • Features:

    • HDMI and IR extension over a single RG6 or RG59 cable
    • Extension up to 100 meters (328 feet)
    • Control the source device from the display
    • Locking BNC connectors
    • 1080p compatible
    • Compact design
    • Power supplies and IR components are included

  • Specifications:

    • I/O Connections (Transmitter)
    • HDMI Input: One (1) HDMI Type A Receptacle
    • Coaxial connection: One (1) female BNC

    • I/O Connections (Receiver)
    • HDMI output: One (1) HDMI Type A Receptacle
    • Coaxial connection: One (1) female BNC

    • Supported Audio and Video
    • Maximum Coaxial distance at 1080p with RG6 (75Ω): 328 ft
    • Maximum Coaxial distance at 1080i or 720p with RG6 (75Ω): 675 ft
    • Maximum Coaxial distance at 1080p with RG59 (75Ω): 250 ft
    • Maximum Coaxial distance at 1080i or 720p with RG59 (75Ω): 675 ft
    • Maximum Passive HDMI Distance: 5m (16 ft)
    • Deep Color Mode: 36 bits (12 bits /color) bandwidth up to 225MHz
    • Supported Audio: 48KHz LPCM Digital Audio
    • Video Compliance: HDMI 1.3, HDCP 1.1

    • Chassis and Environmental
    • Enclosure: Painted steel
    • Dimensions: 80 mm x 41 mm x 25 mm (3.14 in x 1.61 in x 0.98 in)
    • Weight: 1.2 lbs
    • Operating Temperature: 0° to +40° C (+32° to +104° F)
    • Operating Humidity: 20% to 90%, Non-condensing
    • Storage Temperature: -20°C to +60° C (-4° to +140° F)
    • Storage Humidity: 20% to 90%, Non-condensing

    • Power, ESD, and Regulatory
    • Power Supply Input Voltage: 100-240v at 50/60 Hz at 0.15 A
    • Power Supply Output Rating: 5v DC at 1 A
    • ESD Protection: 15kV
    • Device Regulatory: CE, RoHS, FCC
    • Power Supply Regulatory: UL, FCC, LPS

  • Item Includes:

    • 1x DL-HDCOAX transmitter
    • 1x DL-HDCOAX receiver
    • 2x power supply
    • IR Tx cable
    • IR Rx cable
    • Installation guide

  • Warranty:

    • 2 Years
