DL-HDE100 - Overview

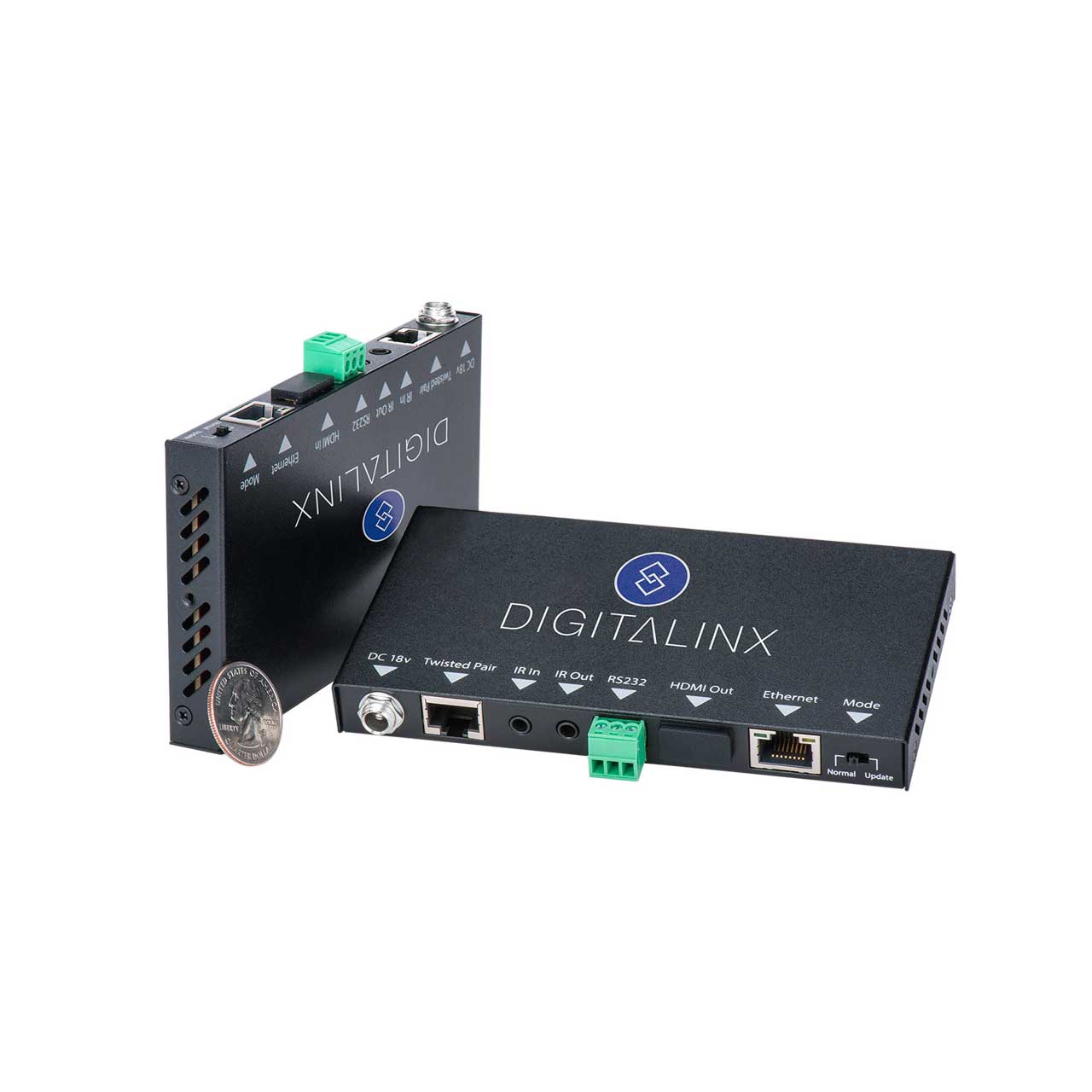

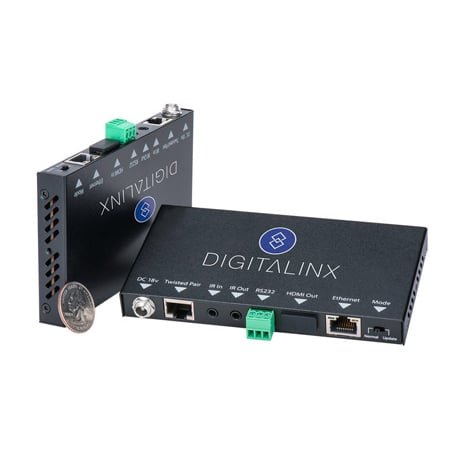

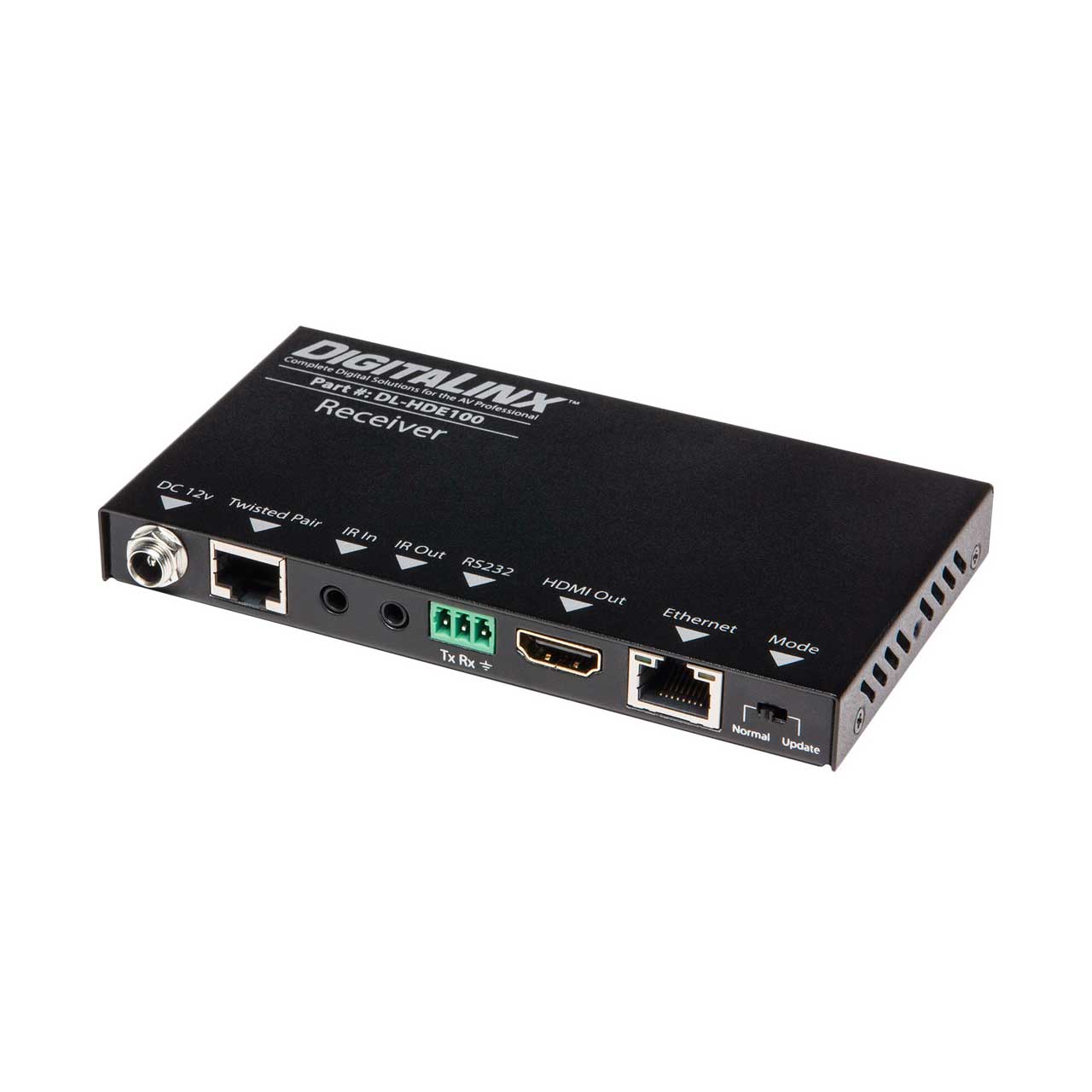

The DigitaLinx DL-HDE100 extender set transmits HDMI, Ethernet, bidirectional IR, and RS232 up to 100 meters away using a single twisted pair cable.

Built-in surge protection and diagnostic LEDs ensure hassle-free and robust installations. Flexible power design allows the units to be powered at either the TX or RX end, and only one power supply is required. The 12 volt power supply is secured with a screw-on connector to prevent the power from being accidentally disconnected.

The DL-HDE100 is sold only as a set. All accessories are included including two IR emitters, two IR receivers, and two pairs of mounting brackets with screws. The individual transmitter and receiver are not compatible with other HDBaseT devices due to proprietary PoE circuitry.

Applications:
Uses any Cat6 or greater twisted pair cabling
Extension of HDMI and control signals
Limited access to power for extenders on both ends
Ideal for Digital Signage, Home Theater, Commercial Video

  • Features:

    • HDMI transmission up to 330 feet (100m)
    • 1080p, 4Kx2K & 3D compatible
    • CEC supported
    • Built-in surge protection
    • Diagnostic LEDs
    • HDCP compliant
    • Bidirectional Wideband IR and RS232 pass-through
    • 100-BaseT Ethernet pass-through
    • Flexible power design (use power supply at TX or RX)
    • Locking Power Connector

  • Specifications:

    • I/O Connections:
    • HDMI One (1) HDMI Type A Receptacle
    • Twisted Pair One (1) 8P8C port (Shielded RJ45)
    • Ethernet One (1) 8P8C port (Shielded RJ45)
    • IR Input One (1) 3.5mm TRS Jack
    • IR Output One (1) 3.5mm TS Jack
    • RS232 One (1) 3-Pole Euroblock connector
    • 12V DC Power One (1) 5.5 mm Outside Diameter, 2.1 mm Inside Diameter Barrel (Locking)

    • Supported Audio, Video and Control
    • Maximum Video Compatibility with Cat 6 or greater cable 90 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k
    • Maximum Video Compatibility with shielded Cat 6 or
    • greater cable and shielded connectors
    • 100 m: Deep Color 48/36/30/24 Bit at 1080p, 3D, and 4k x 2k
    • Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
    • Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
    • Input DDC Signal 5.0 volts p-p (TTL)
    • Input Video Signal 0.5 to 1.0 volts p-p
    • IR Carrier Frequency Range 33-55kHz at 5 volts
    • Ethernet 100BaseT
    • RS232 Baud Rate Up to 115200 baud

    • HDBaseT Signal Characteristics
    • Maximum Distance 100 m
    • Cable Requirements Category 6 or greater with TIA/EIA-568B crimp pattern
    • Bandwidth 10.2 Gbps
    • Gain 0 dB - 10 dB at 100 MHz
    • Resolution Range 800x600 - 1920x1200
    • Signal to Noise Ratio (SNR) > 70 dB at 100 MHz over 100 m
    • Return Loss < -30 dB at 5 KHz
    • Total Harmonic Distortion (THD) < 0.005% at 1 KHz
    • Min-Max Signal Level < 0.3 V - 1.45 Vp-p
    • Differential Phase Error ±10° at 135 MHz over 100 m

    • Chassis and Environmental
    • Enclosure Painted steel
    • Dimensions 135mm x 74mm x 15mm (5.31 in. x 2.91 in. x 0.59 in.)
    • Shipping Weight 0.82 kg (1.8 lbs.)
    • Operating Temperature (Environment) 0° to +40° C (+32° to +104° F)
    • Operating Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) ( R )
    • Operating Humidity (Environment) 20% to 90%, Non-condensing
    • Storage Temperature (Environment) -10° to +60° C (+14° to +140° F)
    • Storage Humidity (Environment) 20% to 90%, Non-condensing

    • Power, ESD, and Regulatory
    • Maximum Power Consumption 3 watts (S), 6 watts ( R )
    • Power Supply 18vDC
    • ESD Protection 15kV
    • Regulatory CE, RoHS

    • Other
    • Standard Warranty 2 Years

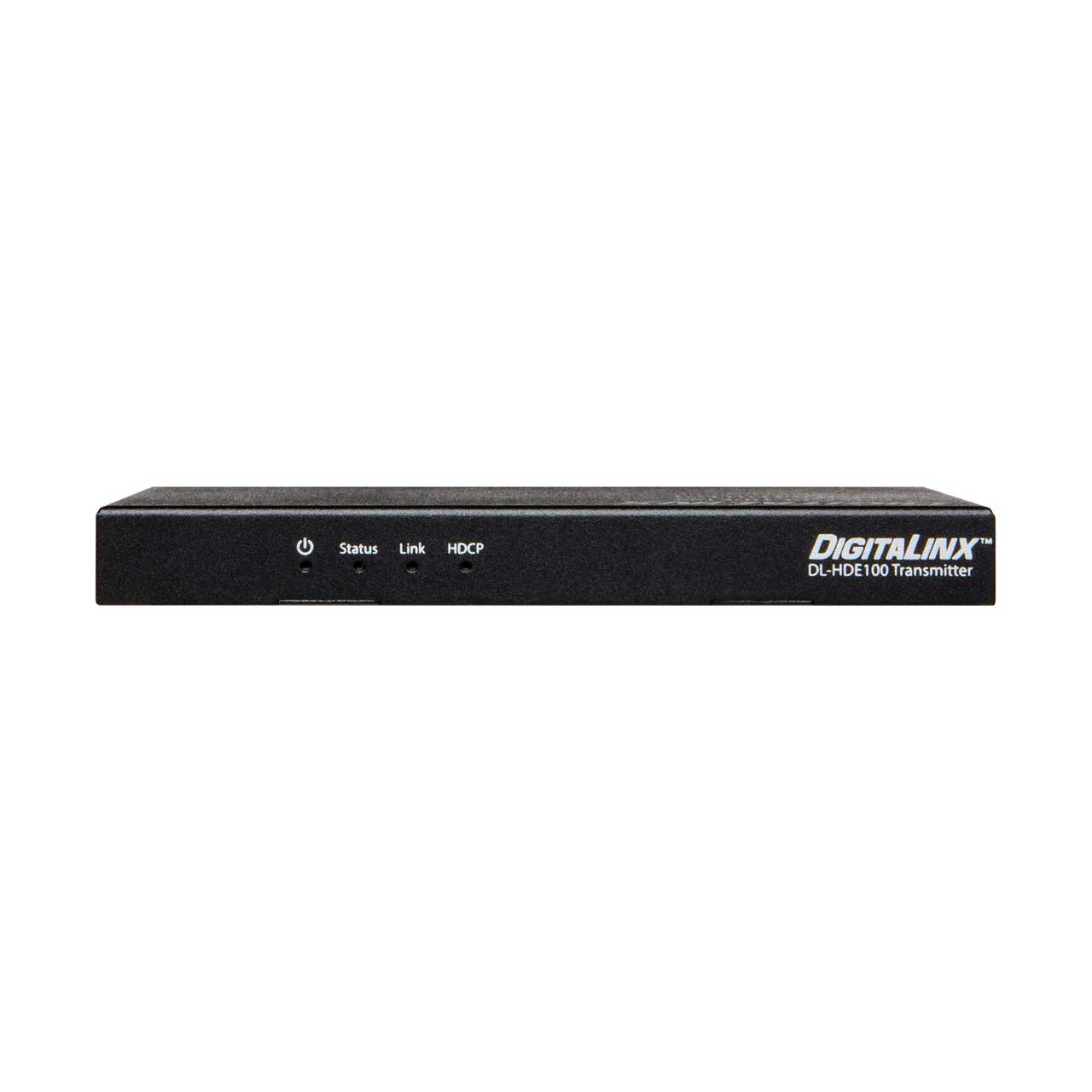

    • Diagnostic Indicators Power, Status, Link, and HDCP LEDs
    • Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Liberty AV Solutions' specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.

  • Item Includes:

    • Installation Guide, power supply, US power cord, IR emitters (2 ea), IR receivers (2 ea), mounting "L" brackets (4 ea), mounting screws (4 ea)
