JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 Inch LF (White)
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

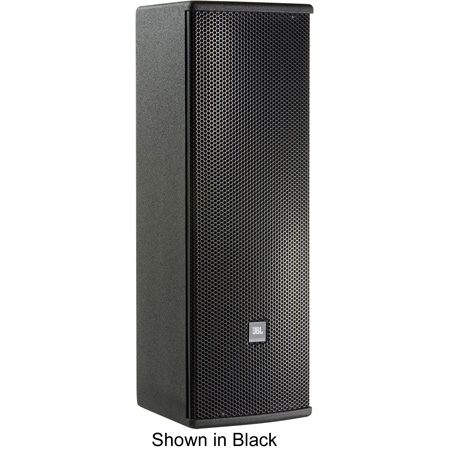

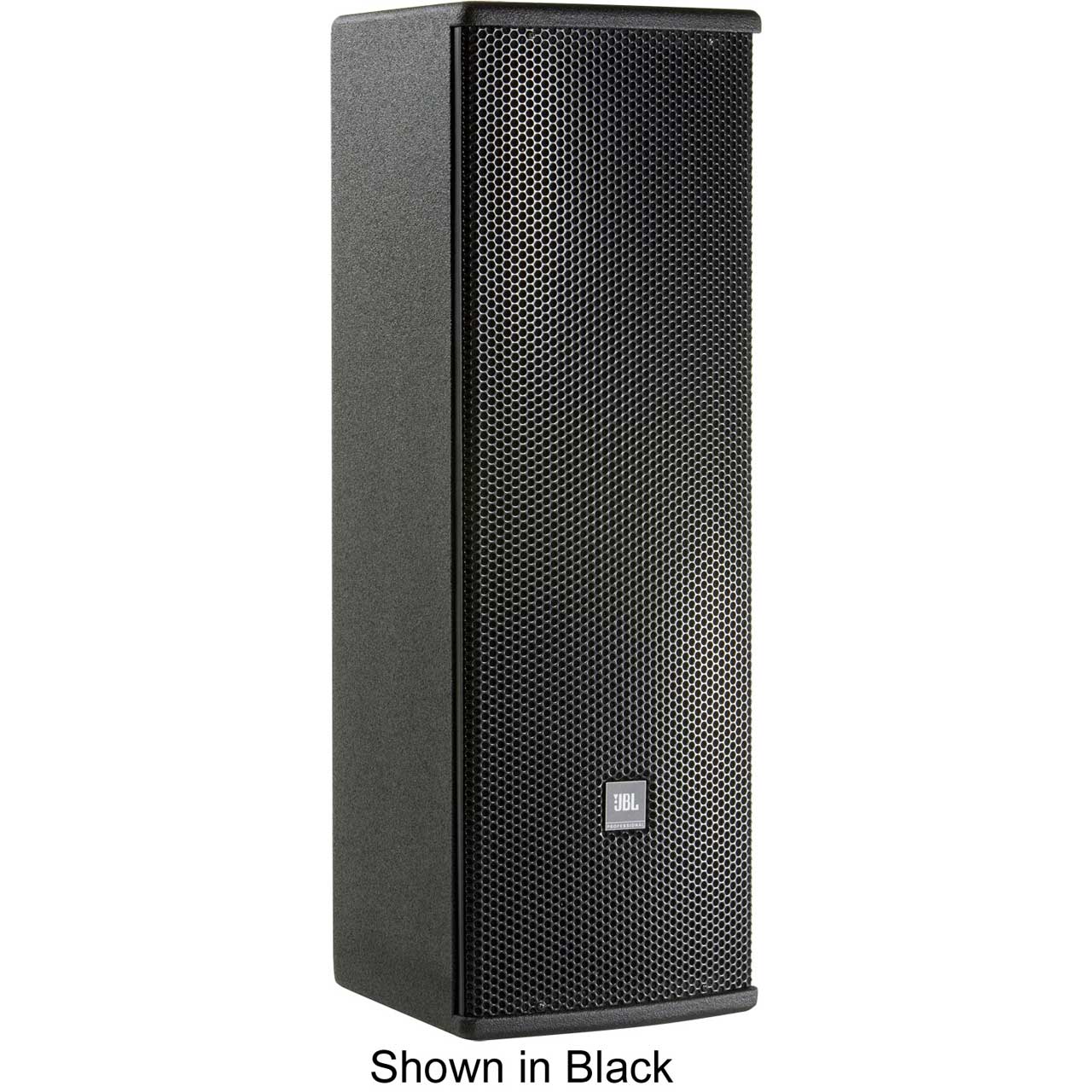

    JBL AC26 Ultra Compact 2-Way Loudspeaker with 2 x 6.5 Inch LF (White)

    Manufacturer: JBL Professional

    Item #: JBL-AC26-WH   •   MFG #: JBL-AC26-WH







    High output, 2-way loudspeaker systems combining flexibility with high fidelity

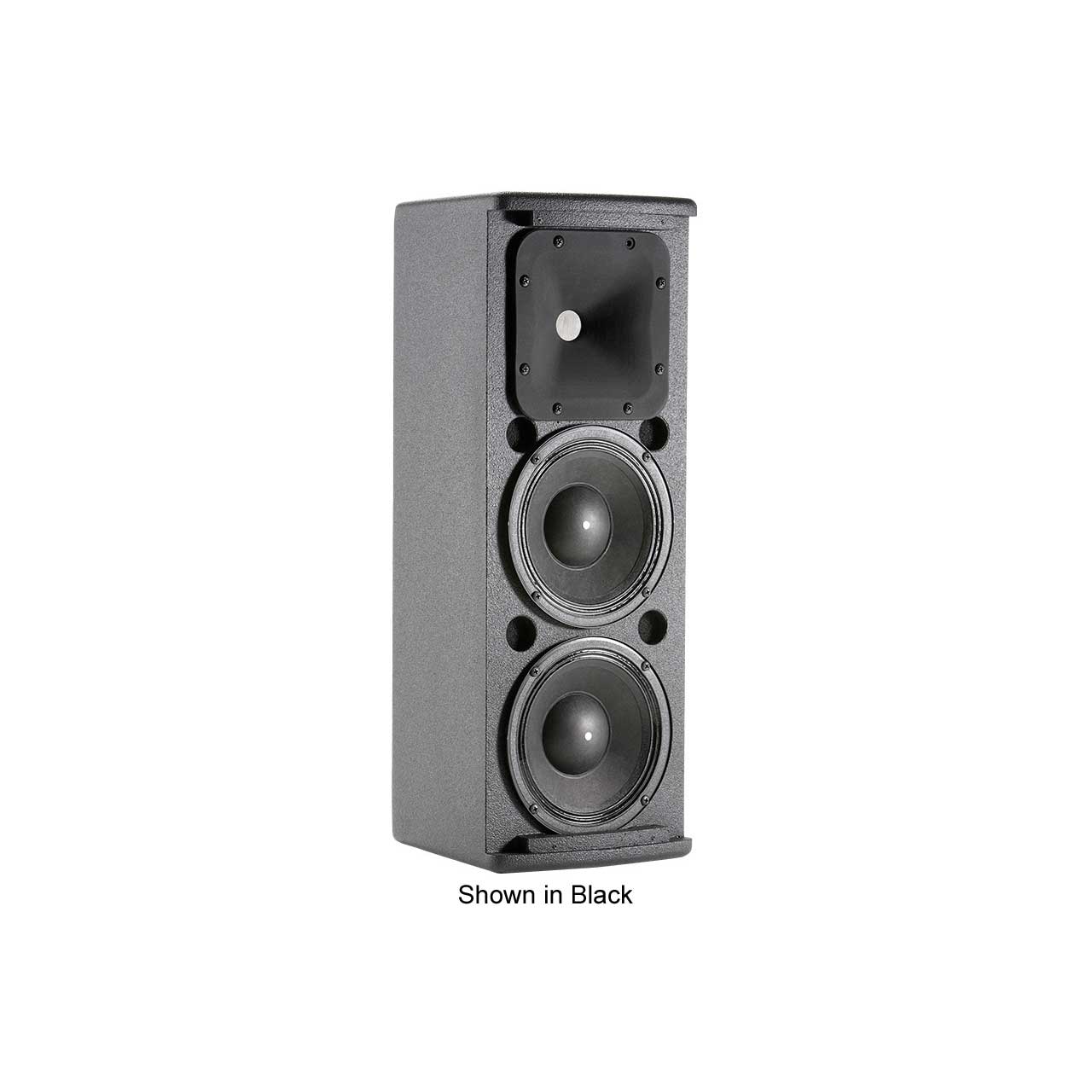

    The AC26 is an ultra-compact full-range loudspeaker system designed to provide maximum bandwidth and SPL in a single system package and yet be visually unobtrusive. The enclosure design allows for installation very close to walls and ceilings making it an ideal choice for under balcony, column, or wall mounting. The high frequency device is a 1" exit compression driver integrated into a newly designed 90° x 90° PT™ (Progressive Transition) waveguide providing even coverage throughout the intended listening area. The combination exhibits smooth power response resulting in extremely natural voicing. The AC26 utilizes dual 6.5"Symmetrical Field Geometry (SFG™) LFTransducers each with a copper-cladaluminum edge wound 2" voice coil and a copper-clad pole piece that improves performance by reducing voice coil inductance and distortion. In addition Filtered Array Technology (FAT™) is utilized to independently control the dual woofers for magnitude and phase response resulting in smoother power response and constant coverage.

    The rugged multi-ply hardwood enclosure is designed to work in the vertical plane as well as in the horizontal plane. Mounting points are provided for an optional Ubracket and for an OmniMount® type bracket. The AC26 is also equipped with attachment points located on the bottom of the enclosure for a stand mount accessory.

    The rugged plywood enclosure features JBL's textured DuraFlex™ finish and is equipped with a heavy duty powder coated steel, foam-backed grille.

    • Features

      • 1" Exit Compression Driver with 90° x 90° Coverage PT™ Waveguide
      • 165 mm (6.5 in) LF transducer
      • Ultra compact enclosure
      • 600W Program
      • Dual Neutrik NL4 connectors plus screw terminal
      • Attachment points for optional U-bracket, third part OmniMount® type bracket and stand mount accessory
    • Specifications

      • Frequency Range (-10 dB) : 55 Hz -20 kHz
      • Frequency Response (±3 dB) : 70 Hz -18 kHz
      • Power Rating : 300W Cont. Pink Noise
      • 600W Program
      • 1200W Peak
      • Impedance : 8 ohms
      • Coverage Pattern : 90° x 90°
      • Dimensions (H X W X D) : 539.8 x 199.4 x 226.1mm (21.3 x 7.8 x 8.9in)
      • Weight : 11.0 kg(24.3 lb)
        Priced per speaker.
