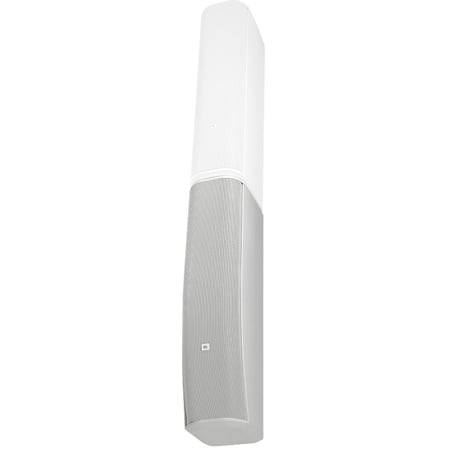

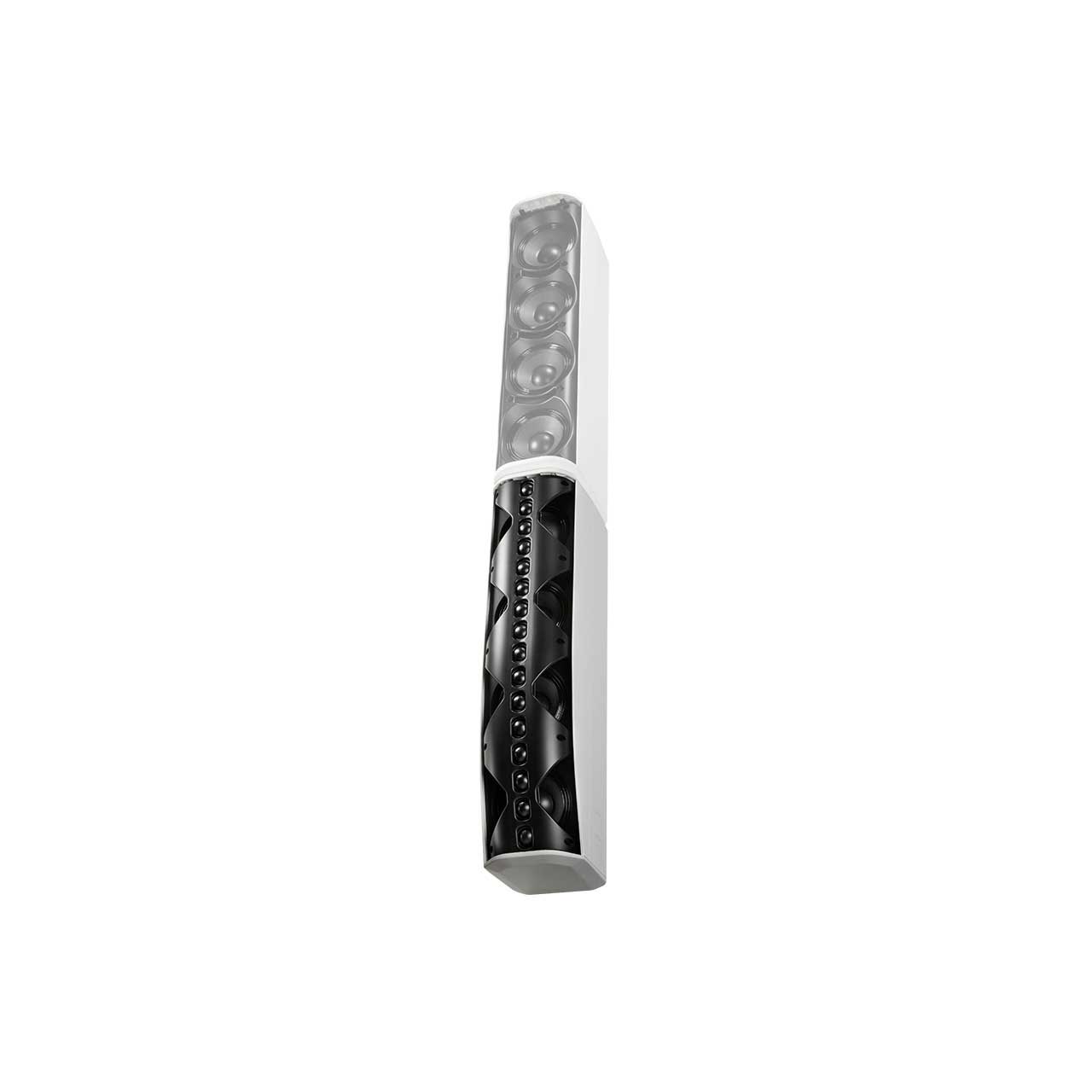

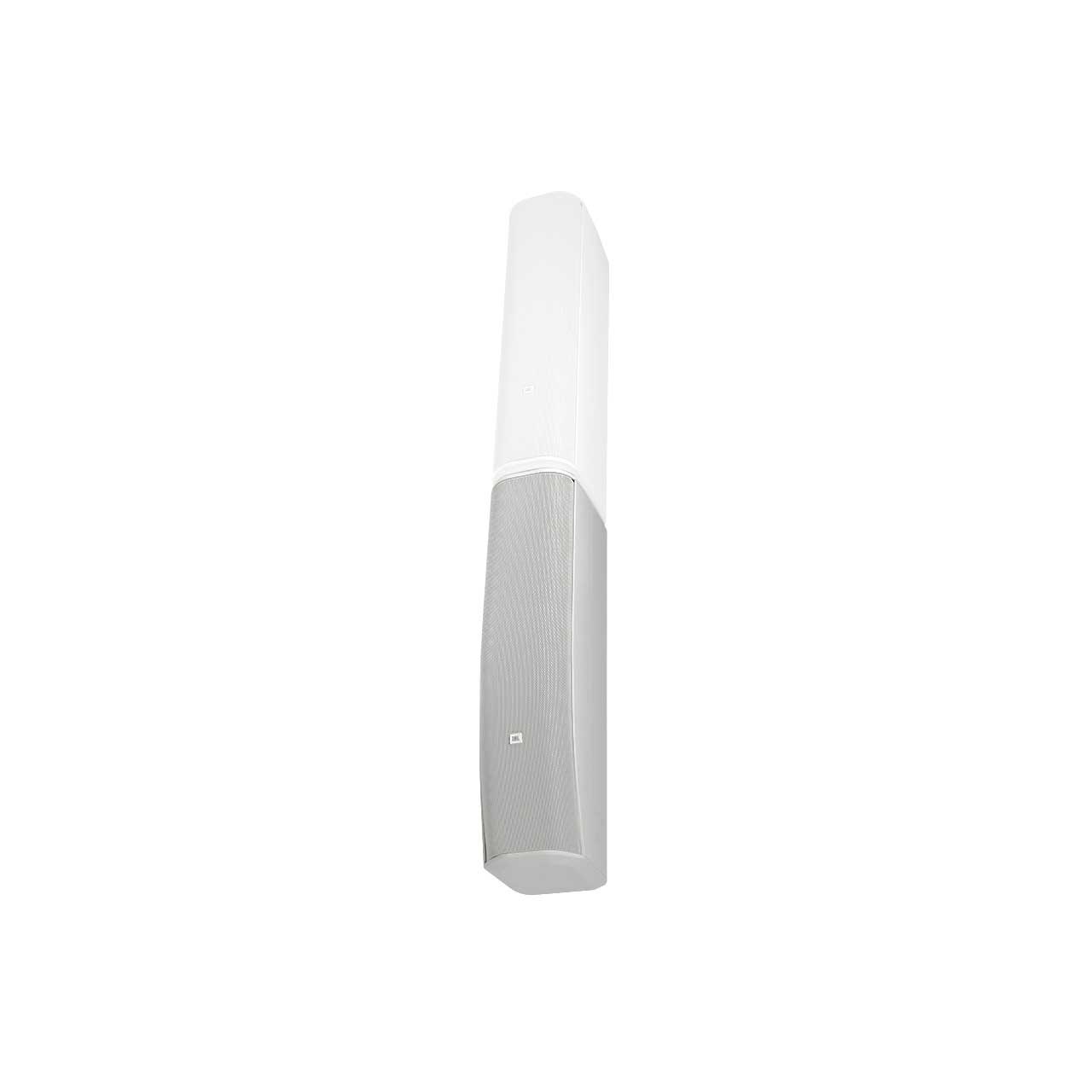

JBL CBT70J-1 Constant Beamwidth Technology Line Array Column Loudspeaker (White)
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    JBL CBT70J-1 Constant Beamwidth Technology Line Array Column Loudspeaker (White)

    Manufacturer: JBL Professional

    Item #: JBL-CBT70J-WH   •   MFG #: JBL-CBT70J-WH







    The J-shape of the array works in conjunction with the Constant Beamwidth Technology circuitry to provide asymmetrical coverage similar to that of expensive line arrays commonly used in concert systems. The J column sends highly concentrated sound toward the back of the venue, while down-filling a broader, less concentrated sound to the front of the venue. This results in more consistent sound levels from front to back. 70 cm J-shaped coaxial line array with 16 x 1" tweeters, 4 x 5" woofers plus patent-pending Constant Beamwidth Technology™ circuitry. Perfect for A/V, Small Performance Auditoriums, Classrooms, Lecture Halls. For Outdoor Applications: Pole-Mounted at School Stadiums, Racetracks, Theme Parks, Fill Applications.

    • Specifications

      • Frequency Response (-10 dB): 60 Hz - 20 kHz
      • Sensitivity (SPL @ 1m, 3.3 ft): 100 dB
      • Power Handling (low - Z): 500 W
      • Max SPL: 127 dB (133 dB peak)
      • Pattern Control Frequency (± 20°): 800 Hz
      • Mounting: 10 x M6 insert points, wall bracket included
      • Dimensions (H x W x D): 27.4" x 6.6" x 9.3"
      • Vertical Coverage: Narrow = 25° asymmetrical Broad = 45° asymmetrical
      • Equalization: Music (flat)/Speech
      • Tap Settings: 8 ohms
