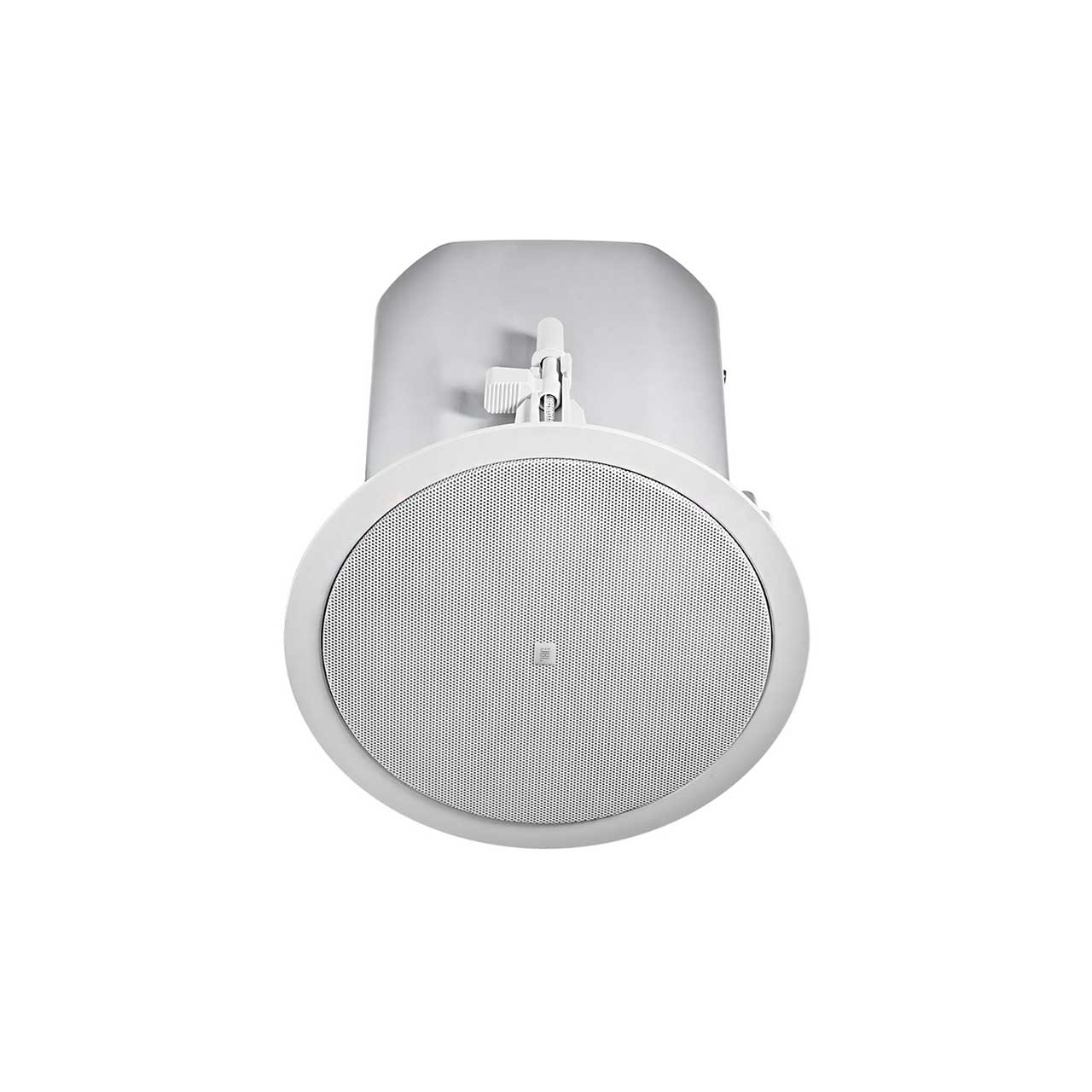

JBL Control 45C/T Two-Way 5.25 Inch Coaxial Ceiling Loudspeaker - Pair

CONTROL 45C/T - Overview

• Features:

  • Extremely consistent 120° broadband pattern control featuring JBL's exclusive conical Radiation Boundary Integrator (RBI) technology.
  • Very consistent, full-range coverage of listening area while providing a small ceiling footprint.
  • Wide, consistent coverage requires fewer speakers, reducing the cost of the installed system without sacrificing performance.

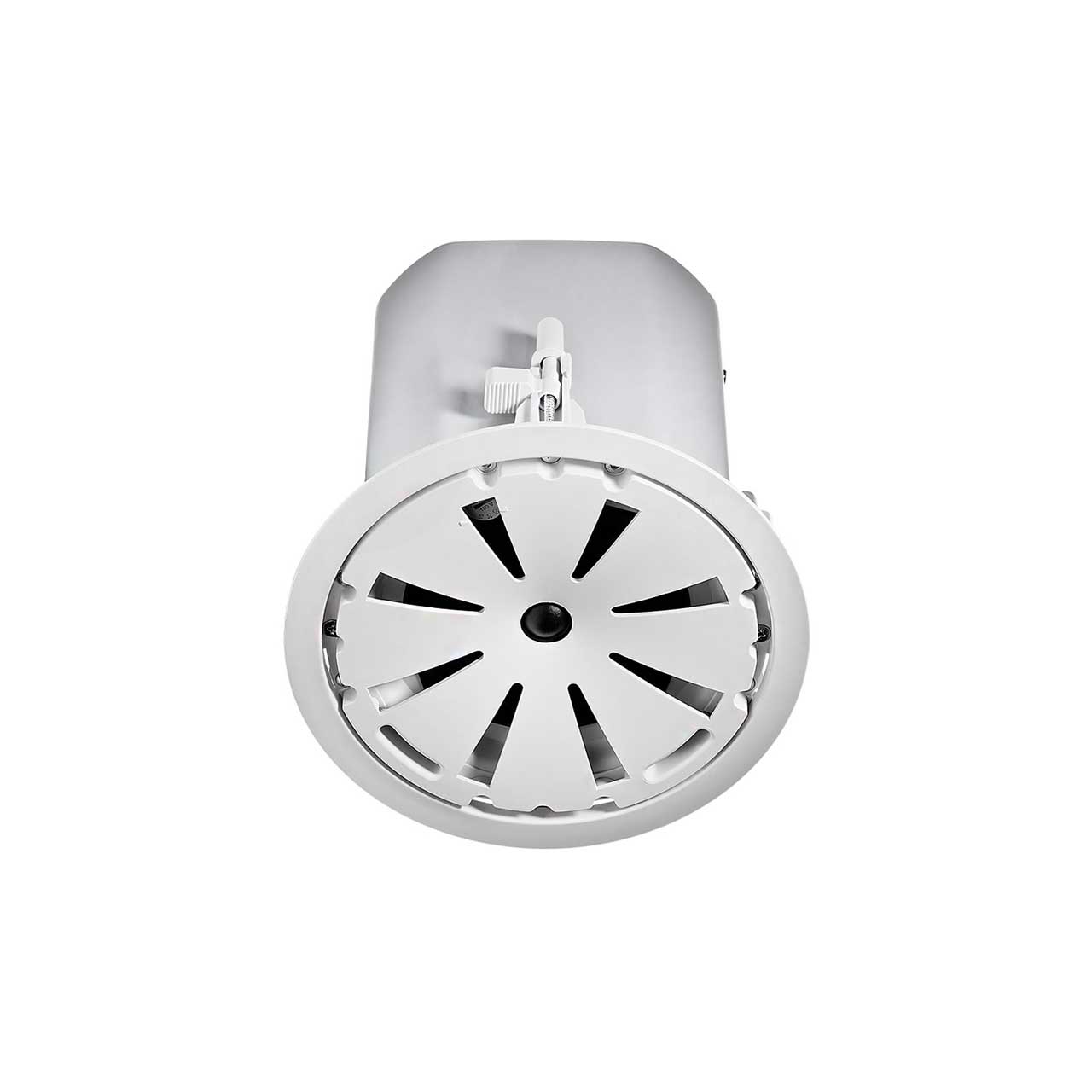

  • Coaxial design featuring:
  • 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround.
  • 20 mm (.75 in) soft-dome tweeter on 210 mm (8.25 in) diameter wave guide.
  • Bass extension down to 55 Hz.
  • 8 ohm and 70V/100V operation.

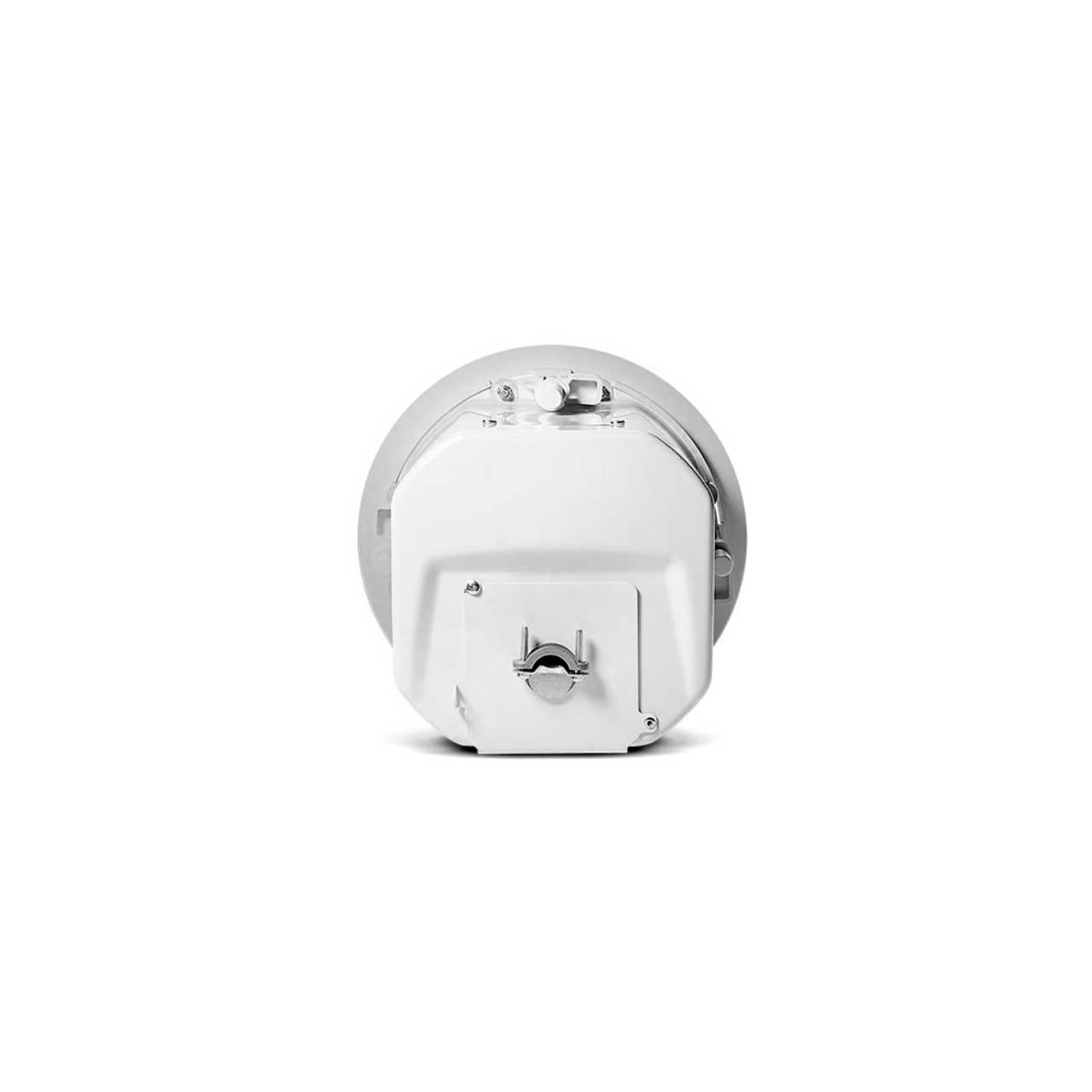

  • Integrated backcan for easy "blind-mount" install. Packaged with grille and tile rails for easy installation.


• Specifications:

  • Frequency Range (-10 dB): 55 Hz - 20 kHz
  • Frequency Response (+/-3 dB): 80 Hz - 17 kHz
  • Power Capacity: 150 Watts Continuous Program Power;75 Watts Continuous Pink Noise
  • Nominal Sensitivity (2.83V/1m): 88 dB
  • Nominal Coverage Angle: 120° conical coverage
  • Directivity Factor (Q): 5.6
  • Directivity Index (DI): 7.3 dB
  • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance: 8 ohms (in bypass mode)
  • Transformer Taps: 60W, 30W, 15W, (& 7.5W @ 70V)
  • Transformer Insertion Loss: 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
  • LF Driver: 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former.
  • HF Driver: 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
  • Input Connectors: Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm). Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
  • Knockouts: Two (top, and side)
  • Safety Agency: Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.
  • Dimensions: 250 mm (9.9 in) diameter, 239 mm (9.4 in) mounting depth
  • Cutout Size: 220 mm (8.75 in)
  • Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 in) thick
  • Net Weight: 3.9 kg (8.6 lb)
  • Shipping Weight: 8.6 kg (19.0 lb), pair pack


• Item Includes:

  • C-ring support backing plate
  • (2) Tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles)
  • Press-in grille
  • Knockout strain relief
  • Cutout template
  • Paint shield
  • (2) Removable locking multi-pin connectors


• GTIN:

  0050036905305
