Kanex Pro HDBASE100ME HDBaseT 100M Extender with 2-Port Ethernet Switch
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Kanex Pro HDBASE100ME HDBaseT 100M Extender with 2-Port Ethernet Switch

    Manufacturer: KanexPro

    Item #: KAN-HDBASE100ME   •   MFG #: HDBASE100ME


    List Price:$649.95
    Our Price:$599.00

    free ship
    Availability: Usually ships in 3-10 business days
    This item is currently out of stock and will ship the minute we receive it – normally 3-10 business days. Need it sooner? Call 800-522-2025 and we'll make it happen,or email Customer Service for expedited delivery options. Certain Non-Stock Items Valued over $50.00 may Ship FREE UPS GROUND in the Continental US. Multiple quantities of the same non-Stock Item Valued below $50.00 may be ordered to meet the $50 minimum order requirement to qualify for Free UPS Ground Freight. This offer does not apply to certain freight-intensive or hazardous items. Certain restrictions may apply.



      Extend Ultra HD 4K, Ethernet & IR Over a Single Cat6 Cable!

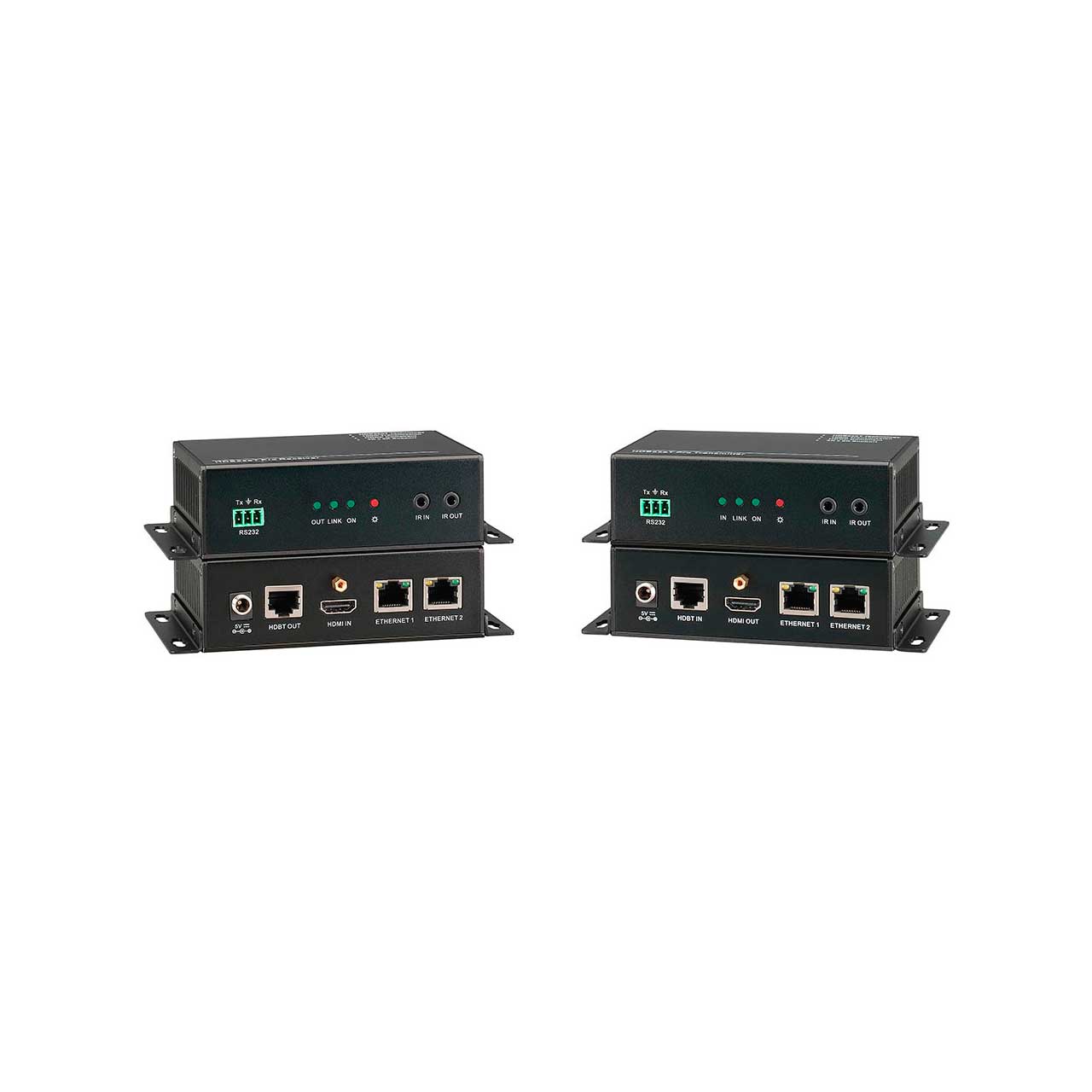

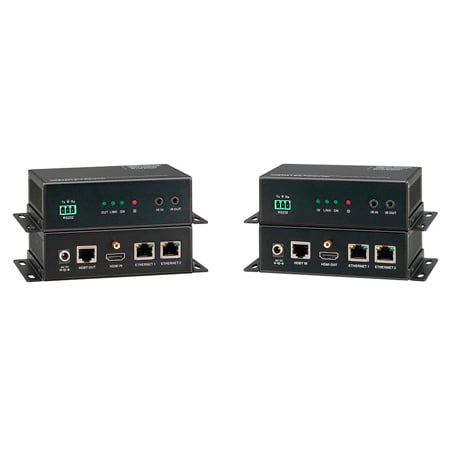

      The KanexPro HDBASE100ME is a transmitter - receiver set that enables you to routes ultra high – definition signals up to 330 feet (100 meters) over single CAT6 cable using HDBaseT Technology. This extender also features two Ethernet ports on both the units, which can be used to connect standard network devices such as 100Base-T routers, switches and hubs for LAN access.

      Ideally used with Apple TV’s, Blu-ray players, game consoles, satellite boxes and HDMI based computers that require extension up to 330 feet connected to an HDTV or projector. Fully compliant with HDCP, EDID and DDC channels, this extender supports resolutions up to ultra HD 4K, 1080p/60 & 3D.

      The transmitter and receiver sets are built in to metal enclosure with sturdy finish with locking HDMI connectors and power supplies which protects the unit from dis-engament or signal loss.

      • Features

        • Extend uncompressed HDMI signals up to 330 ft. (100m) on single CAT6 cable
        • Integrates 2-Ethernet ports for network devices
        • Supports resolutions from [email protected] to Ultra HD 4K
        • Bandwidth up to 10.2 Gbps
        • HDCP, CEC and EDID compliant
        • Infrared Signal Input/Output, embedded over extension
        • Audio support: Dolby TrueHD & DTS Master Audio
        • Uncompressed audio support such as LPCM
        • RS-232 Control
        • Front panel-LEDs for link activity and HDCP authentication
        • Locking HDMI connectors to avoid dis-engagement & signal loss
        • Locking power connector
        • Aluminum case with separate mounting ears
      • Specifications

        • Input: 1 x HDMI (HDMI female); 1 x RS232 (9 pin female D connector); 2 x ETHERNET (RJ45); 1 x IR in & out (3.5mm mini jack)
        • Output: 1 x HDBase-T(RJ-45); 1 x HDMI(HDMI female); 1 x RS232(9 pin female D connector); 2 x ETHERNET (RJ45); 1 x IR in & out (3.5mm mini jack)
        • Transmission Mode: HDBase-T, synchronous switching mode
        • Resolutions (HDTV): 480i,576i,480p,576p,720p,1080i,1080p,3D,4K
        • Computer Resolution: WUXGA (1920x1200)
        • Gain: 0dB ~ [email protected]
        • Transmission Distance: Max distance 330 ft (100m)
        • Differential Phase Error ±10 Degrees @ 135MHz_100M
        • Bandwidth: 10.2Gbps
        • Return Loss: <[email protected]
        • HDMI Standard Support: HDMI1.4 and HDCP
        • Min. ~Max. Level <0.3V ~ 1.45Vp-p; 75?
        • Power Supply: 5V DC; 6.5W
        • Temperature -20 ~ +60 C
        • Humidity 10% ~ 90%
        • Chassis Dimension: W3.30" x H1.18" x D5.27"
        • Regulatory Approvals: FCC, CE, UL
        • Warranty: 3-Year parts and labor
