Kramer 102xl 2 Channel Balanced Mono Audio Mixer

ITEM #: KR-102XL MFG #: 102XL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-102XL

102XL - Overview

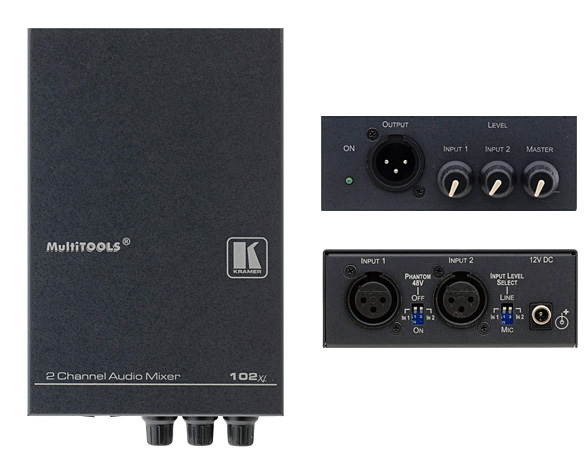

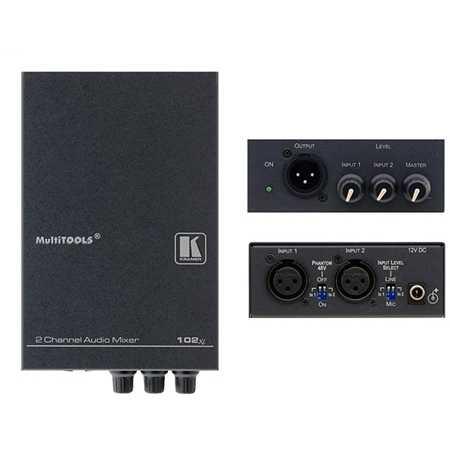

The 102XL is a high performance 2 channel mono audio mixer for line level and mic level balanced audio signals. The unit mixes two mono inputs and produces a mixed audio output signal.

S/N Ratio - 91.5dB (line level) & 62.5dB (mic level)Line or Mic Level - Input selectable.Phantom Power - 48V DC (input selectable)Level (Gain) Control - Input 1, input 2, and master.Compact MultiTOOLS™- 4 units can be rack mounted side-by-sidein a 1U rack space with the optional RK-1 universal rack adapter.

  • Features:

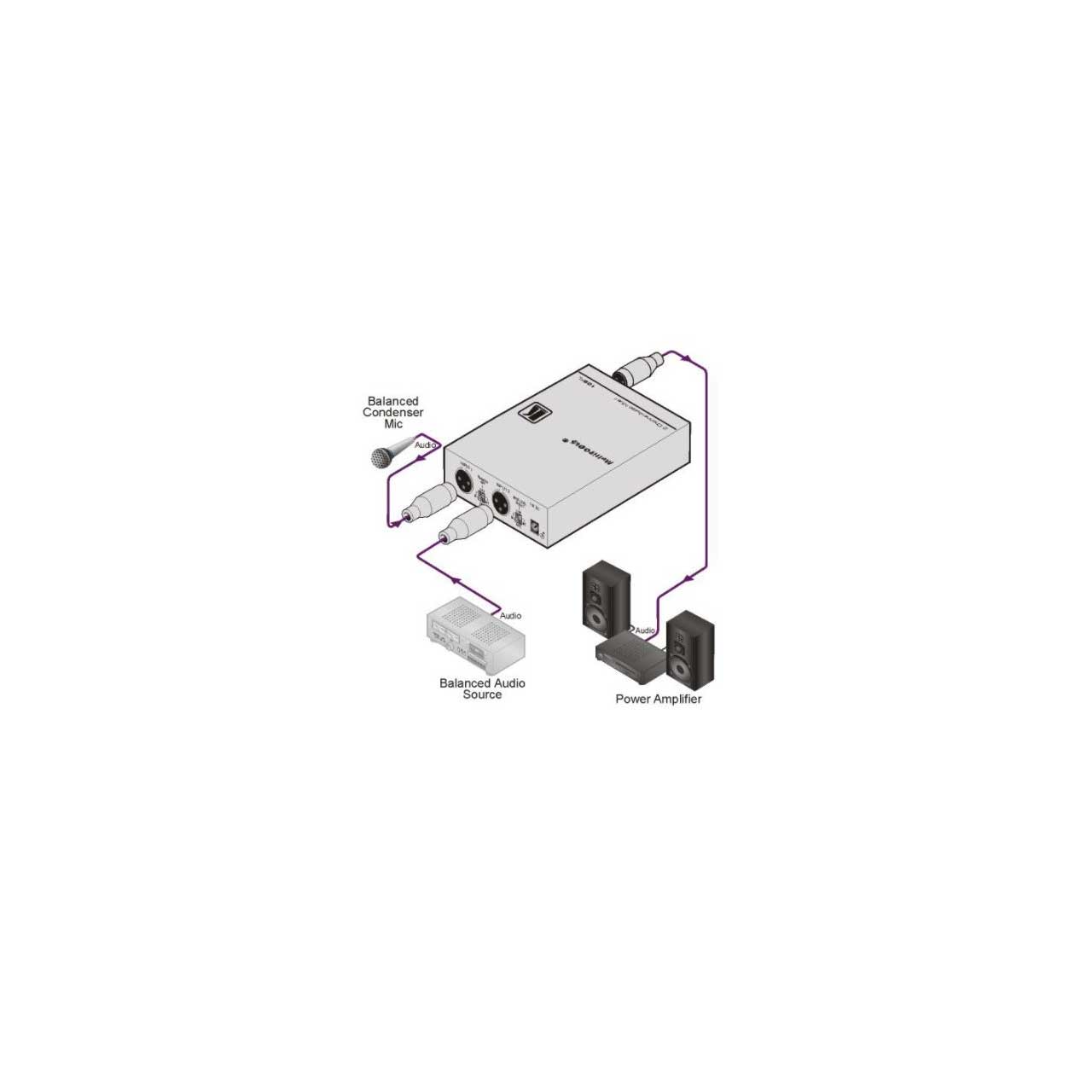

    • Applications
    • Live Stage & Studio Audio Mixing
    • Presentation Systems & press conferences

  • Specifications:

    • INPUTS: 2 line/mic balanced mono on XLR (F) connectors.
    • OUTPUT: 1 line balanced mono on an XLR (M) connector.
    • MAX. OUTPUT LEVEL: 18Vpp.
    • BANDWIDTH (-3dB): >100kHz.
    • S/N RATIO: Line: 91.5dB Mic: 62.5dB, 1kHz.
    • CONTROLS: Line: <-48dB to +11.4dB, Mic: <-1.9dB to +62.5dB, minimum to absolute gain. Phantom +48V selection for condenser microphone by 90° DIP-switches; Line/microphone input mode selection by 90° DIP-switches.
    • COUPLING: Input: AC, Output: DC.
    • AUDIO THD + NOISE: Line: 0.013%, mic: 0.079%.
    • AUDIO 2nd HARMONIC: Line: 0.002%, mic: 0.01%.
    • POWER CONSUMPTION: 12V DC, 112mA (DC).
    • DIMENSIONS: 10.68cm x 16.2cm x 4.2cm (4.2" x 6.38" x 1.65") W, D, H.
    • WEIGHT: 0.65kg (1.4lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-1 19" rack adapter.

  • GTIN:

    7291063028725
