Kramer 840Hxl HDMI Video Test Pattern Generator

Manufacturer: Kramer

Item #: KR-840HXL   •   MFG #: 840HXL



List Price:$640.00
Our Price:$512.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!

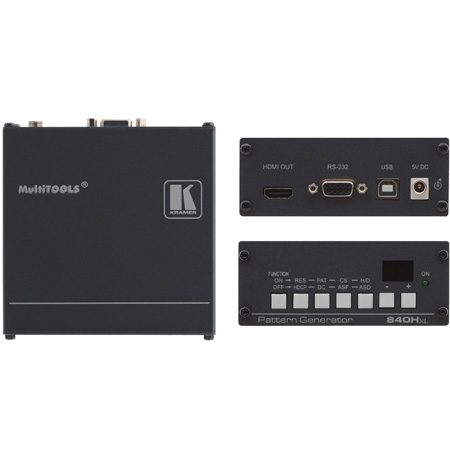

The 840Hxl is a high performance HDMI video test pattern generator. It generates 32 preset patterns at 16 popular computer, HD and seven user-defined resolutions. It includes several unique patterns that incorporate motion.


  • Features

    • Patterns - 32.
    • Output Resolutions - All common PC and HDTV resolutions.
    • Color Space - RGB, YUV 444, YUV 442 & Auto
    • Embedded Audio - 6 sample rates & 3 bit depths
    • HDTV Compatible.
    • Controls - HDCP On/Off, Embedded Audio On/Off.
    • Indicators - 2-digit display, power LED.

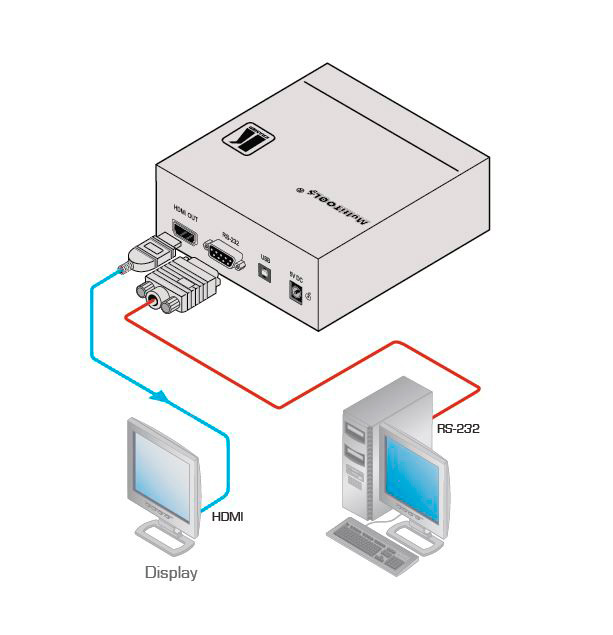

    • Control - USB and RS-232 ports for connecting to a controlling PC (PC control software included).
    • Compact MultiTOOLS - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter.

  • Specifications

    • OUTPUT: 1 HDMI connector.
    • OUTPUT RESOLUTIONS: VGA 640 x 480 @60Hz, 720 x 480 @60Hz, SVGA 800 x 600 @60Hz, XGA 1024 x 768 @60Hz, 1280 x 720 @60Hz, 1360 x 768 @60Hz, 1440 x 900 @60Hz, SXGA+ 1400 x 1050 @60Hz, SXGA 1280 x 1024 @60Hz, WSXGA+ 1680 x 1050 @60Hz, SXGA 1280 x 1024 @75Hz, HD 1080 1920 x 1080 @60Hz, WUXGA 1920 x 1200 @60Hz, UXGA 1600 x 1200 @60Hz, 720 x 480i @60Hz, HD 1080 1920 x 1080i @60Hz, Output native resolution, 720 x 480 @120Hz, 720 x 480 @240Hz, 720 x 576 @50Hz, 720 x 576 @100Hz, 720 x 576 @200Hz, 1440 x 576 @50Hz, 1440 x 576i @50Hz, 1280 x 720 @50Hz, 1280 x 720 @60Hz, 1280 x 720 @100Hz, 1280 x 720 @120Hz, 1440 x 288 @50Hz, 1440 x 480 @60Hz, 2880 x 240 @60Hz, 2880 x 288 @50Hz, 2880 x 480 @60Hz, 2880 x 480i @60Hz, 2880 x 576 @50Hz, 2880 x 576i @50Hz, 1920 x 1080 @25Hz, 1920 x 1080 @30Hz, 1920 x 1080 @50Hz, 1920 x 1080i @50Hz, 1920 x 1080 @60Hz, 1920 x 1080i @60Hz, 1920 x 1080i @100Hz, 1920 x 1080i @120Hz, 2K 2048 x 1080 @50Hz, 2K 2048 x 1080 @60Hz.
    • CONTROL: Five dual-function and two single function front panel buttons, remote control via USB or RS-232 on a 9-pin D-sub connector.
    • POWER CONSUMPTION: 5V DC, 460mA.
    • OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
    • STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F).
    • HUMIDITY: 10% to 90%, RHL non-condensing.
    • DIMENSIONS: 10.7cm x 10.0cm x 4.4cm (4.2" x 3.9" x 1.7") W, D, H.
    • WEIGHT: 0.4kg (0.88lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-1 rack adapter.



REVIEW SNAPSHOT®

by PowerReviews
Kramer 840Hxl HDMI Video Test Pattern Generator

4.0

(based on 1 review)

Ratings Distribution

  • 5 Stars



    (0)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Reviewed by 1 customer

Displaying review 1

Back to top


4.0

Good little unit

By Bob

from Chicago

About Me Experienced

Verified Buyer

Pros

  • Compact
  • Durable
  • Lightweight

Cons

  • Read The Manual

Best Uses

  • Testing Hdmi Signal Paths

Comments about Kramer 840Hxl HDMI Video Test Pattern Generator:

The unit works as described. Need to check with the manual on how to use the button panel, but it is very simple once its process is figured out. It is useful to verify the HDMI signal path and is a very inexpensive unit to do so.
