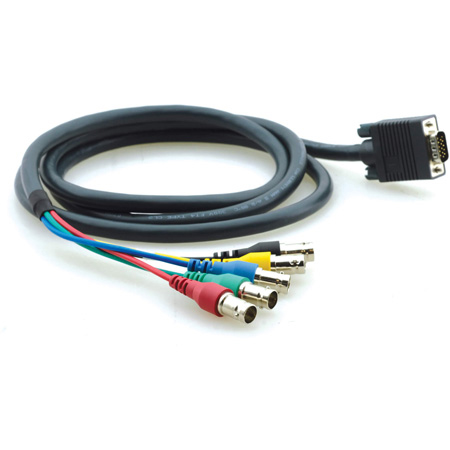

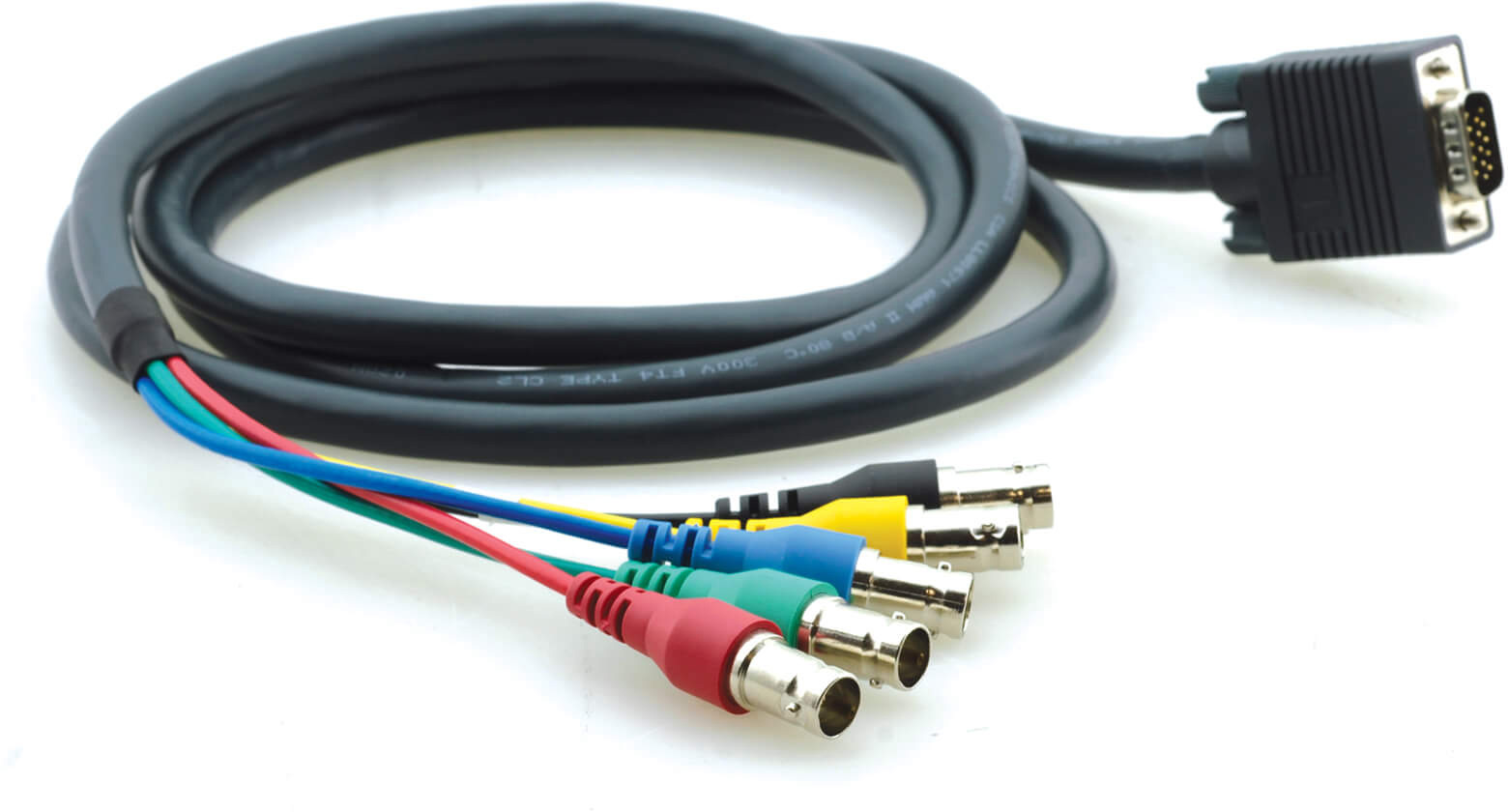

Kramer C-GM/5BF-10 Molded 15-pin HD (M) to 5 BNC (F) Breakout Cable - 10 Ft.
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Kramer C-GM/5BF-10 Molded 15-pin HD (M) to 5 BNC (F) Breakout Cable - 10 Ft.

    Manufacturer: Kramer

    Item #: KR-C-GM5BF-10   •   MFG #: KR-C-GM/5BF-10


    Our Price:$24.00

    free ship
    Availability: In Stock
    Item is Available for immediate shipping from our warehouse.



      Kramer's computer graphics video breakout cables are constructed of 5 mini coax cables with a molded 15-pin HD (M or F) on one end and 5 BNC (M or F) on the other. They convert between the two most common cabling formats used for routing computer graphic video signals, 15-pin HD, and 5 BNC.

      • Features

        • Quality Construction - Constructed using Kramer BC-5X high resolution mini coax cable, terminated with molded 15-pin HD connector on one end and 75 Ohm BNC connectors on the other.
        • Easy Installation - Models 6ft or longer have an 18in (460mm) long spread at the 5 BNC end to fit large routers/switchers such as the Sierra Pro 32 series.
        • Cable Specs - See Kramer BC-5X for detailed cable specs.
        • Varied Selection of Lengths - 0.5 to 100ft (0.2 to 30.5m).
      • Specifications

        • Attenuation (dB/100 ft.): -0.6 dB @ 1MHz.
        • -1.4 dB @ 5 MHz.
        • -2.1 dB @ 10 MHz.
        • -4.7 dB @ 50MHz.
        • -6.8 dB @ 100MHz.
        • -9.2 dB @ 180MHz.
        • -14.2 dB @ 400MHz.
        • -20.1 dB @ 750MHz.
        • -23.8 dB @ 1000MHz.
        • Coax Center Conductor: 28 AWG 7/36 tinned copper.
        • Dielectric: Foam polyethylene.
        • Shield: 90% braid 38 AWG tinned copper.
        • Coax Jacket Colors: Red, green, blue, yellow, black.
        • Outer Jacket: PVC.
        • Outer Jacket Color: Dark Gray w/white lettering.
        • Center Conductor: 0.015 inches, 0.38mm.
        • Dielectric: 0.063 inches, 1.6mm.
        • Individual Coax: 0.108 inches, 2.75mm.
        • Outside Diameter: 0.362 inches, 9.2mm.
        • Impedance: 75Ω.
        • DC Resistance: 72.2Ω per 1000ft, 237Ω per km.
        • Capacitance: 18.3pF per foot, 60pF per meter.
        • Velocity of Propagation: 78%.
        • Temperature: 68° to 167° fahrenheit, - 20° to 75° celsius.
        • UL: CL2.
        • CSA: C(UL) CL2.
