Kramer CP-3RVAM/3RVAM-35 Video/Audio Cable 3 RCA (Yellow/Red/Black) Plenum Rated Molded Connectors 35ft

ITEM #: KR-CP-3RVAM3RVM3 MFG #: CP-3RVAM/3RVAM-35

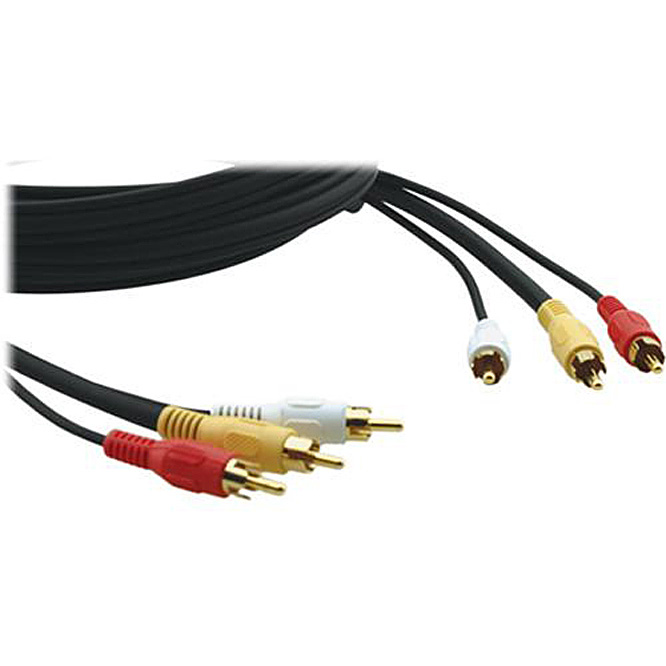

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-CP-3RVAM3RVM3

CP-3RVAM/3RVAM-35 - Overview

Kramer's CP-3RVAM/3RVAM is constructed of mini coax cable terminated with three molded male RCA connectors at each end. It offers outstanding durability and high-performance for any video/audio signal application where a plenum rating is required.

  • Features:

    • Plenum Rated - The low smoke and fire-resistant properties of plenum rated cable allow it to reside in air return spaces of ceilings, floors, and walls, often saving the cost of installing conduit.
    • Quality Construction - Constructed from flexible, high-quality plenum rated cable containing mini coaxes. Gold-plated contacts for corrosion resistance, long life, and precise connections.
    • Applications - Ideal for routing typical composite video and dual RCA stereo audio signals in professional AV systems.
    • Varied Selection of Lengths - Available in version of 10 to 150ft (3 to 45.7m).
    • Cable Specs - See Kramer BCP-5X bulk cable for detailed specs.


  • Specifications:

    • CONSTRUCTION
    • Coax Center Conductor: 26 AWG 7/34 tinned copper
    • Dielectric: Foamed FEP
    • Shield: (A) 38 AWG tinned copper 95% spiral braid
    • Shield: (B) 100% aluminum Mylar foil
    • Coax Jacket Colors: Red, green, blue, yellow, black
    • Outer Jacket: Lead free plenum rated PVC
    • Outer Jacket Color: Black with white lettering

    • DIAMETERS
    • Center Conductor: 0.48mm (0.019in)
    • Dielectric: 1.83mm (0.072in)
    • Individual Coax: 2.59mm (0.102in)
    • Outside Diameter: 7.62mm (0.300in)

      ELECTRICAL
    • Impedance: 75Ω
    • DC Resistance: 134.5Ω/km (41Ω/1000ft)
    • Capacitance: 16.0pF/ft
    • Velocity Of Propagation: 83%
    • Attenuation (db/100ft): -5.1dB @100MHz
    • Attenuation (db/100ft): -7.4dB @200MHz
    • Attenuation (db/100ft): -11.8dB @400MHz
    • Attenuation (db/100ft): -21.4dB @1000MHz
    • Voltage: 150V RMS
    • Temperature: -6° to 75°C (21° to 167°F)

    • REGULATORY
    • UL: CL2P
    • C (UL): CMP
    • NEC: In accordance with article 725
    • RoHS: In compliance with European directive 2002/95/IEC
    • Note: For best results, keep plenum cable at room temperature for 24 hours before use


  • Item Includes:

    • Kramer CP-3RVAM/3RVAM cable


  • Warranty:

    • Lifetime Warranty
