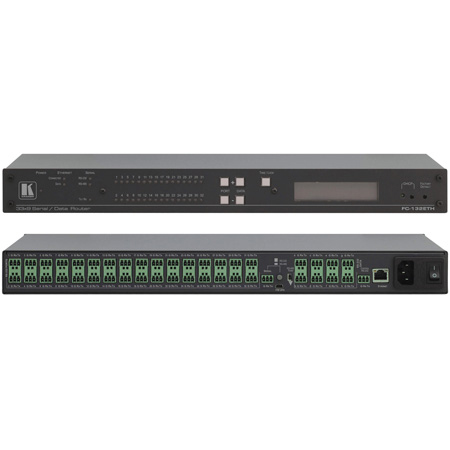

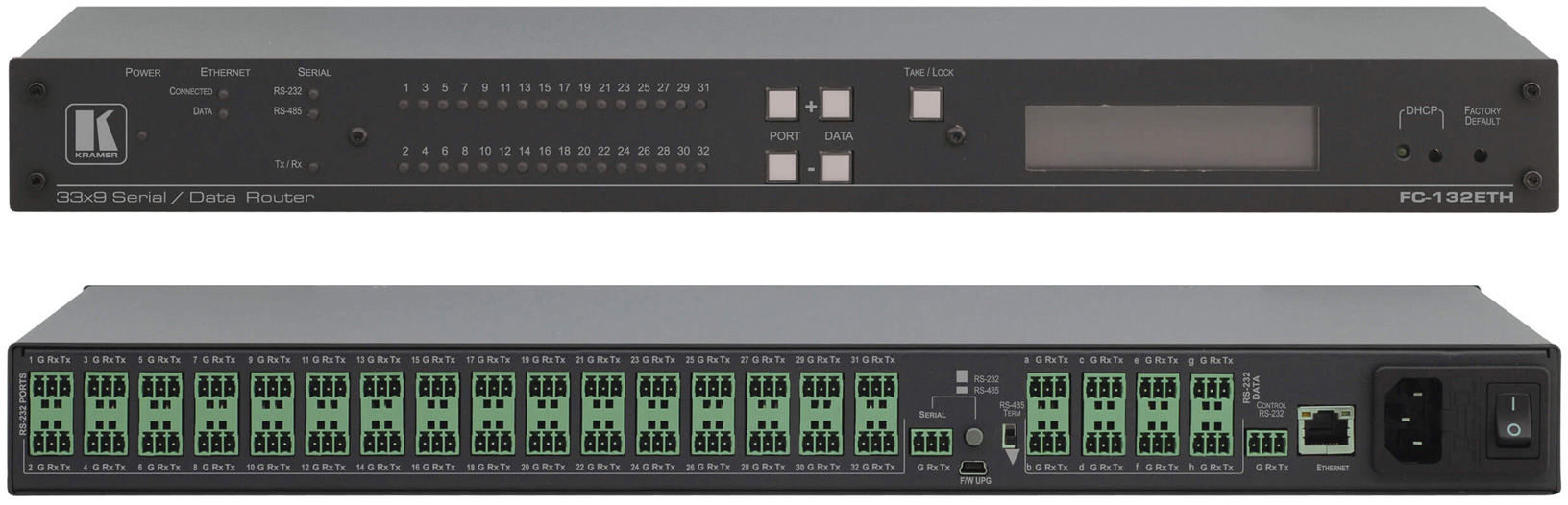

Kramer FC-132ETH 32 Port Serial Control Gateway and Advanced Serial Communication Matrix

ITEM #: KR-FC-132ETH MFG #: FC-132ETH/110V

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-FC-132ETH

FC-132ETH/110V - Overview

The Kramer FC-132ETH is an advanced Ethernet control gateway and serial communication matrix, capable of plug and play deployment over a your Ethernet LAN. Serving as an advanced serial communication matrix, the FC-132ETH has 32 RS-232 and one RS-232/RS-485 output ports. Serial communication data is switchable to one or more of the eight RS-232 input ports. This can be done according to local control of panel buttons or RS-232 control port, or remote control via Ethernet port control protocol or web-page browsing. Depending on matrix routing, one-to-one bidirectional or one-to-many unidirectional serial switched communication is supported. Serving as a control gateway, FC-132ETH is capable of remote bidirectional control of customer-controlled devices serially connected to its 32 RS-232 and one RS-232/RS-485 input ports. Multiple control clients can be IP-connected to the FC-132ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices, such as AV scalers, video displays, and audio amplifiers.

Perfect for:
Remote IP control of serial controlled devices
K-Touch multi-client IP room control
LAN-based expansion of K-Config control system
Conference room presentations
Advertising applications
Rental and staging

  • Features:

    • 1 RS-485 or RS-232 Selectable Bi-directional Output Port - Controls a device via bi-directional serial control protocols.
    • 32 Bidirectional RS-232 Output Ports - Control a device via bi-directional serial control protocols.
    • 8 Bidirectional RS-232 Input Ports - Switchable serial communication to one or more of the serial input ports.
    • 4 Panel Buttons & LCD Display - Local panel control of serial matrix ports switching.
    • 1 Panel Take / Lock Button - Local panel switching control or tampering prevention.
    • 1 Bidirectional RS-232 Control Port - Local protocol-based switching control port.
    • 1 Ethernet Control Port - Remote protocol-based control port.
    • Built-in Web Pages - Remote browser-based control and support.
    • Simultaneous IP Control Communication - With up to 40 IP control clients.
    • Mini USB Port - For firmware upgrades and local technical services.
    • Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.

  • Specifications:

    • PORTS
    • 1 RS-232/RS-485 selectable and 32 RS-232 serial output ports on 3-pin terminal blocks, 8 RS-232 serial input ports on 3-pin terminal blocks, 1 RS-232 serial control port on a 3-pin terminal block, 1 Ethernet on an RJ-45 connector, 1 mini USB connector for local services

    • SUPPORTED SERIAL PORT BAUD RATES
    • 1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps

    • RS-232 COMMUNICATION
    • Transparent up to 115200bps

    • MAXIMUM DATA HANDLING OF DEVICE
    • Up to 310kbps summed on all ports

    • CONTROLS
    • Serial Select button, RS-485 terminator switch, DHCP and Factory Default buttons. Front panel buttons and LCD display, RS-232, Ethernet

    • INDICATORS
    • Power, Ethernet, Serial I/O, and DHCP status LEDs

    • POWER CONSUMPTION
    • 100-240V AC, 50/60Hz, 17VA

    • OPERATING TEMPERATURE
    • 0° to +40°C (32° to 104°F)

      STORAGE TEMPERATURE
    • -40° to +70°C (-40° to 158°F)

    • HUMIDITY
    • 10% to 90%, RHL non-condensing

    • COOLING
    • Convection

    • ENCLOSURE TYPE
    • Aluminum

    • VIBRATION
    • ISTA 1A in carton (International Safe Transit Association)

    • SAFETY REGULATORY COMPLIANCE
    • CE

    • ENVIRONMENTAL REGULATORY COMPLIANCE
    • Complies with appropriate requirements of RoHs and WEEE

  • Item Includes:

    • FC-123eth Gateway
    • Power Cord
    • Rack Mounting Brackets

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063060930
