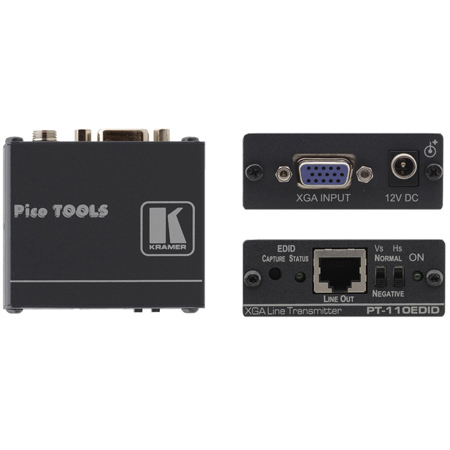

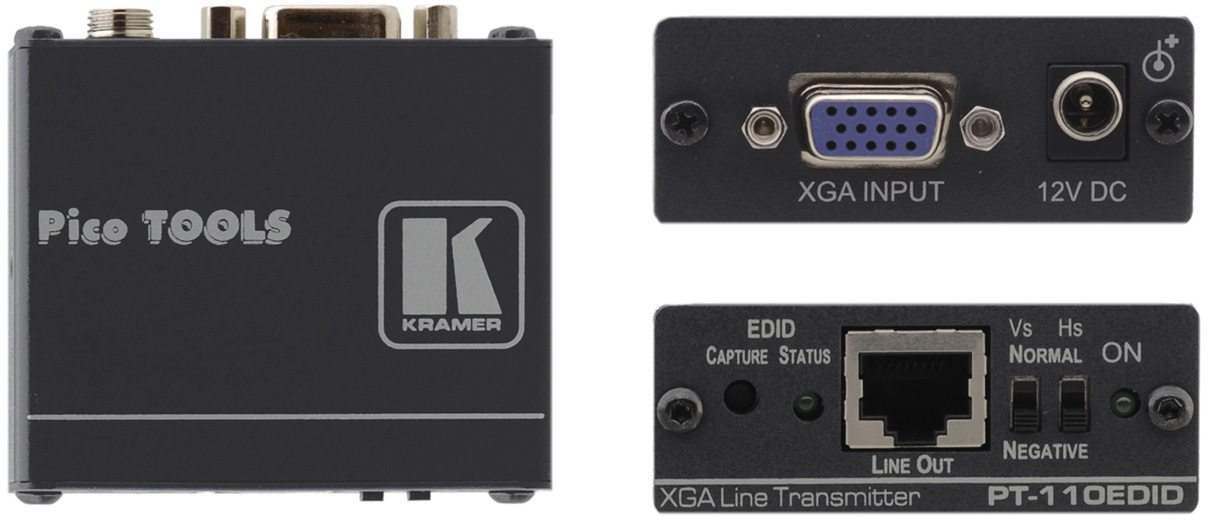

Kramer PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID
  • Kramer PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID
  • Kramer PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID

Questions? Ask a Markertek Expert:
800-522-2025 Email

Kramer PT-110EDID Computer Graphics Video over Twisted Pair Transmitter with EDID

Manufacturer: Kramer

Item #: KR-PT110EDID   •   MFG #: PT-110EDID



List Price:$225.00
Our Price:$180.00

free ship


Availability: In Stock
i
Item is Available for immediate shipping from our warehouse.




    Share!

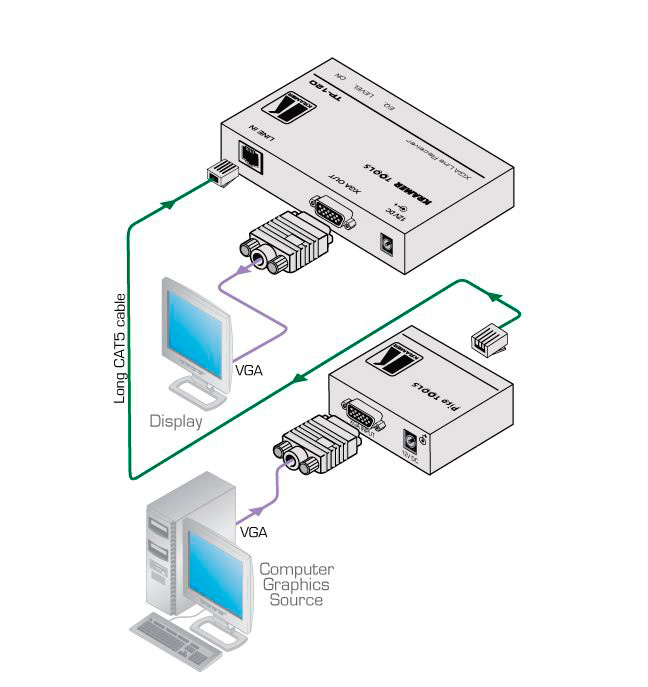

    The PT-110EDID is a twisted pair transmitter for computer graphics video signals. It converts a computer graphics signal into a twisted pair signal that is converted back to a computer graphics video signal when used with a compatible receiver.


    • Features

      • Max. Resolution - WUXGA & 1080p.
      • HDTV Compatible. EDID Capture - Copies and stores the EDID from a display device.
      • Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
      • System Range - Up to 100m (320ft). Greater distances possible depending on resolution and cable.
      • Cable - STP (shielded twisted pair) such as CAT 5.
      • Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 150ft (50m) of each other.
      • Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter.

    • Specifications

      • INPUT: 1 VGA/UXGA on a 15-pin HD connector.
      • OUTPUT: 1 RJ-45 LINE OUTPUT connector.
      • RESOLUTION: Up to WUXGA & 1080p.
      • S/N RATIO: 69dB (worst case).
      • COUPLING: AC.
      • POWER CONSUMPTION: 12V DC, 320mA.
      • DIMENSIONS: 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H.
      • WEIGHT: 0.14kg (0.31lbs) approx.
      • ACCESSORIES: Power supply.
      • OPTIONS: RK-4PT 19-inch rack adapter
