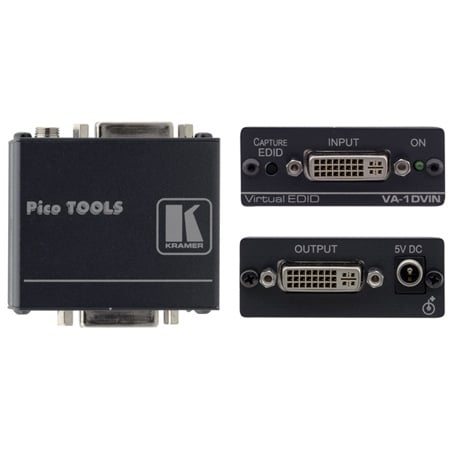

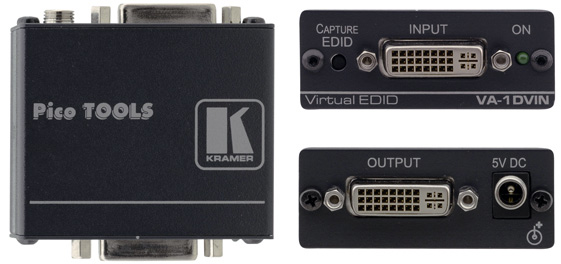

Kramer VA-1DVIN DVI EDID Emulator

Manufacturer: Kramer

Item #: KR-VA-1DVIN   •   MFG #: VA-1DVIN



List Price:$145.00
Our Price:$115.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





The VA-1DVIN is an EDID emulator for DVI-D signals. The unit can capture an EDID setting in non-volatile memory from the output allowing convenient and reliable connection to the source.


  • Features

    • Max. Data Rate - 3.3Gbps.
    • Input/Output - DVI-D signals on DVI-I connectors. Passes analog signals on the DVI-I connector without processing.
    • Control - Capture button.
    • Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side by side in a 1U rack space with the optional RK-4PT rack adapter.

  • Specifications

    • INPUT: 1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL).
    • OUTPUT: 1 DVI dual link, DVI 1.0, 1.2Vpp on a DVI Molex 24-pin female connector; DDC signal 5Vpp (TTL).
    • BANDWIDTH: 3.3Gbps.
    • CONTROLS: Capture EDID button.
    • POWER CONSUMPTION: 5V DC, 20mA.
    • DIMENSIONS: 6.22cm x 5.24cm x 2.41cm (2.45" x 2.06" x 0.95") W, D, H.
    • WEIGHT: 0.15kg (0.55lbs) approx.
    • ACCESSORIES: Power supply.
    • OPTIONS: RK-4PT 19" rack adapter
