Kramer VM-114H4C 2x1:4 HDMI Switcher with CAT5 Twisted Pair Transmitter & CAT5 Twisted Pair Distribution Amplifier
  • Kramer VM-114H4C 2x1:4 HDMI Switcher with CAT5 Twisted Pair Transmitter & CAT5 Twisted Pair Distribution Amplifier
  • Kramer VM-114H4C 2x1:4 HDMI Switcher with CAT5 Twisted Pair Transmitter & CAT5 Twisted Pair Distribution Amplifier
  • Kramer VM-114H4C 2x1:4 HDMI Switcher with CAT5 Twisted Pair Transmitter & CAT5 Twisted Pair Distribution Amplifier

Questions? Ask a Markertek Expert:
800-522-2025 Email

Kramer VM-114H4C 2x1:4 HDMI Switcher with CAT5 Twisted Pair Transmitter & CAT5 Twisted Pair Distribution Amplifier

Manufacturer: Kramer

Item #: KR-VM-114H4C   •   MFG #: VM-114H4C



List Price:$1,795.00
Our Price:$1,436.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


  • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


Share!





Required Accessories

    Show More

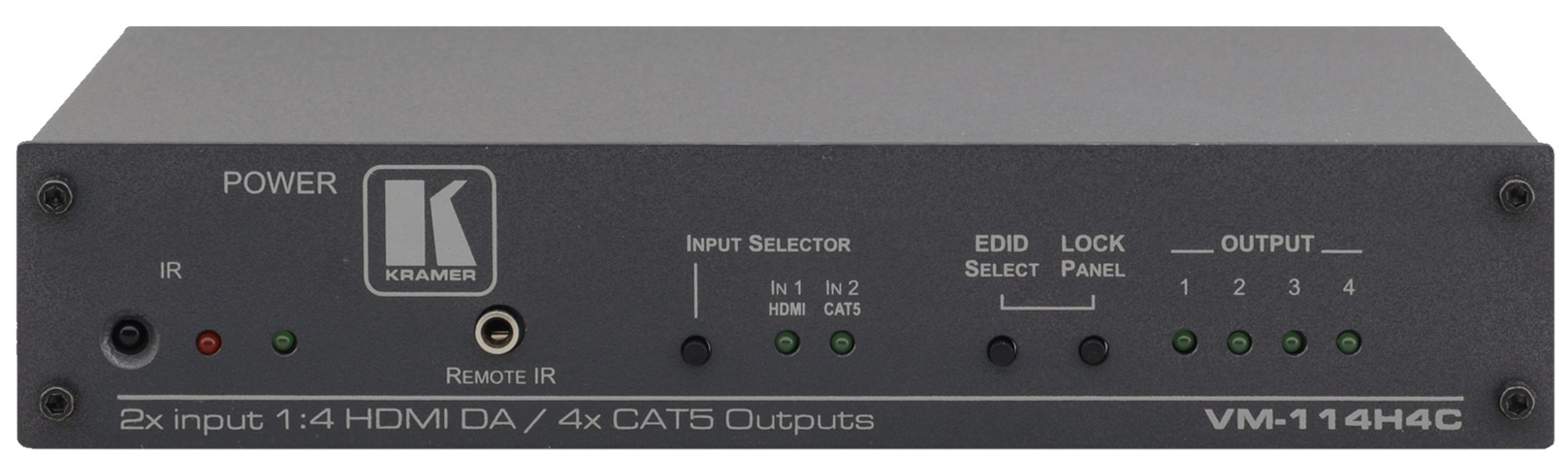

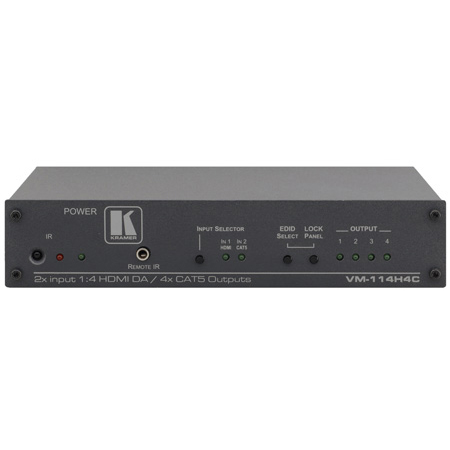

The VM-114H4C is a high-performance switcher and distribution amplifier for HDMI and twisted pair signals. It reclocks and equalizes one of two selectable input signals (HDMI or twisted pair) and distributes it to four twisted pair outputs.


  • Features

    • Max. Data Rate - 2.25Gbps bandwidth per graphic channel.
    • HDTV Compatible
    • HDCP Compliant
    • Inputs - HDMI and twisted pair on an RJ45 connector.
    • Outputs - 4 twisted pairs on RJ45 connectors.
    • I-EDIDPro Kramer Intelligent EDID Processing - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
    • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTSHD).
    • 3D Pass-Through.
    • Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
    • System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC-DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC-DGKat723 cable.
    • Cable - Requires STP (shielded twisted pair) cable.Note that the transmission range depends on the signal resolution, graphics card and display used. Use only shielded cable where both ends of the shield are soldered to ground.
    • Active Input & Output LED Indicators.
    • Power Connect System - A single connection to the transmitter or the receiver powers both units when the devices are within 90m (270ft) of each other.
    • Flexible Control Options - Front panel buttons, RS232, infrared control sensor, remote included.
    • Desktop Size - Compact size. ½ rack width, can be rack mounted in a 1U rack space with an optional RK-1 adapter.
    • Use with Kramer KR-PT-572-PLUS HDMI CAT5 receiver

  • Specifications

    • INPUTS: 1 HDMI connector; 1 twisted pair on an RJ?45 connector
    • OUTPUTS: 4 twisted pairs on RJ45 connectors
    • BANDWIDTH: Supports up to 2.25Gbps bandwidth per graphic channel
    • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP
    • CONTROLS: Input select button, EDID select button, panel lock button
    • INDICATOR LEDs: IR communication, power, IN 1 (HDMI), IN 2 (CAT5), OUTPUT 1, 2, 3 and 4
    • POWER SOURCE: 12V DC, 2A
    • DIMENSIONS: 8.5" x 6.4" x 1.7") W, D, H
    • WEIGHT: 0.3kg (0.67lbs) approx
    • ACCESSORIES: Power supply, bracket installation kit
    • OPTIONS: HDMI/HDMI male to male cables, RK-3T 19" rack adapter
