VM-12HDCP - Overview

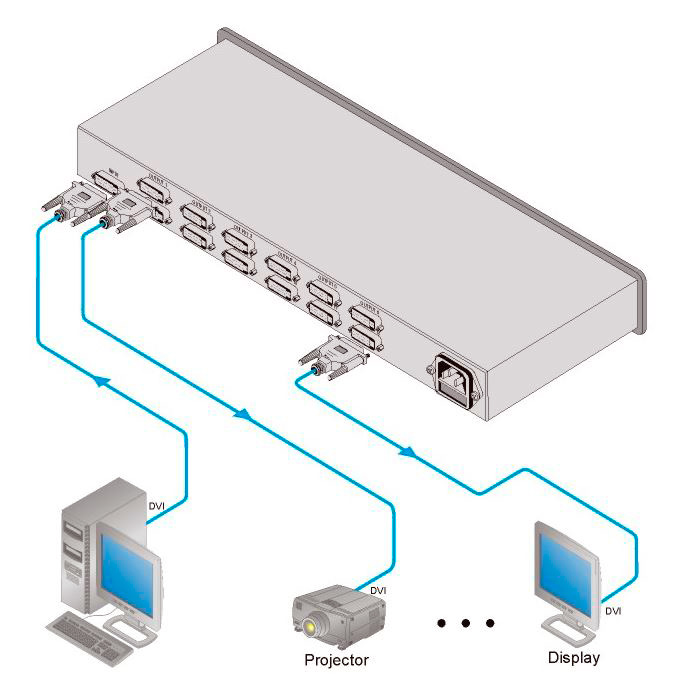

The VM-12HDCP is an HDCP-compliant distribution amplifier for DVI-D signals with resolution up to 1080p or UXGA. It reclocks and equalizes the signal and distributes it to 12 identical outputs.

  • Features:

    • Max. Data Rate - 1.65Gbps.
    • HDTV Compatible.
    • HDCP Compliant.
    • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
    • Enhanced EDID (Extended Display Identification Data) - The unit can store and recall a default EDID setting in non-volatile memory from one of the outputs allowing convenient and reliable connection to the source.
    • Active Input & Output LED Indicators.
    • Worldwide Power Supply - 100-240V AC.
    • Standard 19" Rack Mount Size - 1U. Rack "ears" included.


  • Specifications:

    • INPUT: 1 DVI-D on a DVI-I connector, 1.2Vpp; DDC signal 5Vpp (TTL).
    • OUTPUTS: 12 DVI-D on DVI-I connectors, 1.2Vpp; DDC signal 5Vpp (TTL).
    • BANDWIDTH: 4.95Gbps (1.65Gbps per graphic channel).
    • CONTROLS: SELECT and READ buttons for selecting and storing EDID information.
    • POWER CONSUMPTION: 100-240V AC, 50/60Hz, 11VA.
    • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
    • WEIGHT: 2.5kg (5.5lbs) approx.
    • ACCESSORIES: Power cord, rack "ears".


  • GTIN:

    7291063001933
