Kramer VM-2HXL 1:2 HDMI Distribution Amplifier
  • Kramer VM-2HXL 1:2 HDMI Distribution Amplifier
  • Kramer VM-2HXL 1:2 HDMI Distribution Amplifier
Questions? Ask a Markertek Expert:
800-522-2025 Email

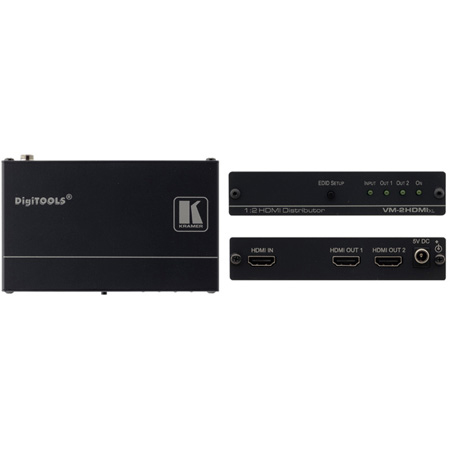

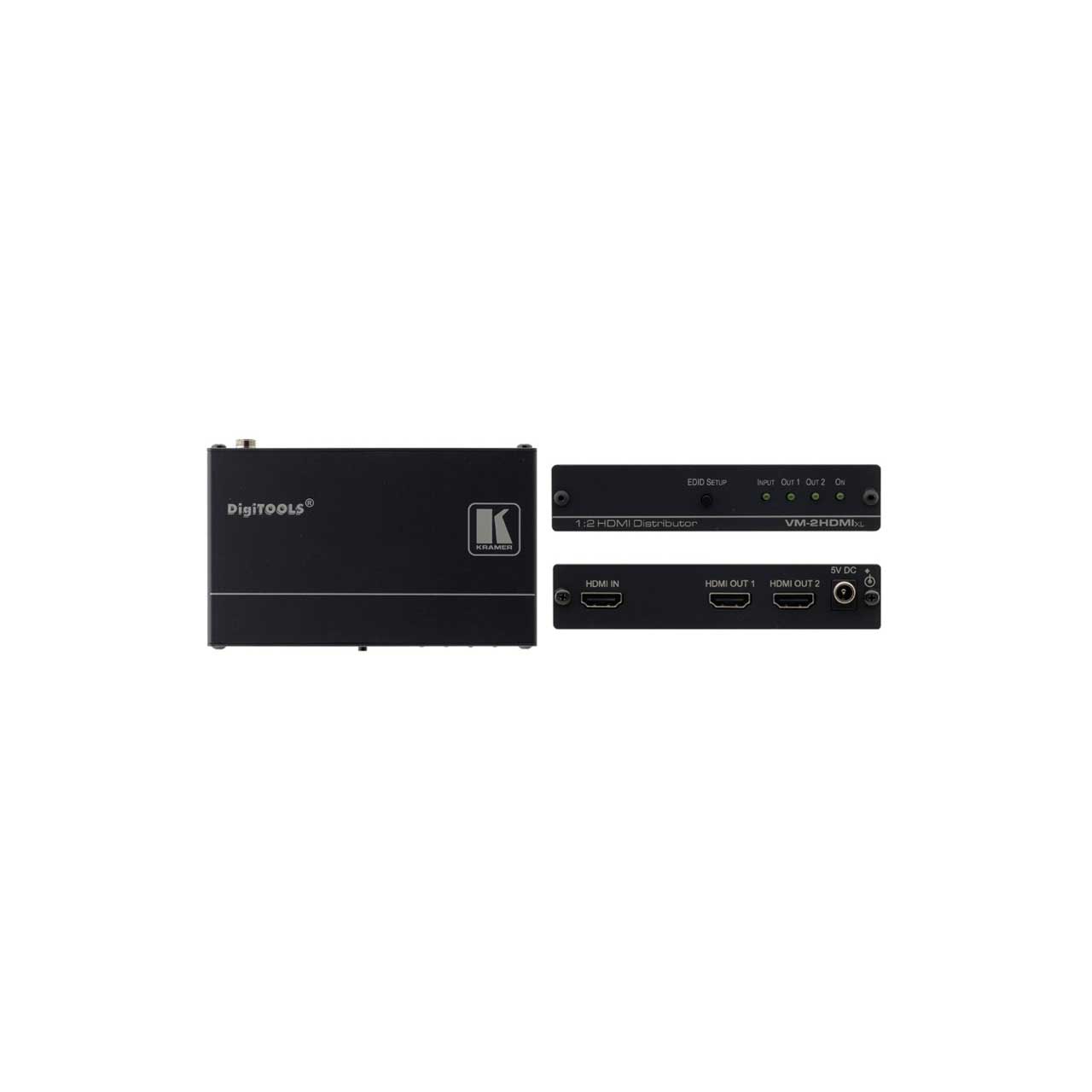

Kramer VM-2HXL 1:2 HDMI Distribution Amplifier

Manufacturer: Kramer

Item #: KR-VM-2HDMIXL   •   MFG #: VM-2HDMIXL


List Price:$295.00
Our Price:$236.00

free ship
Availability: In Stock
Item is Available for immediate shipping from our warehouse.

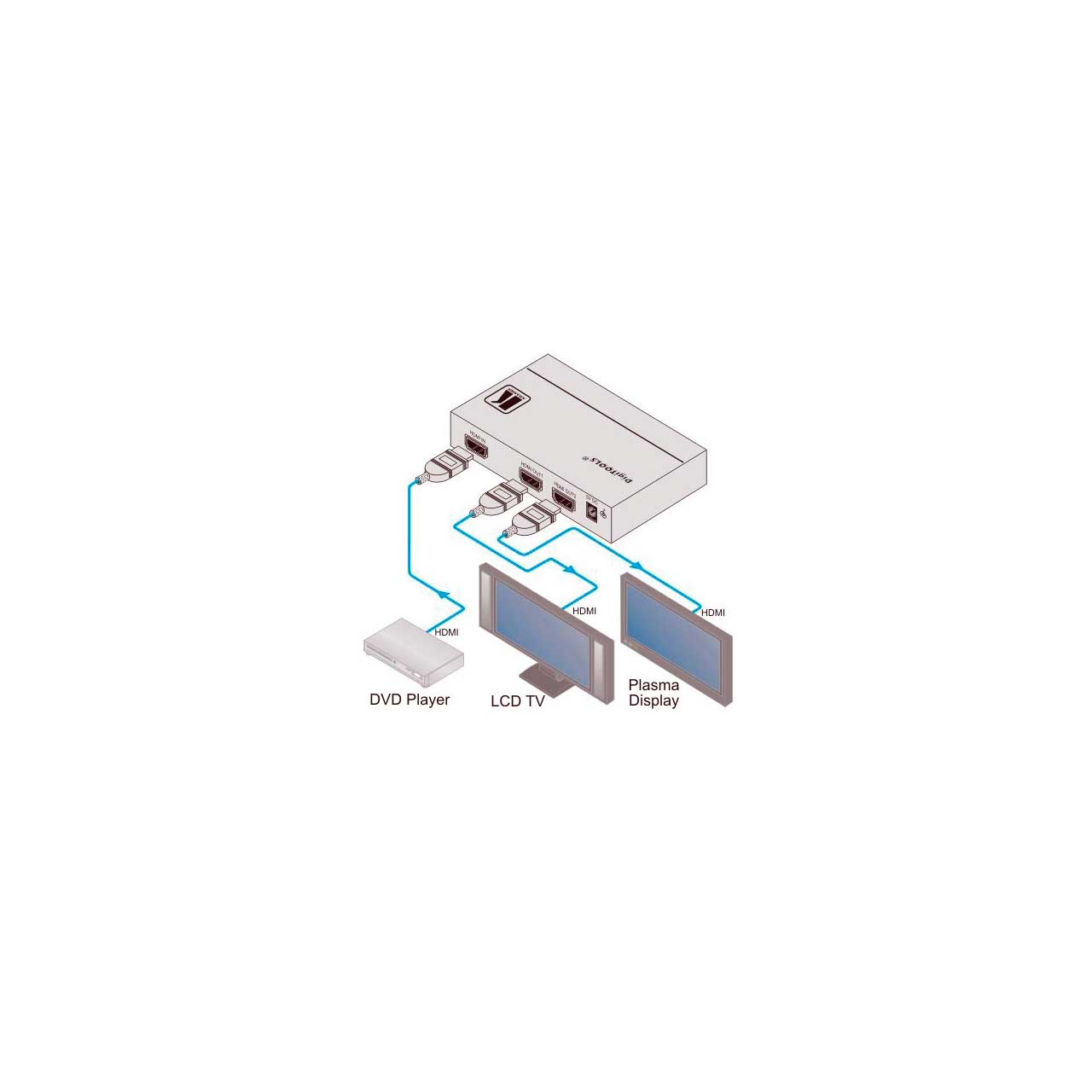

    The VM-2HDMIxl is a distribution amplifier for HDMI signals. The unit reclocks and equalizes the signal and distributes it to two identical outputs.

    • Features

      • Max. Data Rate - 2.25Gbps.
      • HDTV Compatible.
      • HDCP Compliant.
      • HDMI 1.3a Compliant.
      • Enhanced EDID (Extended Display Identification Data) - The unit can store and recall a default EDID setting in non-volatile memory from one of the outputs allowing convenient and reliable connection to the source.
      • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal integrity to travel longer distances.
      • Active Output LED.
      • Compact DigiTOOLS® - 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
    • Specifications

      • INPUT: 1 HDMI connector.
      • OUTPUTS: 2 HDMI connectors.
      • MAX. DATA RATE: 6.75Gbps (2.25Gbps per graphic channel).
      • CONTROLS: EDID SETUP button, input select button.
      • INDICATOR LEDs: IN 1, IN 2, OUT 1, OUT 2, and ON LEDs.
      • POWER CONSUMPTION: 5V DC, 910mA.
      • DIMENSIONS: 12cm x 7.2cm x 2.4cm (4.7" x 2.8" 1.0") W, D, H.
      • WEIGHT: 0.3kg (0.67lbs) approx.
      • ACCESSORIES: Power supply, bracket installation kit.
      • OPTIONS: RK-3T 19" rack adapter.
