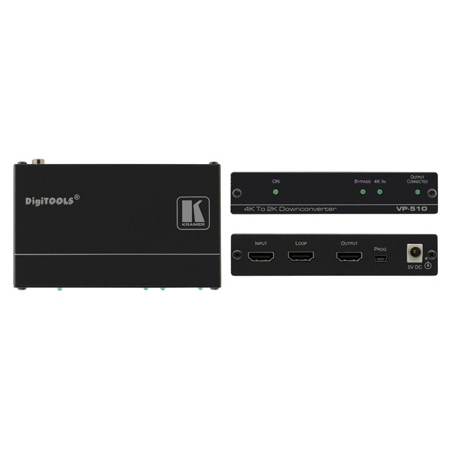

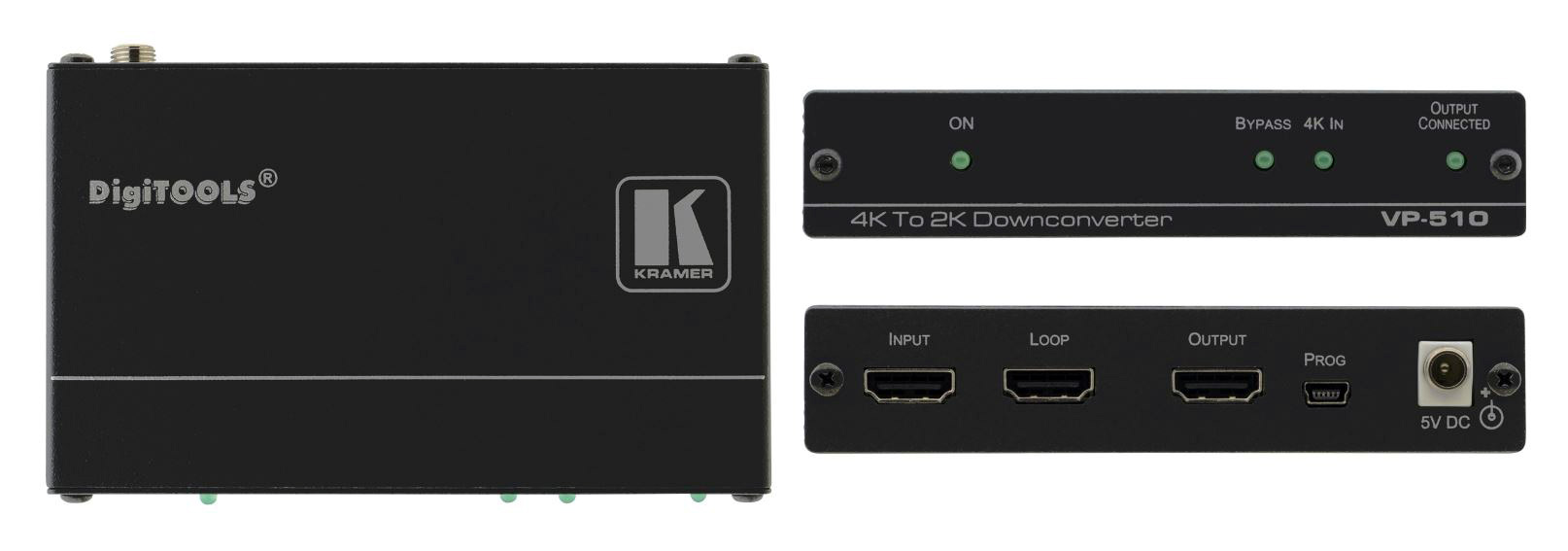

Kramer VP-510 4K to 2K Down-Converter

ITEM #: KR-VP-510 MFG #: VP-510

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the KR-VP-510

VP-510 - Overview

HDMI Signal Downscaling - From 4K UHD to 2K/1080p

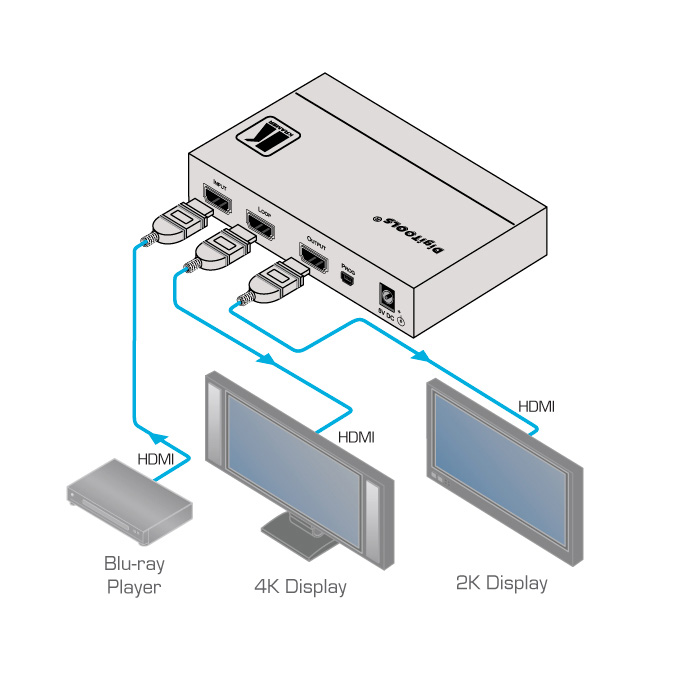

The Kramer VP-510 is a down-converter for 4K HDMI signals. The unit takes a 4K resolution input, provides a loop output and down-converts it to 2K resolution. It allows the use of legacy equipment with 4K signals (23.98Hz to 30Hz).

Perfect for:
Using legacy equipment with the latest 4K signals
Multimedia, board rooms, and video-conferencing

  • Features:

    • HDMI Signal Downscaling - From 4K UHD to 2K/1080p.
    • Resolution Support - 4K@24Hz 4096x2160p and 4K@24/25/30Hz 3840x2160p.
    • HDMI Signal Bypass - For non-4K resolutions.
    • HDMI Looping Input.
    • Max. Data Rate - 10.2Gbps (3.4Gbps per graphic channel).
    • HDMI Support - 3D, Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS-HD® and 7.1 PCM.

  • Specifications:

    • INPUTS
    • 1 HDMI (looping) on an HDMI connector

    • OUTPUTS
    • 1 HDMI and 1 loop on HDMI connectors

    • PORT
    • 1 mini-USB for firmware upgrading

    • MAX. DATA RATE
    • 10.2Gbps (3.4Gbps per graphic channel)

    • INDICATOR LEDS
    • ON, BYPASS, 4K IN, OUTPUT CONNECTED

    • SUPPORTED STANDARDS
    • Up to HDCP 1.4

    • SUPPORTED 4K RESOLUTIONS
    • 3840x2160 @23.98/24Hz (HDMI_VIC 3), 3840x2160 @25Hz (HDMI_VIC 2), 3840x2160 @29.97/30Hz (HDMI_VIC 1), 4096x2160 @23.98/24Hz (HDMI_VIC 4)

    • POWER CONSUMPTION
    • 5V DC, 550mA

    • OPERATING TEMPERATURE
    • 0° to +40°C (32° to 104°F)

    • STORAGE TEMPERATURE
    • -40° to +70°C (-40° to 158°F)

    • HUMIDITY
    • 10% to 90%, RHL non-condensing

  • Item Includes:

    • VP-510 Down-Converter
    • Power Supply

  • Warranty:

    • Limited 7 Year Warranty

  • GTIN:

    7291063072360
