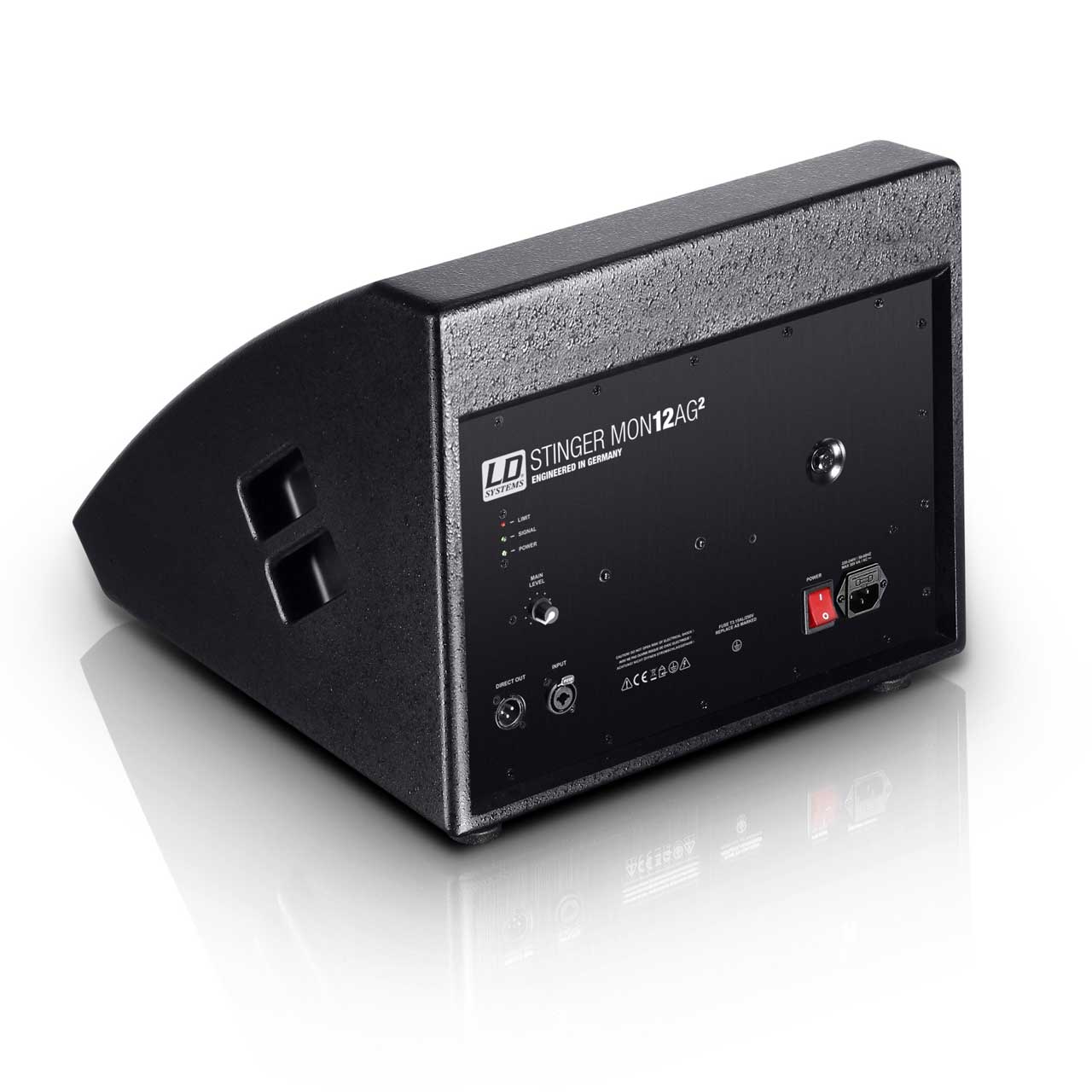

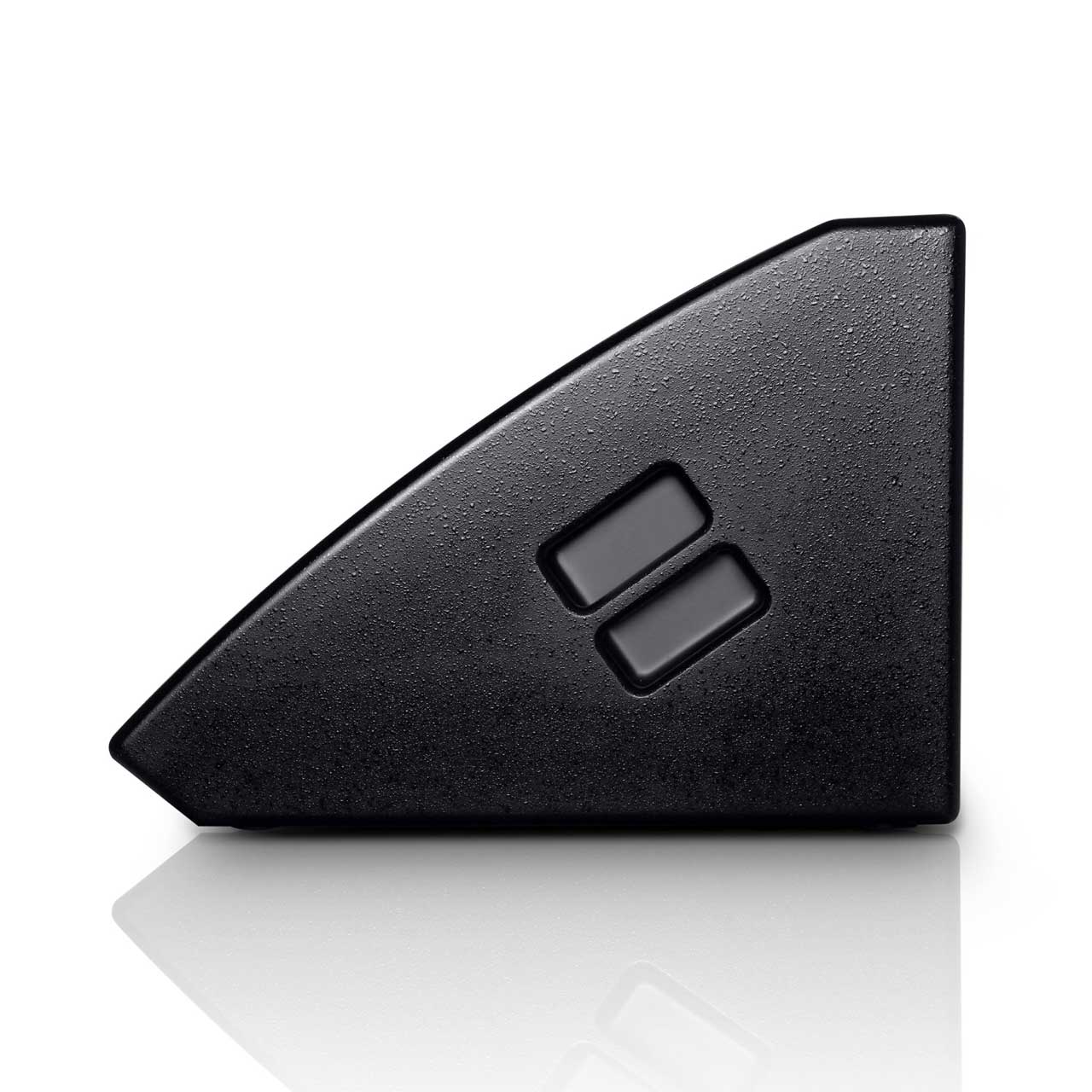

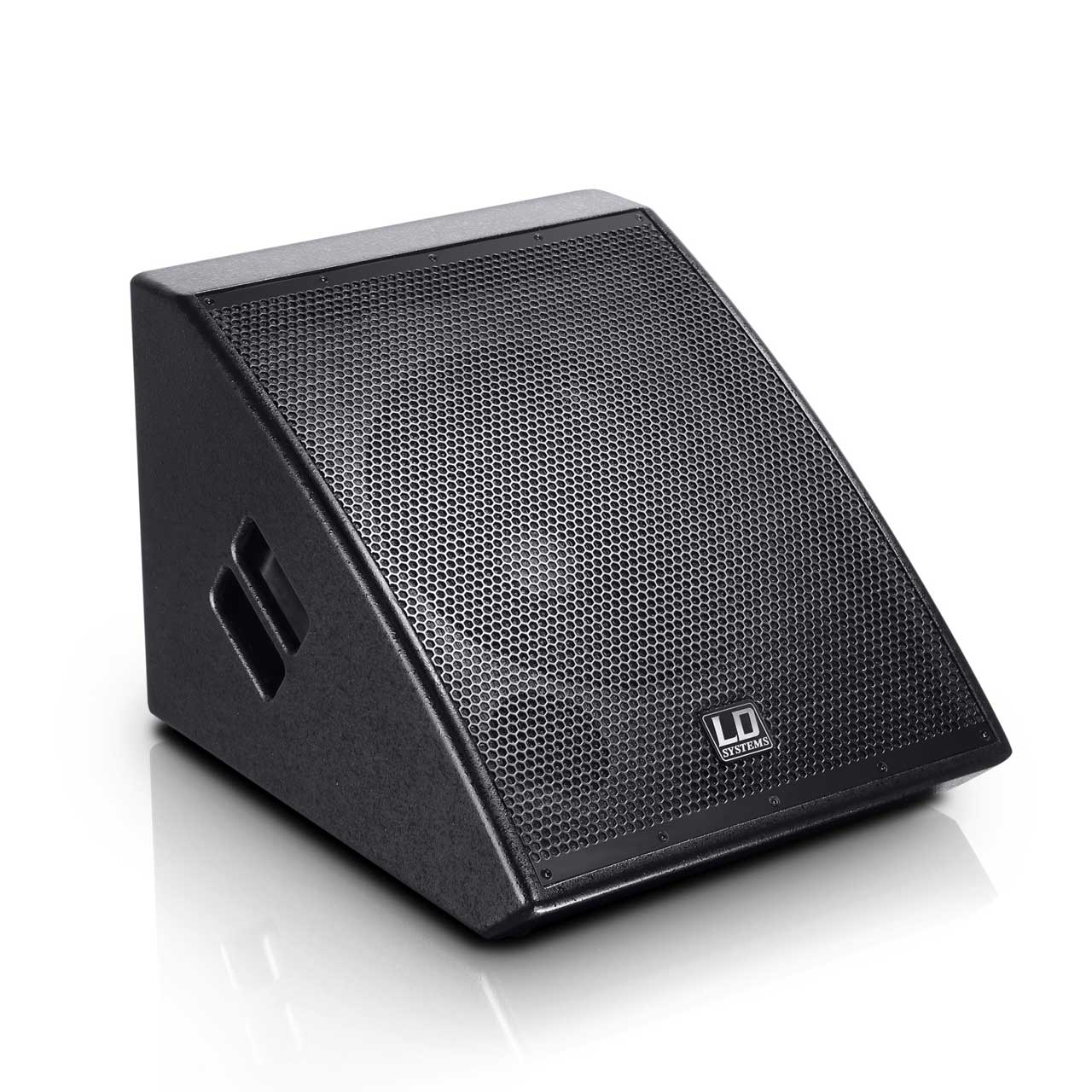

LD Systems MON121AG2 - 12 Inch Active Stage Monitor

Manufacturer: LD Systems

Item #: LDS-MON121AG2   •   MFG #: MON121AG2




The specially developed 12" coaxial speaker with an integral 1" HF driver and powerful ferrite magnets stands out because of a precisely symmetrical dispersion over 75° x 75° and attains a maximum sound-level pressure of 124dB with maximum resistance to feedback. It is driven by a Class AB power amplifier with a power output of 1000W Peak. The frequency response curve is 80Hz - 20kHz. Dependable operation of the LD MON121AG2 is ensured by a limiter that prevents overloading of the speaker and a protection circuit that guards against short-circuiting.

  • Specifications

    • Product type: stage monitors
    • Type: active
    • Low/mid driver dimensions: 12"
    • Low/mid driver dimensions (mm): 304mm
    • Woofer type: coaxial loudspeaker
    • Woofer magnet: Ferrite
    • Woofer brand: Custom-made
    • Woofer voice coil: 2"
    • Woofer voice coil (mm): 50.8mm
    • HF driver dimensions: 1"
    • HF driver dimensions (mm): 25.4mm
    • HF driver magnet: Ferrite
    • HF driver brand: Custom-made
    • HF driver voice coil: 1"
    • HF driver voice coil (mm): 25.4mm
    • Amplifier: Class A/B
    • Dispersion (H x V): 75 x 75°
    • RMS: 250W
    • Peak power: 1000W
    • Frequency response: 80 - 20000Hz
    • Crossover frequency: 2200Hz
    • SPL (1W/1m): 100dB
    • Max. SPL (continuous): 116dB
    • Max. SPL (peak): 124dB
    • Protection circuits: short circuit, limiter
    • Controls: volume, On / Off
    • Display: limit, Power, signal
    • Line Inputs: 1
    • Line input connectors: XLR, 6.3 mm Jack
    • Line Outputs: 1
    • Line output connectors: XLR
    • Operating voltage: transformer, 230 V AC / 50-60 Hz
    • Cabinet material: 15 mm Plywood
    • Cabinet construction: vented
    • Monitor angle: 35°
    • Width: 440mm
    • Depth: 360mm
    • Height: 514mm
    • Weight: 17.8kg
    • Features: ergonomically shaped insert handles
