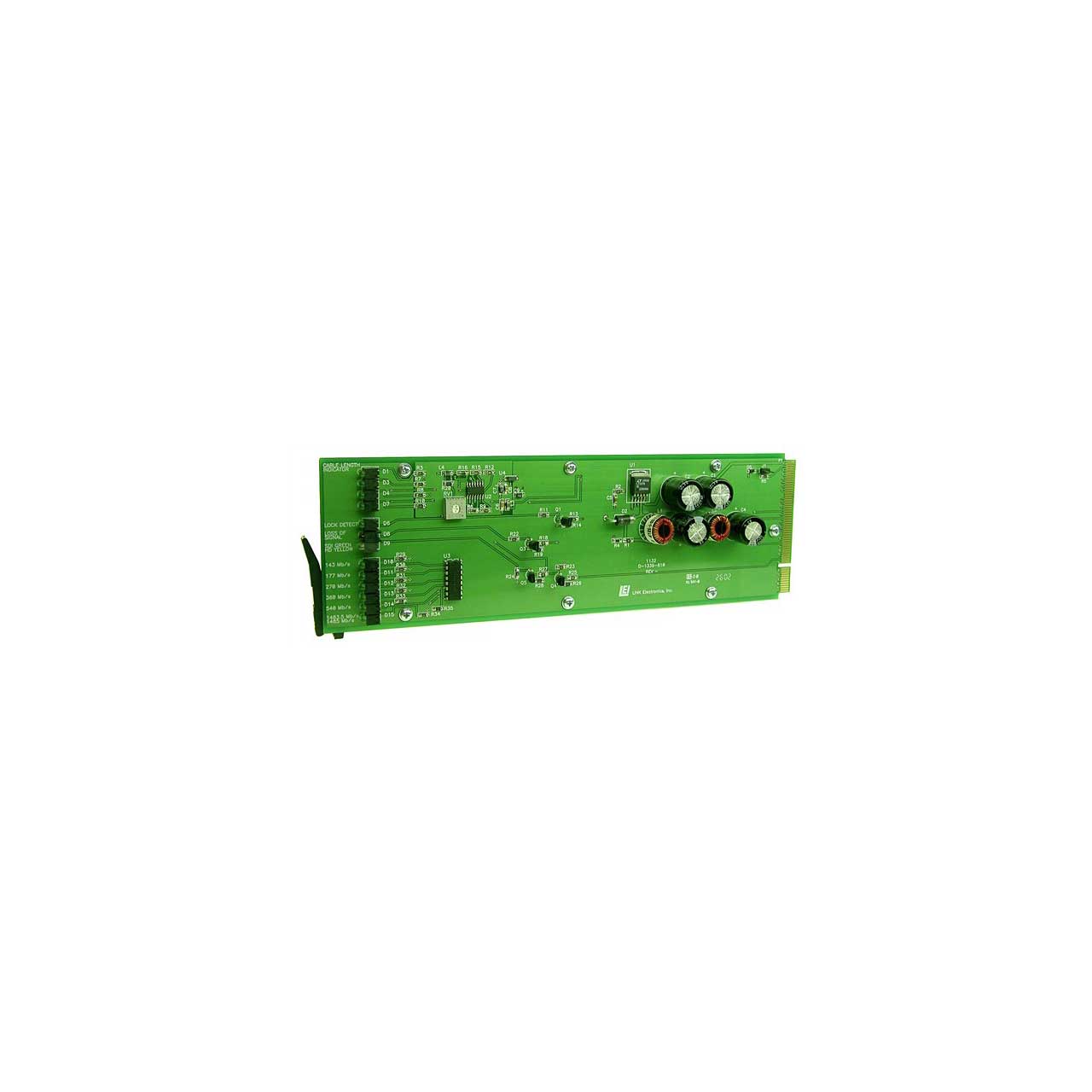

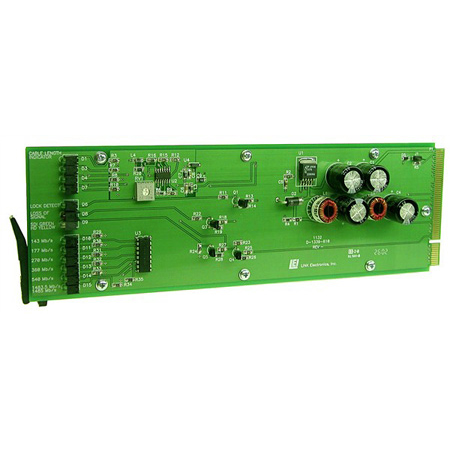

The LINK 1132 DigiFlex serial distribution amplifier restores the incoming signal to its proper amplitude. The signal is reshaped with automatic equalization, and DC restoration. The 1132 `s maximum equalized length for cable for SD is 300m at 270Mb/s, and for HD, 100m at 1.485Gb/s.
Eight outputs are provided on a removable rear cell 1033, and four outputs are provided on the 1032 rear cell. An LED at the front edge of the front module, and one on the rear module indicate a Loss of Signal.
A rear I/O module must be selected for the specific front signal module. The signal module and rear I/O module with the flexibility of the frame place virtually no limits on the versatility of the DigiFlex 1000 system.
The input signal can be 143Mb/s, 177Mb/s, 2 7 0 M b / s , 3 6 0 M b / s , 5 4 0 M b / s , a n d 1.4835/1.485Gb/s standards. The front module has LED's that tell if the input signal has locked, and the data rate that it is locked.
The 1000 series DigiFlex modules are compact designs that allow eleven modules to mount in the 1000 frame and ten modules with a redundant power supply. Any 1000 series module will operate in the 1000 frame in any configuration, audio or video, digital/analog, generators or test modules.
Backed by Link's 10-year warranty, the 1132 will provide years of outstanding performance.
