Link Electronics LEI-564 AFD Insertion Module
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Link Electronics LEI-564 AFD Insertion Module

    Manufacturer: Link Electronics, Inc

    Item #: LEI-564   •   MFG #: LEI-564


    List Price:$1,575.00
    Our Price:$1,239.35

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.
    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.

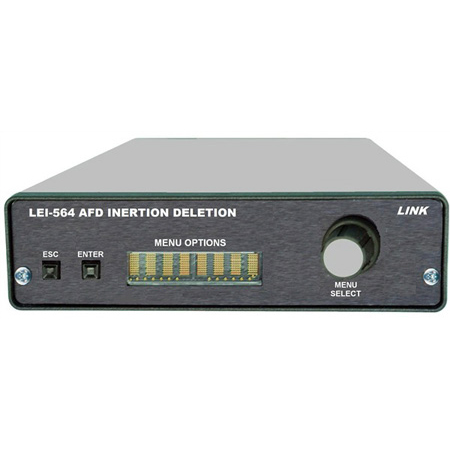

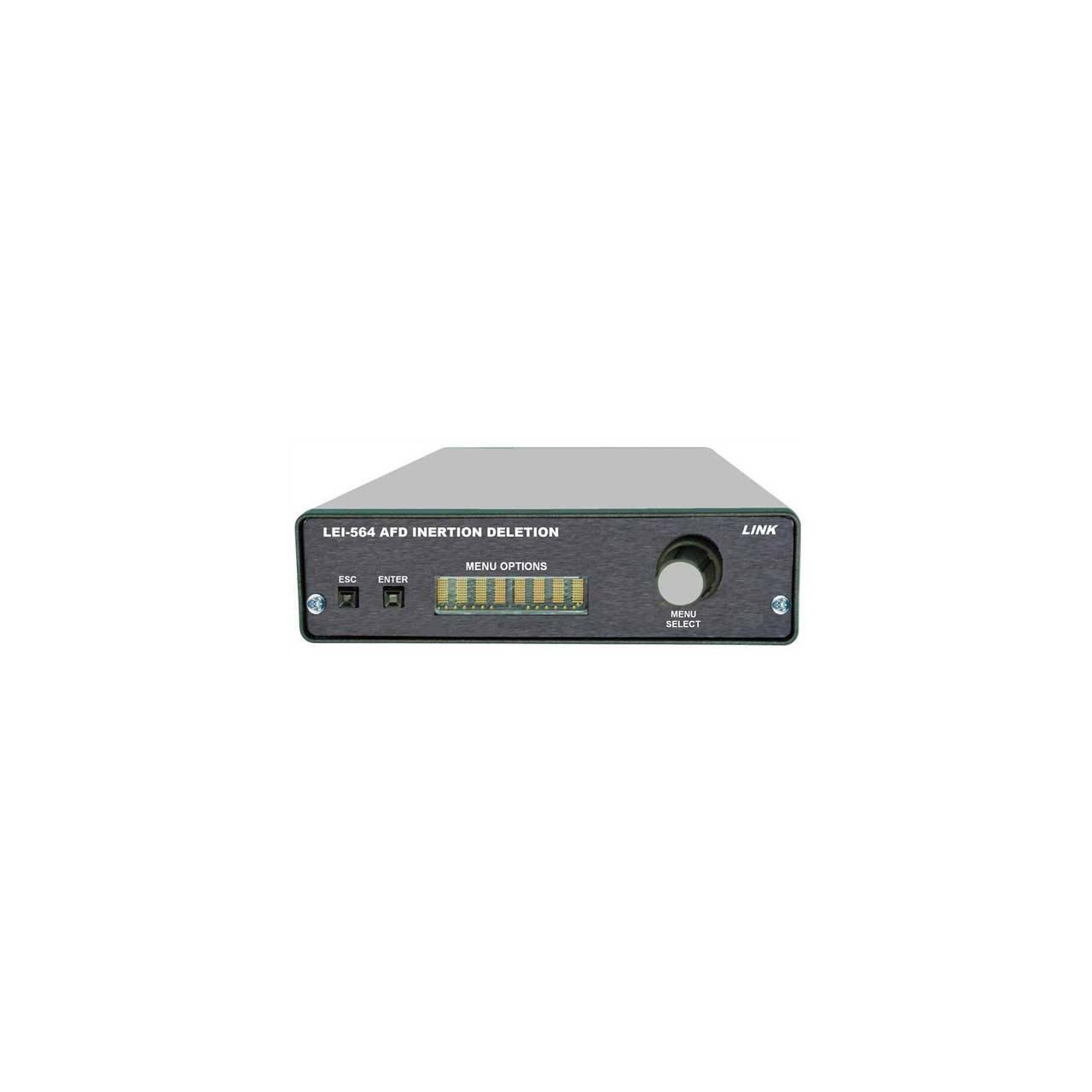

    The LEI-564 is a product for inserting Active Format Description (AFD) data into an HD/SD SDI video signal. The LEI-564 automatically detects either SD-SDI or HD-SDI input and transmits a re-clocked signal out through two SDI outputs.

    AFD is a system of codes used to tell DTV receivers, up/down converters, and other professional video equipment, how the video signal is to be displayed, especially if the aspect ratio has changed. AFD in video production is a versatile tool that eases workflow and preserves image quality. Properly managing AFD information is in demand for state-of-the-art digital work-flows. As video productions migrate to storing all their material in HD only and converting to SD as necessary for final transmission, the LEI-564 offers a simple and reliable solution for adding in AFD for the implementation of the up/down conversion process.

    The video signal format can be a 270 Mb/s SD or 1.5Gb/s & 3Gb/s HD video stream. There is automatic detection of most SD and HD video standards. The signal presence and format are indicated on the display. The AFD data is inserted as vertical ancillary data on video lines 8-21, selected by the user. The unit is controlled by an 8 character display, with menu navigation by 2 buttons and a rotary encoder.

    The 4 modes of operation include; `Detect', `Insert', `Delete' and `Auto'. `Auto' is used for inserting AFD, only if there is no AFD detected. `Detect' mode will display the AFD already in the stream. Settings are saved in flash for easy configuration. The unit also regenerates the payload identifier (352M) for all outputs.

    The LEI-564 is a one RU chassis that is housed in the same case as the well accepted 700 series. A black front panel distinguishes between the two series. Three 500 or 700 series can be mounted in the PRT-700 rack tray.
