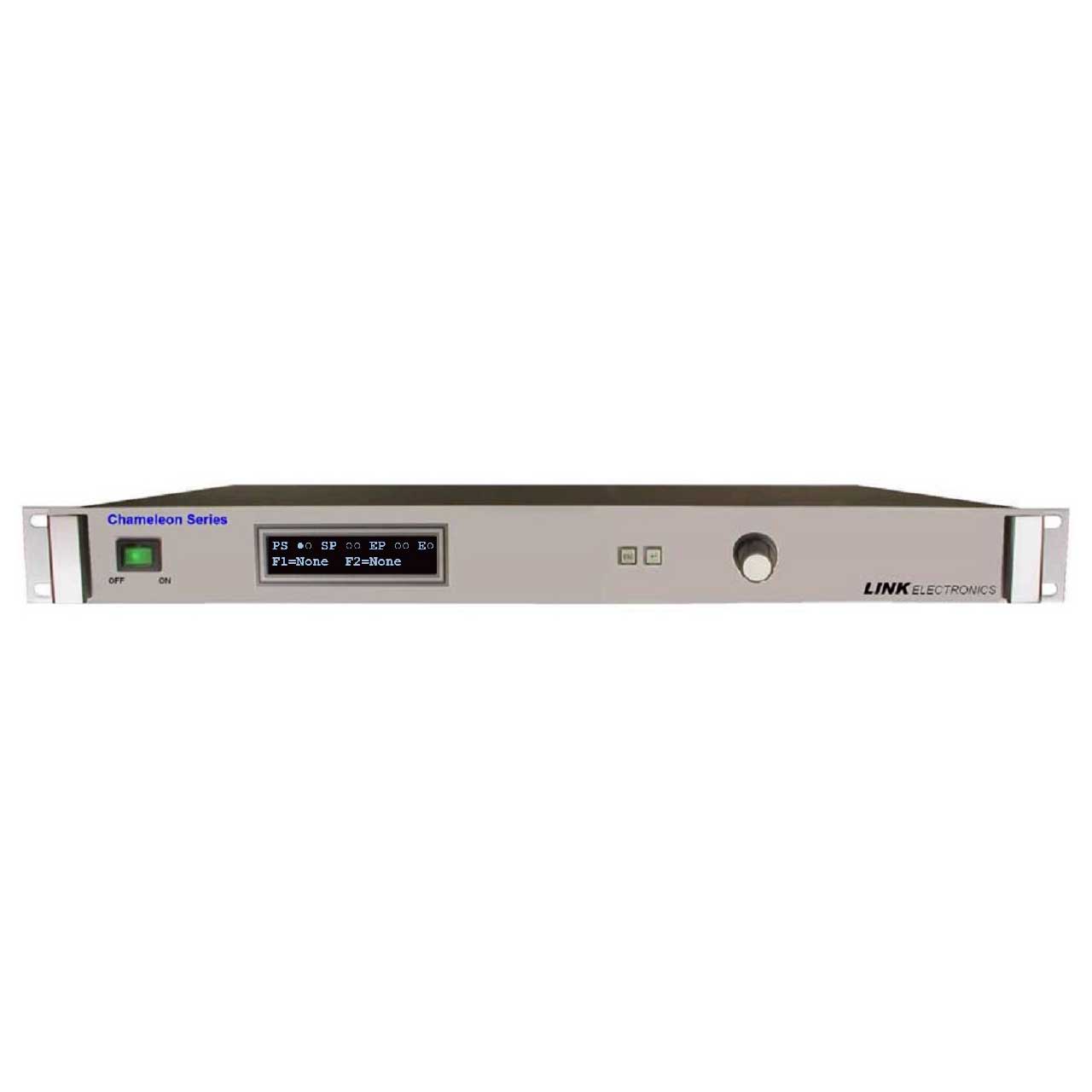

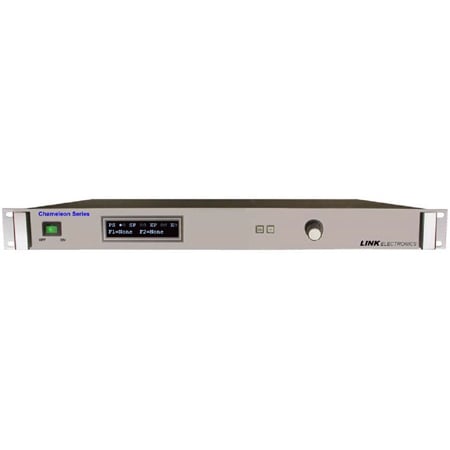

Link Electronics SCE-492 3GB/HD/SD-SDI Closed Caption Encoder

ITEM #: LEI-SCE-492 MFG #: SCE-492

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$8,500.00

Our Price:

$7,444.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    SCE-492 - Overview

    Introducing the SCE-492, on this new encoder the SDI outputs are re-clocked making the SDI output eye pattern generally better than the input. It is a better re-clocker than most re-clocking Distribution Amplifiers (DA). It has RAM that is reserved for XDS packets, the packets will be inserted into CEA-608 field 2 based on XDS packet priority and field 2 availability. The unit also has XDS menus for Parental Guidelines (V-Chip) and Transmission Station Identification (TSID) packets. The RAM can be filled using V-Chip software.

    It has 2 serial RS-232 ports, both with adjustable baud rates. It has 2 Ports that are tunneled to the Ethernet connector. Allowing two IP caption connections at one address. A menu allows you to select resend or redirect data from the Ethernet port to the serial ports. Resend means the unit processes the data and sends the data out. Redirect means the unit sends the data out but does not process the data.

    It has a GPI remote activated Legalizer also called Weather Lift. With a menu that allows you to select the amount of lines to be lifted. You can raise the lower 4 lines up 2, 3, or 4 lines or raise all lines to the top 4 lines. Recently the FCC has mandated that captions are not to be displayed over things like people's names, school closings, and so on. So this has become a major issue with broadcasters.

    The SCE-492 SDI closed caption encoder dubbed "Superior Encoder" is the second unit to be launched in the Chameleon Series. The idea of the Chameleon Series is that one product can be configured into many different units just by changing the software. Similar to a chameleon changing color based on its environment hence the name Chameleon Series.

    • Features:

      • SD/HD/3G SI
      • XDS RAM (V-Ch)
      • Re-clocked Output
      • GPI Remote "Legalizer"
      • 2 CEA-708 Services Convertd from 60
      • Field Upgradeable
      • VANC Line Selection
      • Decodes CC1-CC4 or S1-S6
      • Caption Data Recovery
      • Optional Dual Supplies
      • IP Captioning
      • Power off Bypass
      • 4 Port Communications 2 Serial IP
      • IP to Serial Rerouting

    • Specifications:

      • 3G/HD/SD Video Input
      • SMPTE: S274 (1080P, 1080I, 1080S), S296 (720P), and S259 (NTSC & PAL)
      • Number of Inputs: One
      • Connectors: BNC True 75 Ohm
      • Equalization: Automatic, Approx. 100 feet at 1.5 Gb/s, Approx. 500 feet at 270 Mb/s

      • 3G/HD/HD Video Output
      • Standard: Same as input
      • Number of Output: Three, One Power By-pass Protected
      • Connectors: BNC True 75 Ohm
      • Signal Level: 800 mV, nominal
      • DC Offset: 0 Volts, +/- 0.5 V
      • Rise Time: 200pS, Nominal
      • Overshoot: <10%
      • Timing Jitter: <1.0U
      • Wideband Jitter: <0.2UI

      • Communications
      • Serial Ports: Two RS-232
      • Modem: One external, Optional
      • Ethernet: One, RJ-45 Connector, IEEE

      • Environmental
      • Temperature 0 to 50 C ambient
      • Humidity 10% to 90% non-condensing
      • Power 50 Watts

      • Mechanical
      • Depth 9 Inches
      • Height: 1.75 Inches
      • Width 19 Inches
      • Weight 4 Pounds

      • Front Panel LED Indicators
      • Power: Dual

    • Warranty:

      • 10 years
